200MHz to 3GHz Double Ridged Broadband Waveguide Horn Antenna N-Female200MHz to 3GHz Double Ridged Broadband Waveguide Horn Antenna (Upgraded from HA-02M03G-NF)
Fei Teng Wireless - Horn Antenna Specialist
10 out of
10
-
Description & Specification

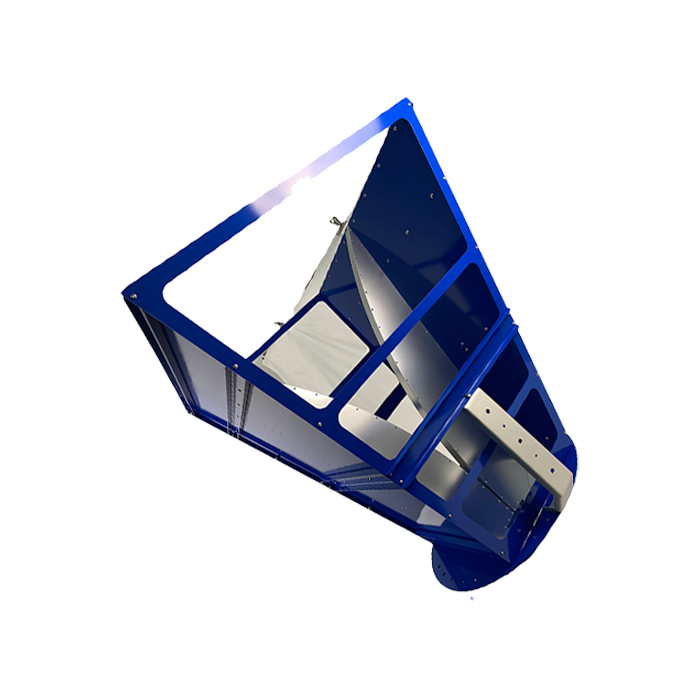

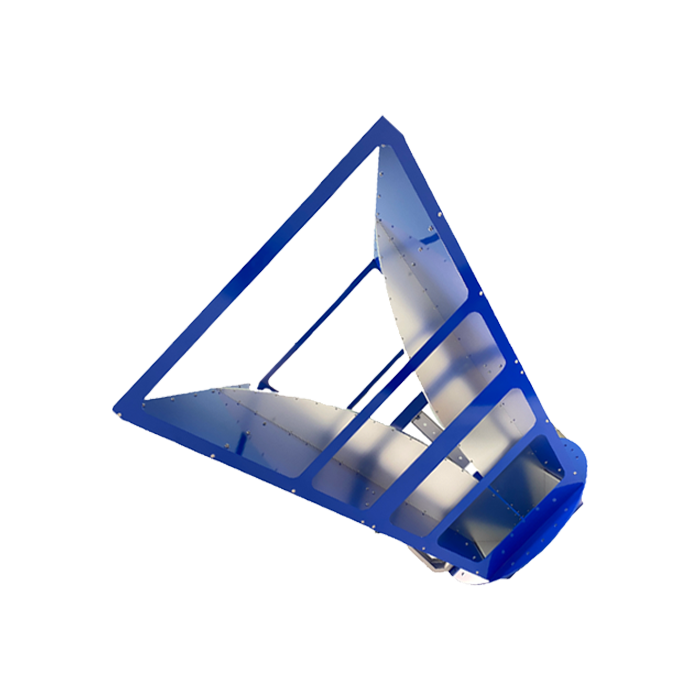

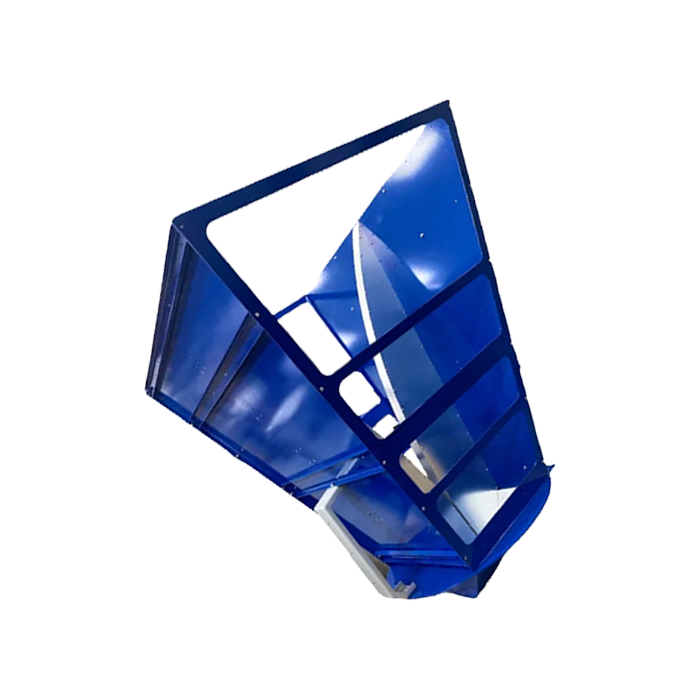

200MHz to 3GHz Double Ridged Broadband Waveguide Horn Antenna
Broadband Precision | 3 dBi to 12 dBi Gain | Model: HA-02M03G01-NF
The HA-02M03G01-NF is a high-power Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Serving as the advanced upgraded generation of the HA-02M03G-NF, it operates across the 200MHz to 3GHz frequency spectrum, delivering directional gain profiling from 3 dBi to 12 dBi with low average VSWR of 2.0:1 and high power handling of 600W. Fabricated from precision 6061 aluminum metal alloy with a total weight of 15 kg and fitted with a high-precision Stainless Steel N-Female connector, this antenna supports integrated DC Short lightning protection. It serves as an essential measurement standard for EMC/EMI laboratory compliance, wideband surveillance, radar testing, and chamber calibration.
Technical Specifications
| Frequency Range | 200MHz - 3GHz |
| Antenna Type | Double Ridged Horn (Upgraded from HA-02M03G-NF) |
| Nominal Gain | 3 dBi - 12 dBi |
| VSWR | 2.0:1 avg |
| Power Handling | 600W |
| Impedance / Lightning Protection | 50 Ω / DC Short Protection |
| Front to Back Ratio (FBR) | 19 dB - 22 dB avg |
Mechanical & Physical Data

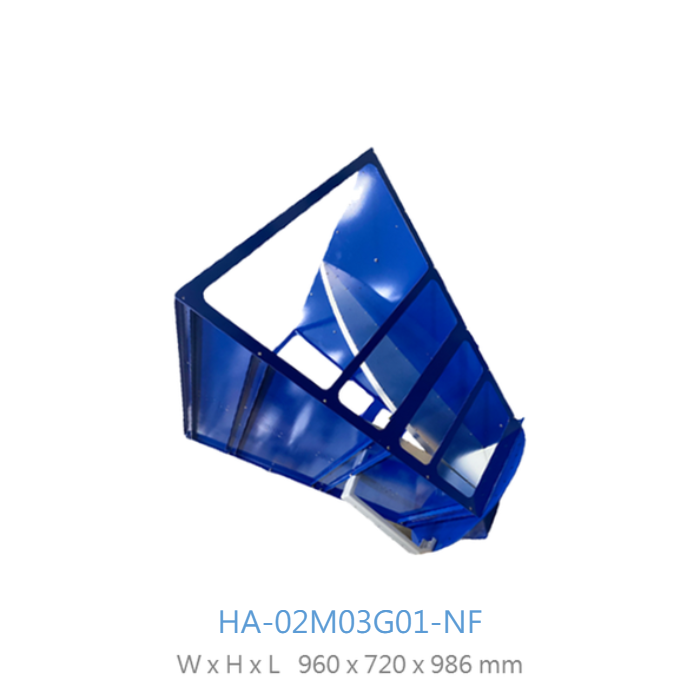

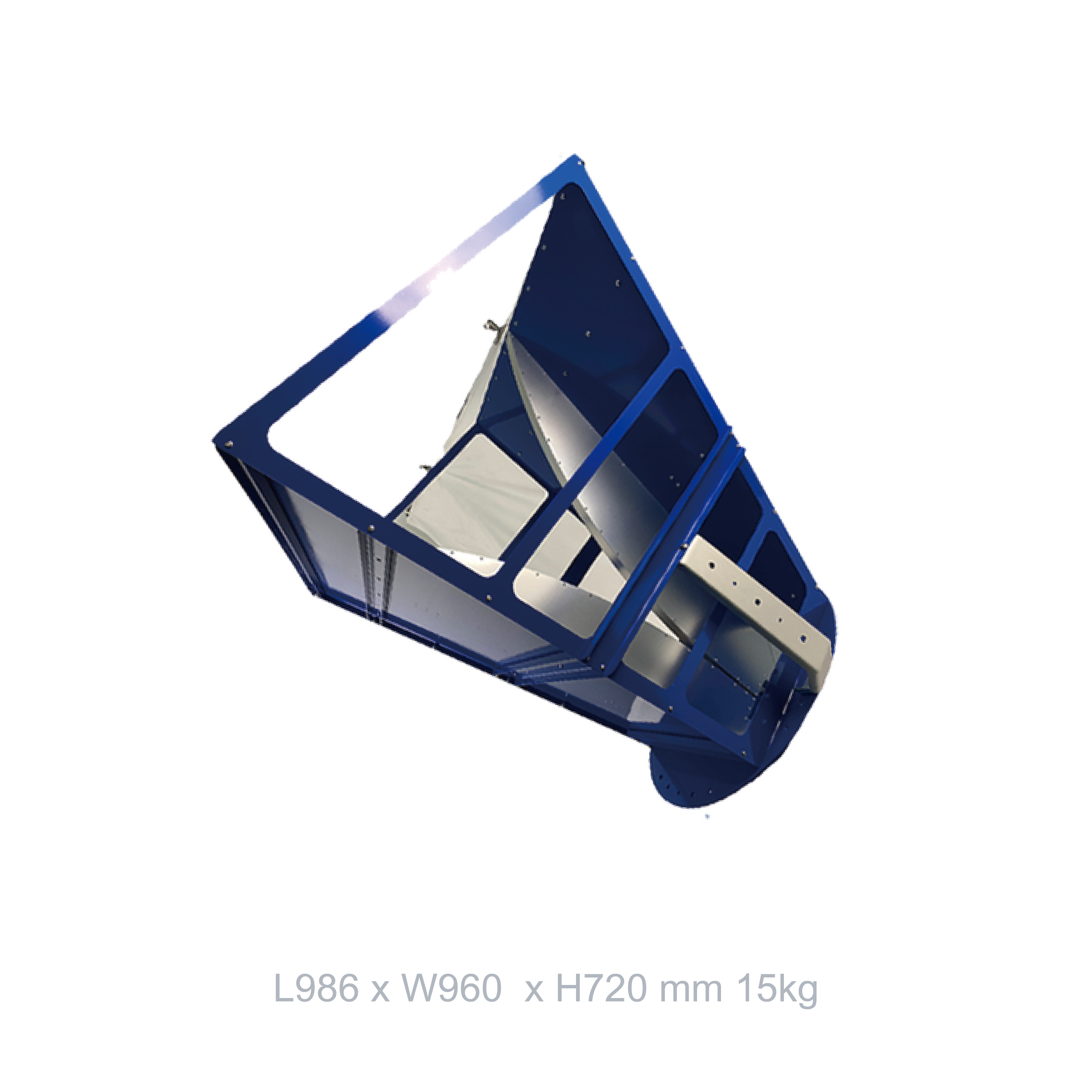

| Dimensions (L x W x H) | 986 x 960 x 720 mm |
| Weight | 15 kg |
| Connector | Stainless Steel N-Female |
| Body Material | 6061 Aluminum Metal Alloy |
| Country of Origin | Taiwan |
Gain Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
Broadband 200MHz-3GHz
Provides continuous wideband coverage across VHF, UHF, and microwave frequencies for rigorous emission testing.
High Power 600W Rating
Delivers robust 600W RF power handling capacity with integrated DC Short lightning protection.
Precision Stainless Connector
Equipped with a rugged Stainless Steel N-Female interface ensuring low insertion loss and durability.
Precision Aluminum Build
Machined from 6061 aluminum alloy with structural reinforcements, compliant with RoHS, WEEE, CE, and FCC standards.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
