OMNIDIRECTIONAL REFERENCE CALIBRATION ANTENNAS

Precision Sleeve Dipole Antennas (SL)

The SL Series Precision Sleeve Dipole Antennas are high-precision omnidirectional reference antennas engineered for range calibration, site attenuation verification, and wireless device testing. Featuring an advanced end-fed sleeve dipole architecture, these antennas isolate the feeding coaxial cable to eliminate cable and feed point reflections that typically degrade radiation symmetry and measurement accuracy.

Each SL Series antenna exhibits a standard 50 Ω nominal impedance, an electric dipole pattern that closely matches a theoretical half-wave resonant dipole, and individual calibration data including Gain, VSWR, maximum ripple, and measurement uncertainty values.

*Custom frequency bands, low-loss cable integration, and individual calibration certificates are available upon request.

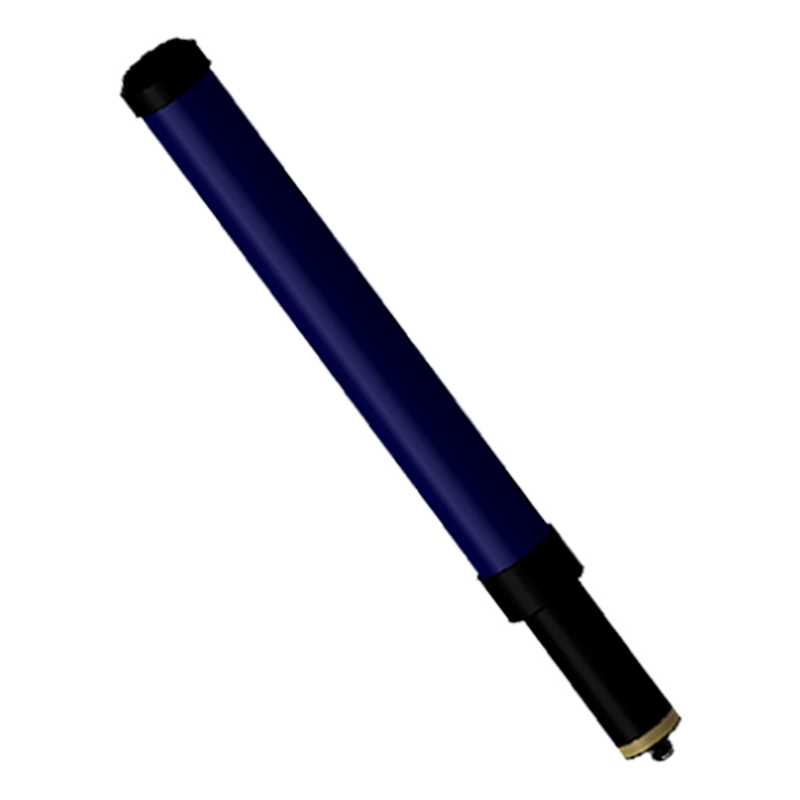

SL Series Precision Sleeve Dipole Antenna Photo

⚡ Next-Gen Engineering Highlights

360° Omnidirectional Pattern

Produces an electric dipole radiation pattern resembling a half-wave resonant dipole with uniform azimuth coverage.

End-Fed Cable Isolation

Specialized sleeve construction enables end-feeding while decoupling cable and feed point interactions to minimize radiation distortion.

Calibrated Reference Accuracy

Every unit is delivered with individual calibration reports detailing Gain, VSWR, maximum ripple, and measurement uncertainty.

Wireless Device Spectrum

Tailored frequency coverage optimized for precise gain calibration across cellular, Wi-Fi, and IoT wireless bands.

Key Operational Applications:

Range & Chamber Calibration Wireless Device Band Testing Site Attenuation Verification EMC / EMI Compliance Testing Omnidirectional Signal Monitoring Reference Dipole Measurement

Key Technical Parameter	SL Series Specification Overview
Frequency Range	Multi-Band Options Covering Wireless Device Spectrum
Radiation Pattern	360° Omnidirectional Electric Dipole Field
Impedance & Max Power	50 Ω Nominal / 1 Watt Maximum Continuous CW Power
RF Input Connectors	Precision SMA Female Interface (N-Type Female Optional)
Calibration Deliverables	Individual Gain, VSWR, Max Ripple & Uncertainty Data

360° Omnidirectional Dipole End-Fed Cable Isolation Calibrated Reference Standard

🛠️ Customization & Engineering Services

We provide tailored antenna engineering and calibration services for specific test environments:

Custom Frequency Bands: Tailored dipole lengths for specific ISM or commercial bands.
Calibration Certificates: Traceable individual calibration data sets and reports.
Low-Loss Extension Feeds: Custom phase-matched coaxial assemblies.
Chamber Mounting Adapters: Custom low-reflection mounting fixtures.

Direct Technical Support: info-tw@ft168.com.tw
