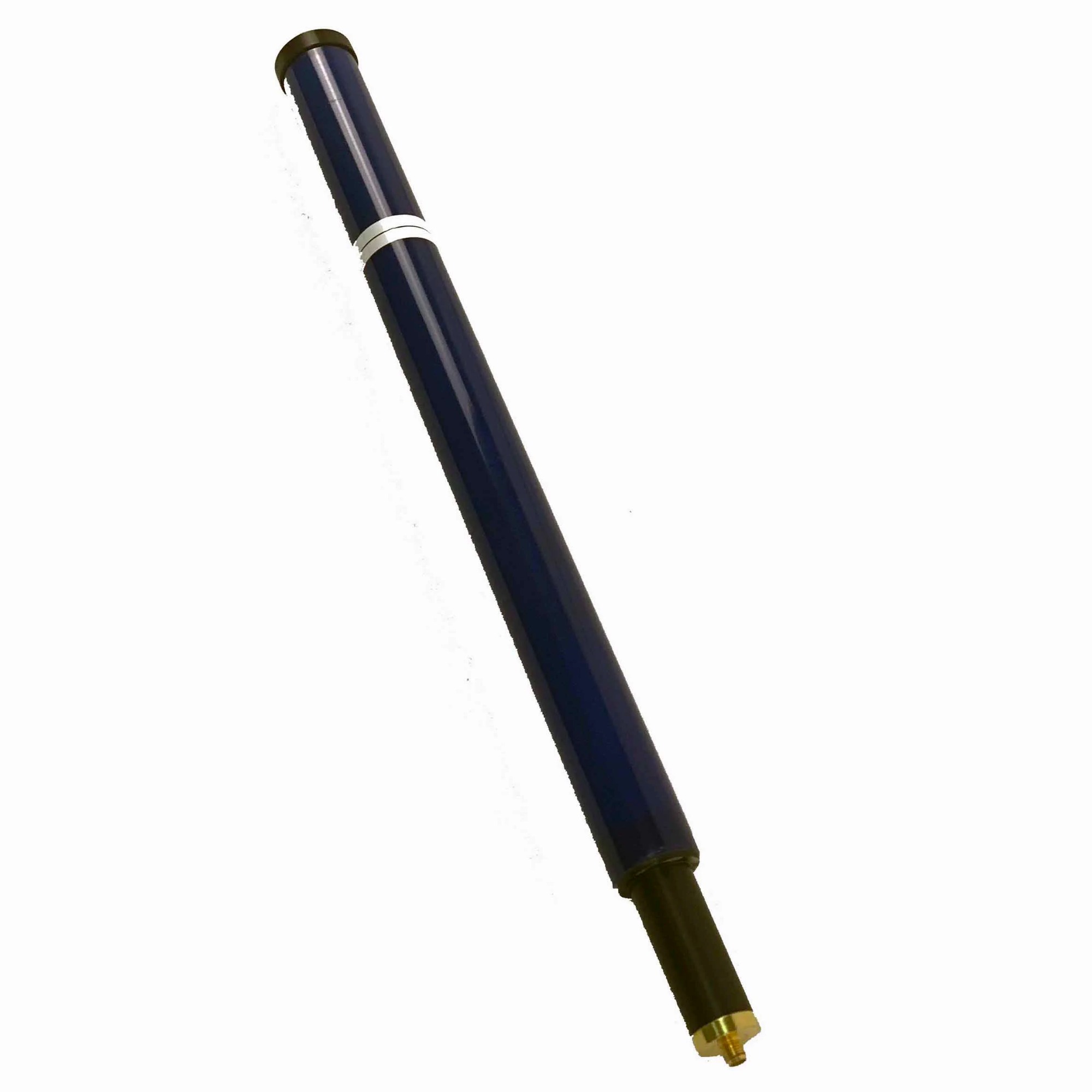

UHF Precision Sleeve Dipole Antenna
Model: SL-500-SF | 400 MHz - 600 MHz | Calibration Reference Grade
The SL-500-SF is a laboratory-standard Reference Antenna specifically designed for OTA (Over-The-Air) testing and range calibration within the 400 MHz to 600 MHz band. Engineered for superior symmetry and stability, it serves as the definitive reference for gain measurements and chamber reflectivity evaluation. Its specialized sleeve design isolates the feed cable from the radiator, preventing pattern distortion and ensuring the Signal Integrity required for mission-critical CTIA ripple test compliance.
Technical Specifications
| Frequency Range | 400 MHz to 600 MHz |
| Nominal Gain | 2.15 dBi ± 1 dBi |
| Antenna Type | Precision Sleeve Dipole (Omnidirectional) |
| Radiation Symmetry | ± 0.1 dB (CTIA Requirement) |

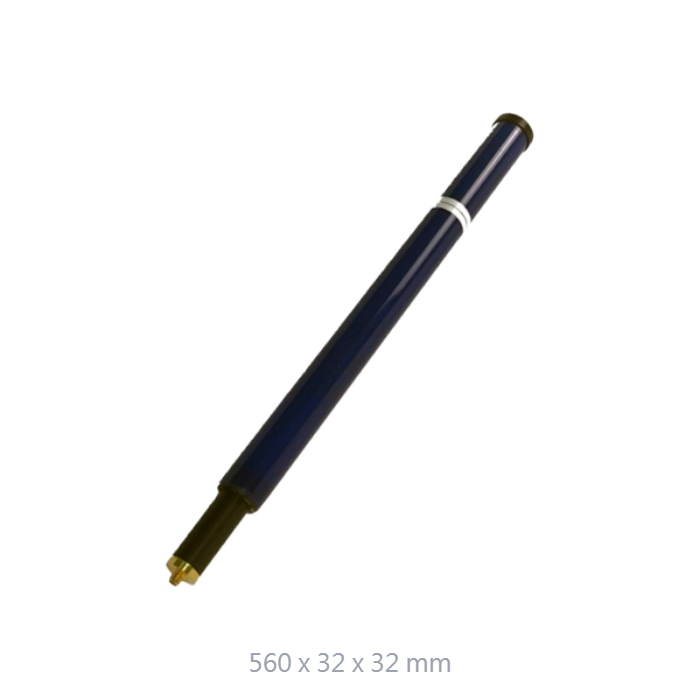

| Dimensions | 560 x 32 x 32 mm |
| Net Weight (N.W.) | 380 g |
| Connector Interface | SMA-Female (Standard) / N-Female (Custom) |
Key Tactical & Lab Features
CTIA Symmetry Dominance
Meets strict +/- 0.1 dB symmetry standards, providing the high-level precision necessary for ripple test measurements and calibration certification.
Superior Cable Isolation
The sleeve balun architecture avoids feed point and cable contact interference, ensuring radiation effectiveness remains predictably constant.
Range Calibration Reference
Optimized as a low-gain efficiency reference for evaluating chamber reflectivity and calibrating tactical UHF monitoring systems.
Industrial Grade Construction
Combines a lightweight 380g build with a rugged, professional design suitable for permanent mounting in anechoic test facilities.
Get a Quote / Custom RF Solutions
Contact our engineering team for full calibration data, VSWR plots, or customized N-Type connector configurations.
