Description & Specification

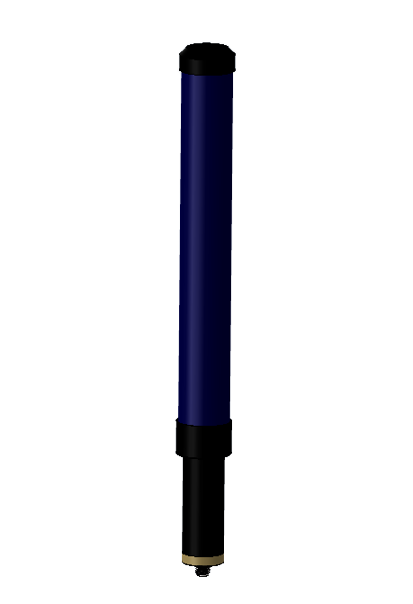

5G NR / CBRS Precision Reference Antenna
Model: SL-3600-SF | 3500 MHz - 3700 MHz | CTIA Symmetry Compliant
Core Specifications
| Frequency Range | 3500 MHz to 3700 MHz |
| Nominal Gain | 2.15 dBi ± 1 dBi |
| Pattern Symmetry | ± 0.1 dB (CTIA Compliance) |

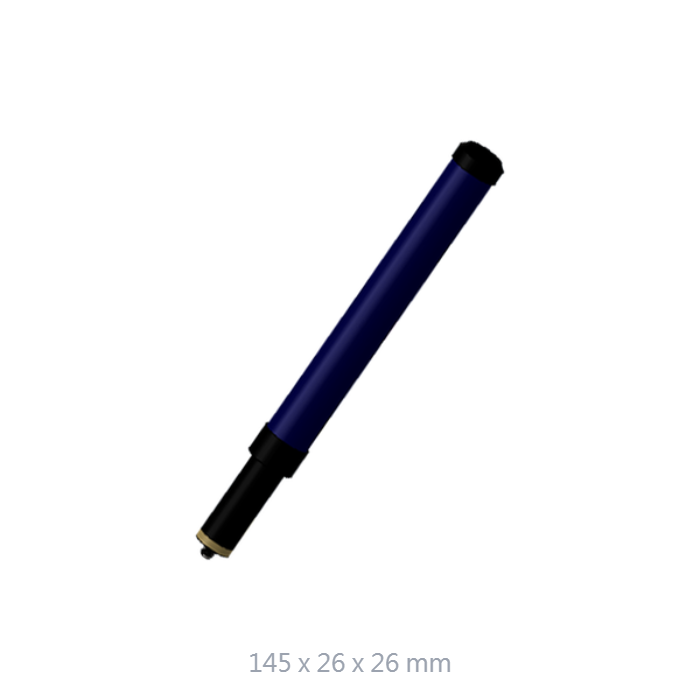

| Dimensions (LxWxH) | 145 x 26 x 26 mm |
| Net Weight (N.W.) | 100 g |
Key Tactical Features
CTIA Symmetry Precision
Meets rigorous +/- 0.1 dB symmetry standards for high-level accuracy in ripple test measurements and chamber evaluation.
Cable Interference Mitigation
The specialized sleeve design prevents feed cable contact from interfering with antenna effectiveness, ensuring pure toroidal patterns.
Reference Grade Dominance
Serves as a reliable gain reference and low-gain efficiency standard for calibrating high-frequency monitoring sub-systems.
Ultra-Lightweight Design
Optimized for precision positioning towers with a durable fiberglass radome and professional aesthetic.
