5G NR Precision Reference Antenna
Model: SL-3500-SF | 3450 MHz - 3800 MHz | CTIA Symmetry Compliant
The SL-3500-SF is a laboratory-standard Precision Sleeve Dipole radiator specifically engineered for OTA performance testing and 5G mid-band anechoic chamber calibration. Engineered to meet strict CTIA +/- 0.1 dB symmetry standards, it ensures the radiation pattern remains exceptionally uniform for professional ripple test measurements. Its specialized sleeve balun isolates the feedpoint from cable-induced interference, guaranteeing the Signal Integrity required for professional Signal Defense gain references and low-gain antenna efficiency characterization.
Technical Specifications
| Frequency Range | 3450 MHz to 3800 MHz |
| Nominal Gain | 2.15 dBi ± 1 dBi |
| Pattern Symmetry | ± 0.1 dB (CTIA compliant) |
| Antenna Type | Sleeve Dipole (Reference Grade) |

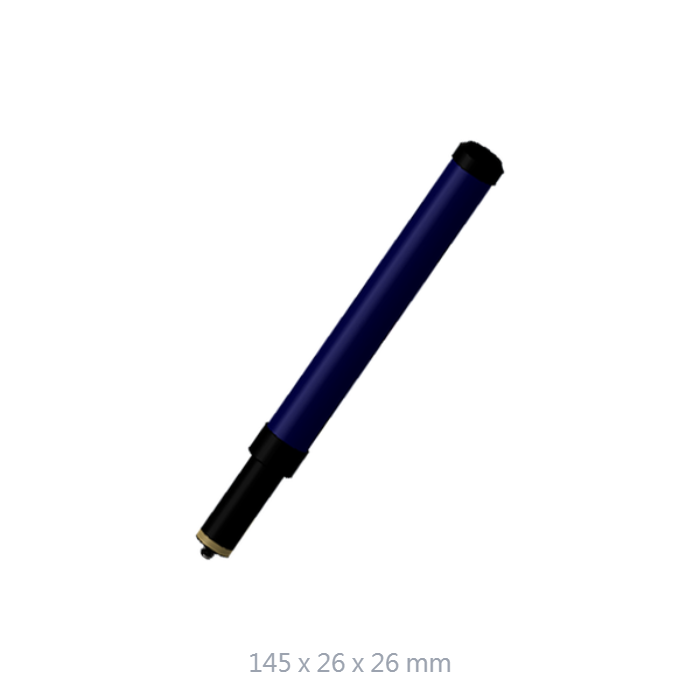

| Dimensions (LxD) | 145 x 26 mm |
| Net Weight (N.W.) | 100 g |
| Standard Connector | SMA-Female (N-Female Custom Available) |
Key Tactical & Lab Features
CTIA Symmetry Precision
Engineered to meet rigorous +/- 0.1 dB symmetry requirements, providing high-level accuracy for OTA chamber reflectivity evaluation and professional ripple tests.
Feed Point Contact Isolation
The specialized sleeve design prevents the feed cable from interfering with the antenna's effectiveness, ensuring a pure toroidal radiation pattern.
Reference Grade Dominance
Serves as a reliable gain reference and low-gain efficiency standard for calibrating 5G NR/Sub-6GHz monitoring systems and electronic protection equipment.
Ultra-Lightweight Design
Weighing only 100g, its professional aesthetic and compact profile allow for easy integration into precision 3D positioning towers and fiber-optic masts.
Get a Quote / Custom RF Calibration
Contact our engineering team for full calibration data sheets, VSWR plots, or specialized mounting hardware requirements for your anechoic facility.
