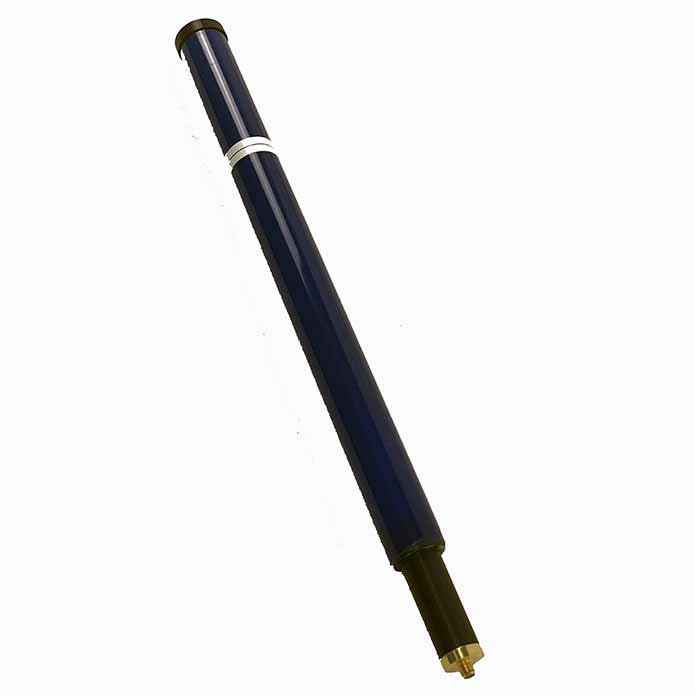

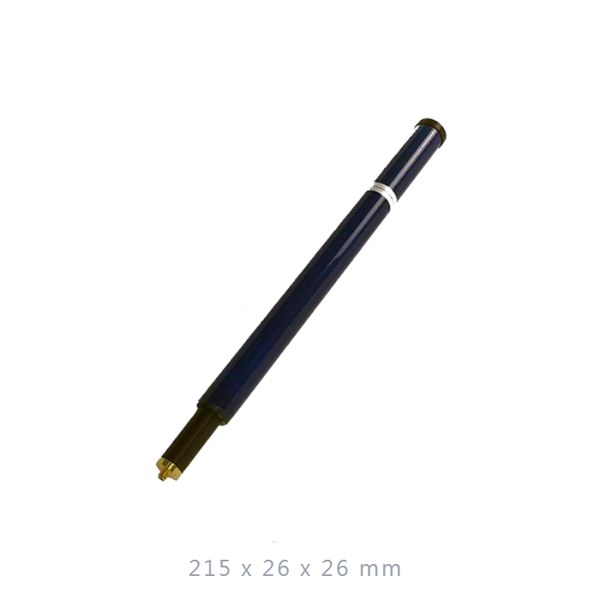

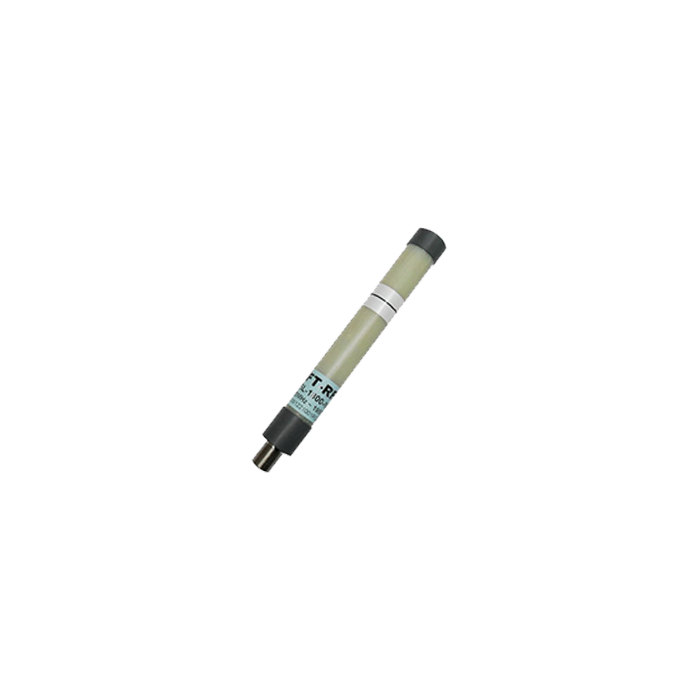

- SL-1800-SF, 1650 MHz to 1950 MHz Precision Sleeve Dipole Antenna, SMA-Female Connector
- Gain reference, low gain antenna efficiency reference, and chamber reflectivity evaluation
Features:
- Superior performance
- Lightweight
- Good appearance design
- Precision Gain for Range Calibration
- Avoid interfering with the antenna's effectiveness by avoiding cable and feed point contacts.
- (CTIA) +/- 0.1 dB symmetry requirement for ripple test measurements.
Electrical Specifications
|
Frequency Range |
1650 MHz to 1950 MHz |
|---|---|
|
V.S.W.R (MAX) |
3.0 :1 1750MHz to 1850MHz 1.5:1 |
|
Antenna Type |
Collinear |
| Radiation |
Omni Directional |
|
Gain |
2.15dBi (+- 1dBi) 1700 to 1950MHz Round Differences less Than 0.1db 1650 to 1695MHz Round Differences less than 0.15db |
|
Polarization |
Vertical |
|
Maximum Power |
150 Watts |
|
Vertical Beam-width |
68 Deg |
|
Horizontal Beam-width |
360 Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
1/4 Wavelength Sleeve Dipole |
|
Internal Material |
Copper |
|
Connector |
SMA-Female |
Mechanical Specifications
|
Length |
215 mm |
|---|---|
|
Diameter |
26mm (Round) |
|
Antenna Weight |
140 g |
|
Accessories |
60g |
| Application |
Indoor / Outdoor |
|
Radome Material |
Fiberglass |
|
Parts Material |
PVC |
| Mount Style |
Round 19mm / Hollow 13mm |
| Mounting |
Acrylic |
|
Wind Survival |
NO |
|
Storage Temperature |
-20 to +80 |
| Operating Temperature |
-20 to +60 |
| Operating Humidity |
10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
CE, FCC, RoHS,CTIA |
