WR159 Waveguide Input Antenna (WI Series)
- Select
WI Series • C-Band (4.90 – 7.05 GHz)
FT-RF WR159 Waveguide Input Antenna
FT-RF WR159 Waveguide Input Antennas feature direct WR159 rectangular flange feeds across C-band spectrums (4.90 GHz to 7.05 GHz). Manufactured from high-grade aluminum, they deliver reliable gain calibration and stable linear polarization for 5G N77/N78 sub-6GHz testing, C-band satellite feeds, and microwave link evaluations.
Built with precision electroformed/machined flares and standard CPR159F cover flanges, WR159 input horns serve as high-efficiency feeds and reference antennas in satellite ground stations and anechoic chambers.
🛠️ Engineering & Customization Options
Tailored structural designs and custom bracket options:
- Custom Dimensions: Tailored flare lengths & holes.
- Phase-Matched Sets: Gain and phase matched pairs.
- Chamber Brackets: Low-reflection mounting plates.
Direct Support: info-tw@ft168.com.tw
| Parameter | Technical Specifications |
|---|---|
| Frequency Range | 4.90 GHz to 7.05 GHz (C-Band) |
| Input Interface | Direct WR159 Waveguide Flange Feed |
| Available Gain | 10 dBi, 15 dBi, 20 dBi, 25 dBi |
| Flange Configuration | CPR159F / FDP58 Cover Flange |
| Certifications | ISO 9001:2015 / RoHS Compliant |
WI-159-UDR-25
WR159 Waveguide, 4.9 to 7.05GHz, 25dbi Waveguide Horn Antenna, Flange: UDR
View Details
FT-RF
| Frequency Range: | 4.90 - 7.05 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 25 dBi (8°×8°) |
| Waveguide Size: | WR-159 (C-Band) |
| Stock: | 0 |
| 2026/06/17 | |
WI-159-UDR-20
WR159 Waveguide, 4.9 to 7.05GHz, 20dbi, Waveguide Horn Antenna, Flange: UAR
View Details
FT-RF
| Frequency Range: | 4.90 - 7.05 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 25 dBi (8°×8°) |
| Waveguide Size: | WR-159 (C-Band) |
| Stock: | 0 |
| 2026/06/17 | |

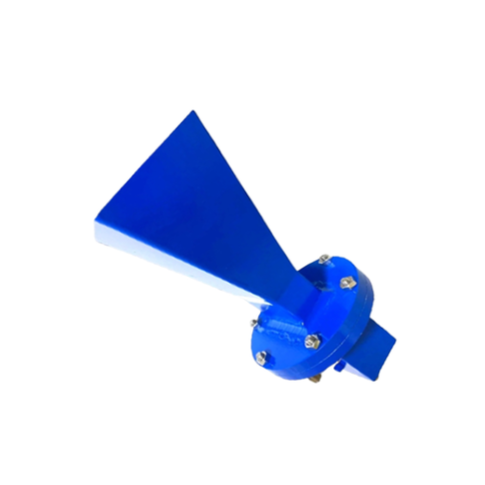

WI-159-UAR-10
WR159 4.9 GHz to 7.05 GHz 10dbi Waveguide Horn Antenna without Adapter, UAR Flange
View Details
FT-RF
| Frequency Range: | 4.9 - 7.05 GHz |
| Waveguide Type: | WR-159 (C-Band) |
| Nominal Gain: | 10 dBi |
| Flange Type: | UAR / Type 01 |
| Stock: | 3 |
| 2026/06/09 | |
WI-159-UAR-20
WR159 4.9GHz to 7.05GHz 20dbi Waveguide Horn Antenna without adapter, UAR Flange
View Details
FT-RF
| Frequency Range: | 4.9 - 7.05 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 20 dBi |
| Waveguide Size: | WR159 |
| Stock: | 6 |
| 2026/06/09 | |
