Description & Specification

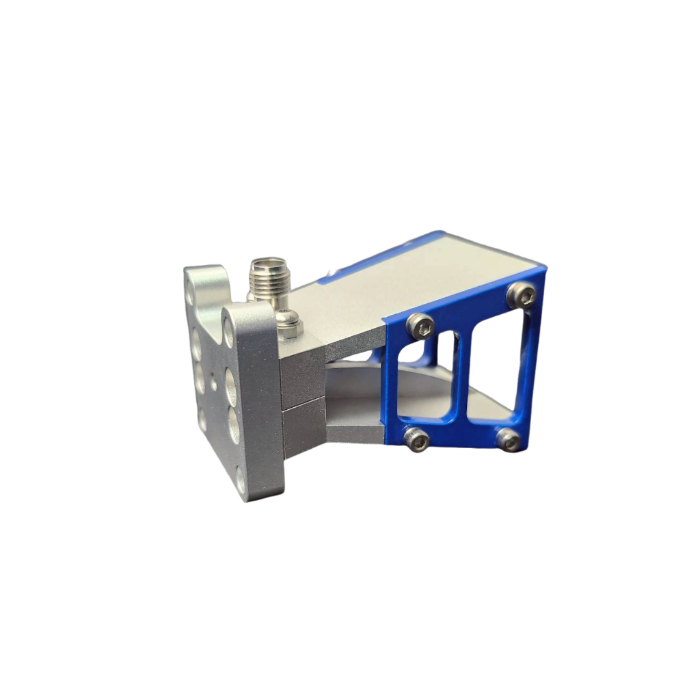

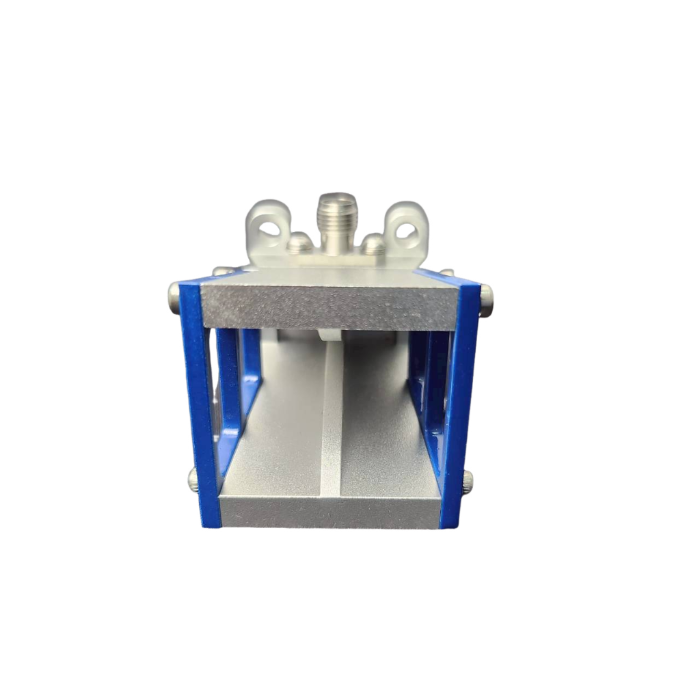

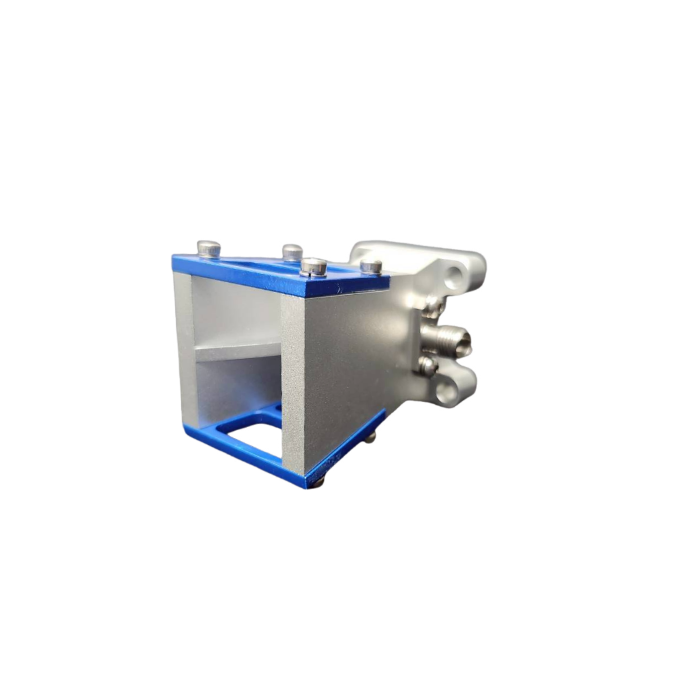

5 GHz to 43.5 GHz K-Female Double Ridged Broadband Waveguide Horn Antenna
Ultra-Wideband | Precision Millimeter-Wave Design | Model: HA-0543GS-KF
The HA-0543GS-KF is a high-performance Double Ridged Broadband Waveguide Horn Antenna designed for professional RF testing across an extensive 5 GHz to 43.5 GHz frequency range. This laboratory-grade antenna provides stable gain (2 to 16 dBi) and exceptional directional performance. Featuring a precision K-Female (2.92mm) connector, it ensures superior signal integrity and minimal loss for millimeter-wave measurements, EMC/EMI testing, and anechoic chamber calibrations. Expertly engineered in Taiwan, its compact and ultra-lightweight design makes it an ideal solution for advanced high-frequency wireless research.
Technical Specifications
| Frequency Range | 5 GHz to 43.5 GHz |
| Antenna Gain | 2 to 16 dBi |
| Max Power (CW) | 25 W |
| Peak Power | 75 W |
| Connector Style | K-Female (2.92mm) |

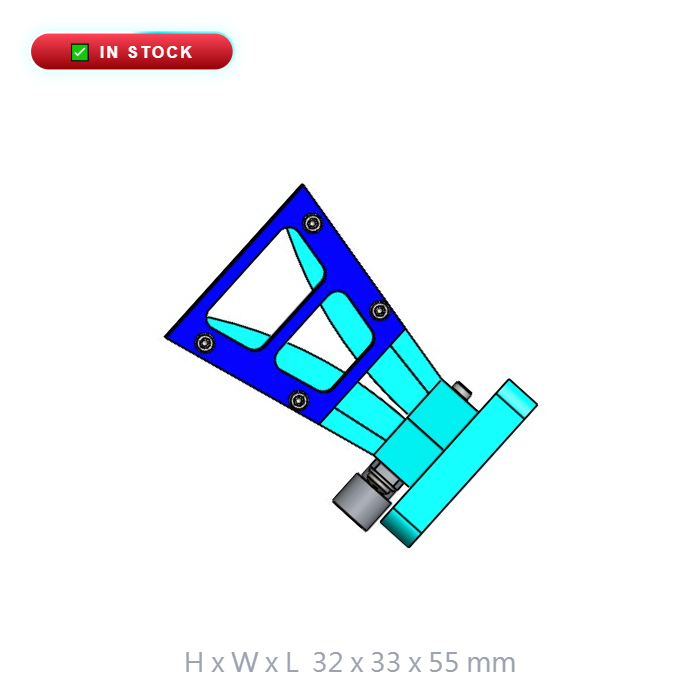

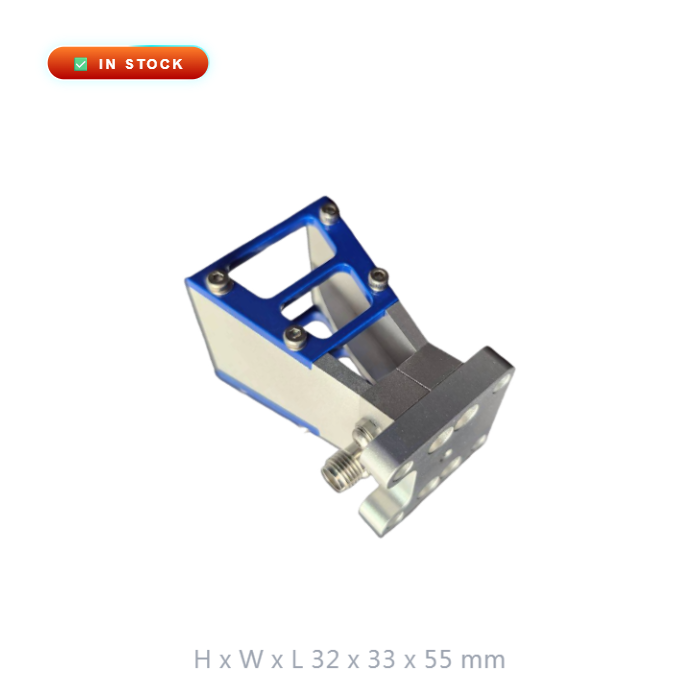

| Dimensions (H x W x L) | 32 x 33 x 55 mm |
| Weight | 55 g |
| Origin | Made in Taiwan |
Ultra-Wideband Continuous Coverage
Seamlessly covers 5 GHz to 43.5 GHz, supporting 5G, satellite communications, and high-frequency microwave system analysis.
Precision K-Type Interface
Equipped with a high-grade 2.92mm (K) connector to ensure stable connectivity and low VSWR across high-frequency bands.
Compact & Ultra-Lightweight
Weighing only 55g with a compact footprint, it is designed for easy integration into precision probe stations and portable test setups.
Optimized physical geometry reduces interference, ensuring pure radiation patterns for professional high-frequency measurements.
