2GHz to 18GHz Double Ridged Broadband Waveguide Horn Antenna N-Female
FT-RF Horn Antenna
10 out of
10
-
Description & Specification
2GHz to 18GHz Double Ridged Broadband Horn Antenna
Premium Solution for Microwave Measurement & EMC Testing
The 2GHz to 18GHz Double Ridged Broadband Waveguide Horn Antenna is a precision instrument designed for both high-power transmission and sensitive reception. Crafted from 6061 Aluminum alloy with a stainless steel N-female connector, it delivers a high gain of up to 17 dBi. This antenna is particularly optimized for EMC/EMI pre-compliance testing, allowing designers to identify and resolve interference issues early in the design phase, significantly reducing certification costs and time-to-market.
Technical Specifications
Electrical Specifications
[Image of 2-18GHz broadband horn antenna radiation pattern characteristics]
| Frequency Range | 2 GHz - 18 GHz |
| V.S.W.R | 2.0 : 1 (Average) |
| Antenna Type | Single Polarized Broadband Horn |
| Radiation | Directional |
| Gain | 5 dBi to 17 dBi |
| Antenna Factor | 30 - 42 dB/m |
| Maximum Power | 300W (Peak) / 150W (Continuous) |
| Vertical Beam-width | 37° |
| Horizontal Beam-width | 39° |
| Impedance | 50 Ohm |
| Front-to-Back Ratio (FBR) | 24 dB |
| Connector | N-Female (Stainless Steel) |
Env. & Mechanical

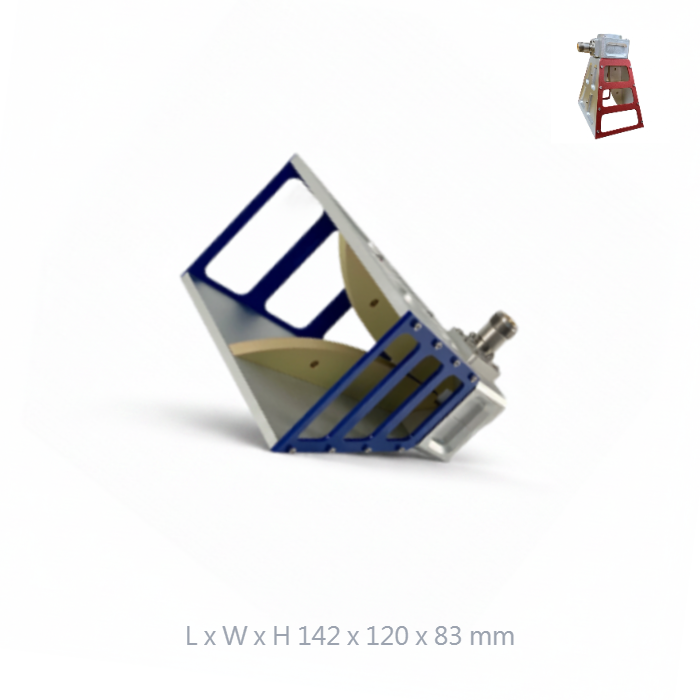

[Image of WRD200 waveguide horn antenna mechanical drawing]
| Dimensions (Diameter) | 120 x 83 mm |
| Length | 142 mm |
| Antenna Weight (N.W) | 500 g |
| Material | 6061 Aluminum Alloy |
| Mounting Options | L-Type Aluminum Bracket (M8, M5, or 1/4 inch) |
| Indexing Ring Mounting | Compatible with 22mm Tube |
| Application | Indoor |
| Operating Temperature | -10°C to +60°C |
| Compliance | RoHS, WEEE, CE, FCC |
Key Features
EMC Pre-compliance Specialist
Identify and fix interference issues during the design phase to avoid costly certification failures.
Identify and fix interference issues during the design phase to avoid costly certification failures.
Uniform Performance
Delivers consistent gain and antenna factor due to superior radiation pattern behavior across the entire band.
Delivers consistent gain and antenna factor due to superior radiation pattern behavior across the entire band.
Broadband High Power
Covers 2GHz to 18GHz with peak power handling up to 300W for versatile testing scenarios.
Covers 2GHz to 18GHz with peak power handling up to 300W for versatile testing scenarios.
DC Short Protection
Integrated lightning protection design safeguards connected measurement instrumentation.
Integrated lightning protection design safeguards connected measurement instrumentation.
Taiwan Engineering
Designed and manufactured in Taiwan using premium 6061 Aluminum for maximum RF integrity.
Designed and manufactured in Taiwan using premium 6061 Aluminum for maximum RF integrity.
Consolidated Data
Performance is backed by a consolidated database for reliable calibration and results analysis.
Performance is backed by a consolidated database for reliable calibration and results analysis.
Contact Us
For quotes, calibration data, or technical support regarding this 2-18GHz Broadband Horn, please contact us:
