Description & Specification
WR90 8.2 to 12.4GHz SMA-Female Streamlined Waveguide Adapter
X-Band Precision Transition | Flange: PBR Type: S1 | Model: WC-090-PBR-S1-SF

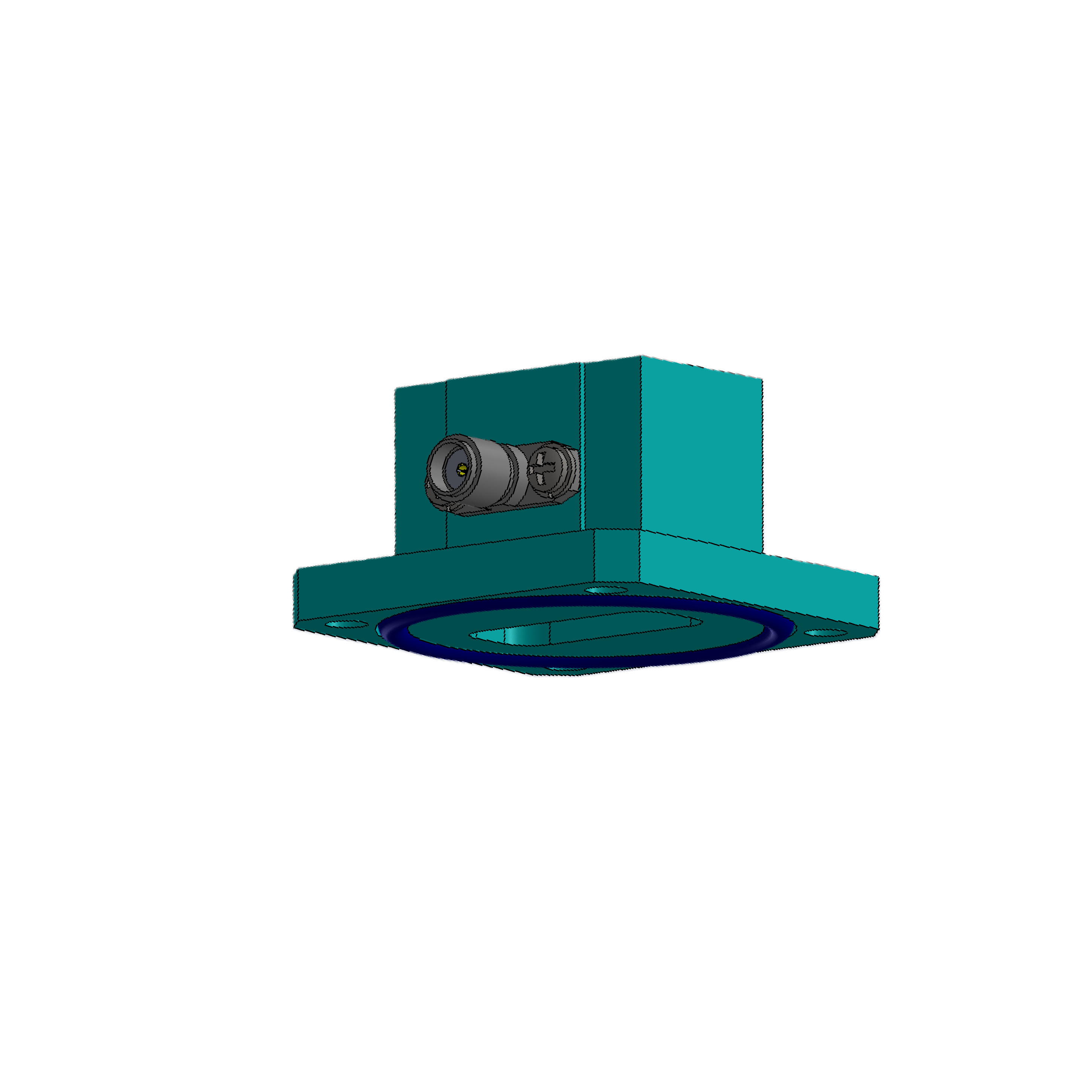

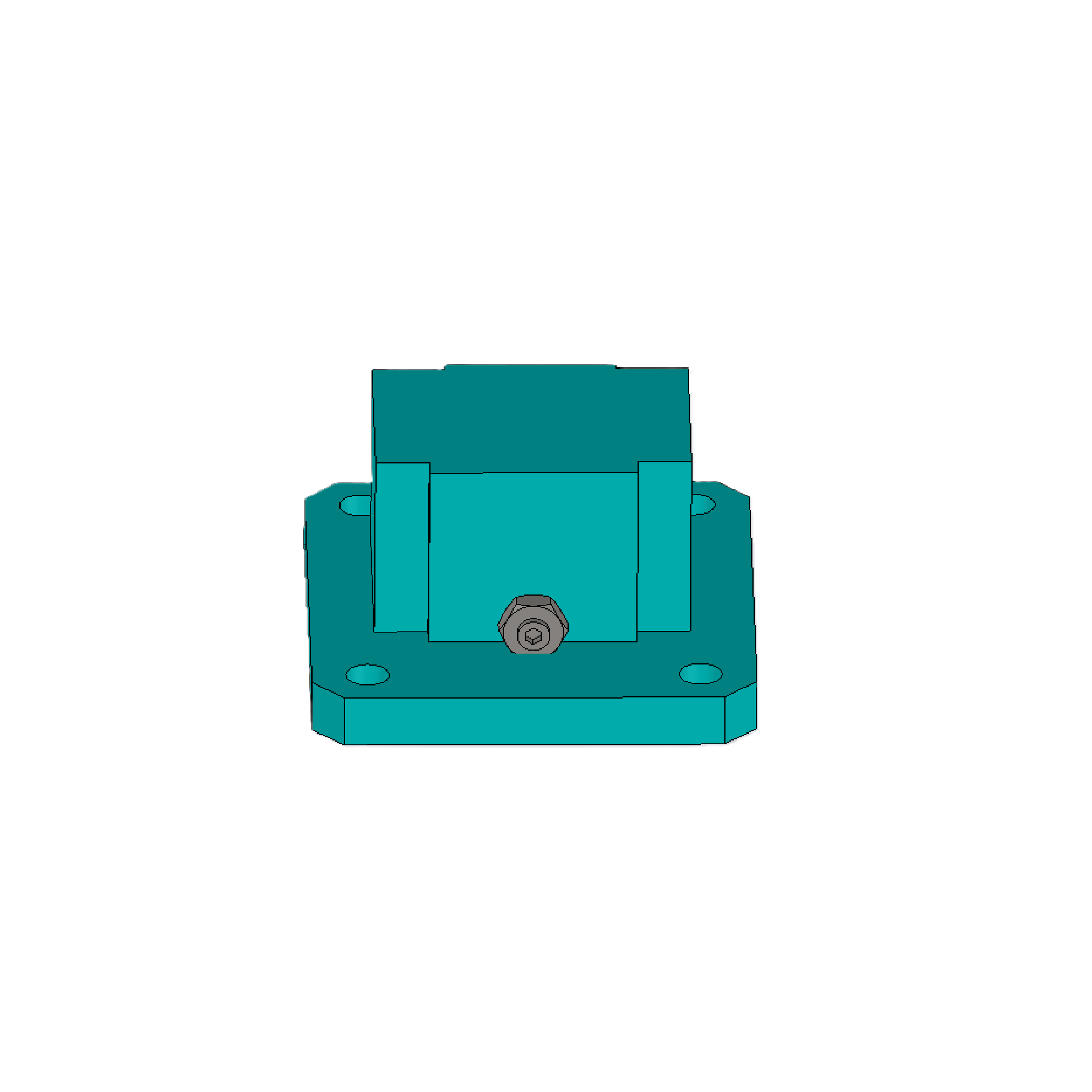

The WC-090-PBR-S1-SF is a streamlined X-band rectangular waveguide to coaxial adapter professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Operating across the 8.2 GHz to 12.4 GHz frequency range, it provides a compact, low-profile transition between standard WR-90 (WG16 / R100) rectangular waveguides and 50-ohm SMA-Female coaxial connections. Built with tight mechanical tolerances, it delivers an insertion loss of only 0.15 dB and a maximum VSWR of 1.25:1. Featuring a pressurized PBR flange with an integrated O-ring groove and waterproof sealing gasket (WG-90-PBR), along with a durable passivated stainless steel SMA-Female interface, it offers robust environmental protection and high RF repeatability for airborne radar, satellite communication ground stations, and outdoor microwave transceivers.
Technical Specifications
| Frequency Range | 8.2 - 12.4 GHz |
| Waveguide Size | WR-90 (WG16 / R100) |
| Flange Type | PBR (Pressurized PBR100 with Gasket Groove) |
| Connector Interface | SMA-Female |
| Impedance | 50 Ω |
| Insertion Loss | 0.15 dB |
| V.S.W.R (Max) | 1.25 : 1 |
| Sealing Protection | Weatherproof / Pressurized Gasket Included |
Mechanical & Physical Data

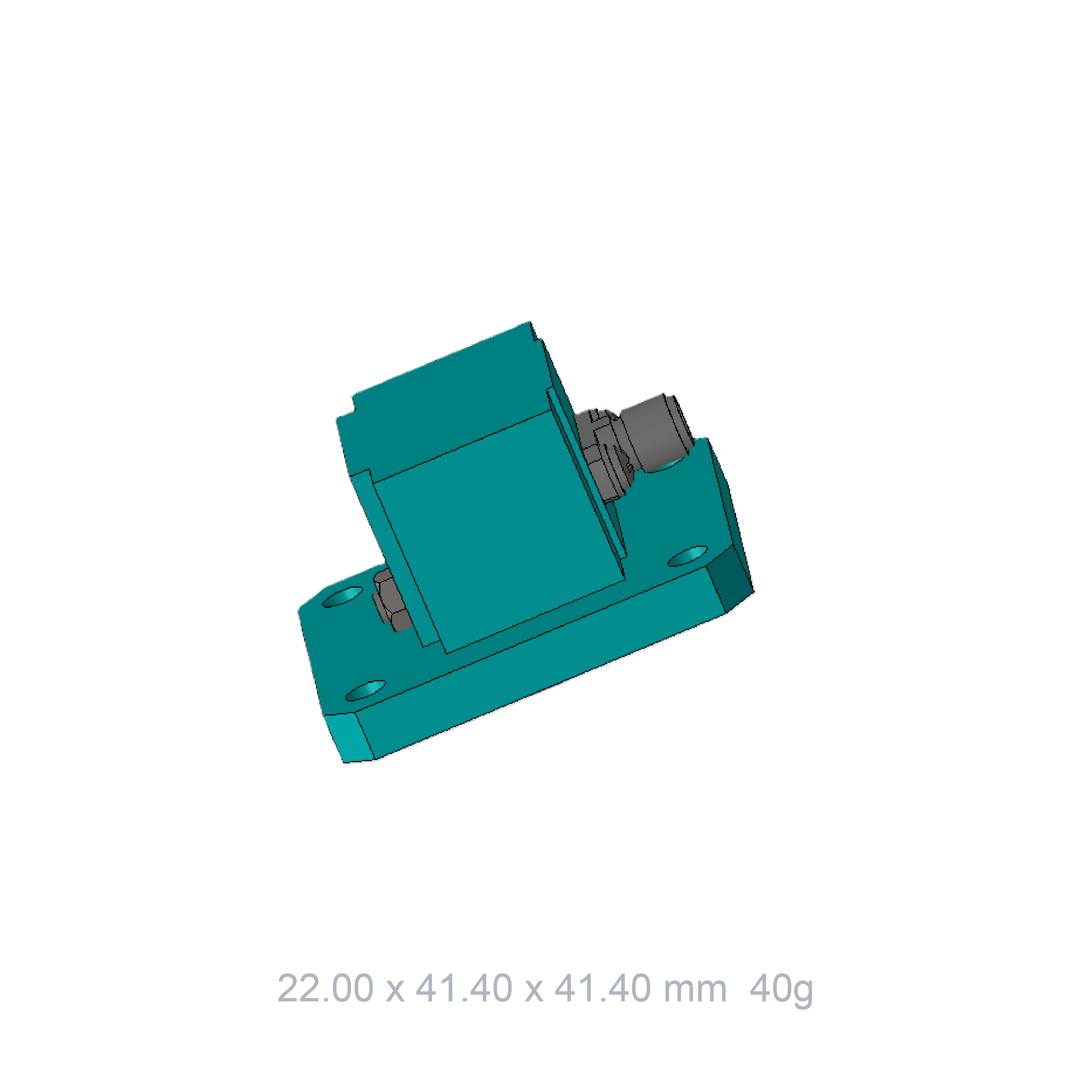

| Dimensions (L x W x H) | 22.00 x 41.40 x 41.40 mm |
| Component Weight | 40 g (Estimated ~41.70 g) |
| Body Material | Precision CNC Aluminum Alloy |
| Connector Material | Passivated Stainless Steel |
| Flange Hole Pattern | 4 x 4.17 mm Thru Holes (30.99 x 32.51 mm Spacing) |
| Included Gasket | WG-90-PBR Waterproof O-Ring Gasket |
| Country of Origin | Taiwan |
Insertion Loss Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Return Loss Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights

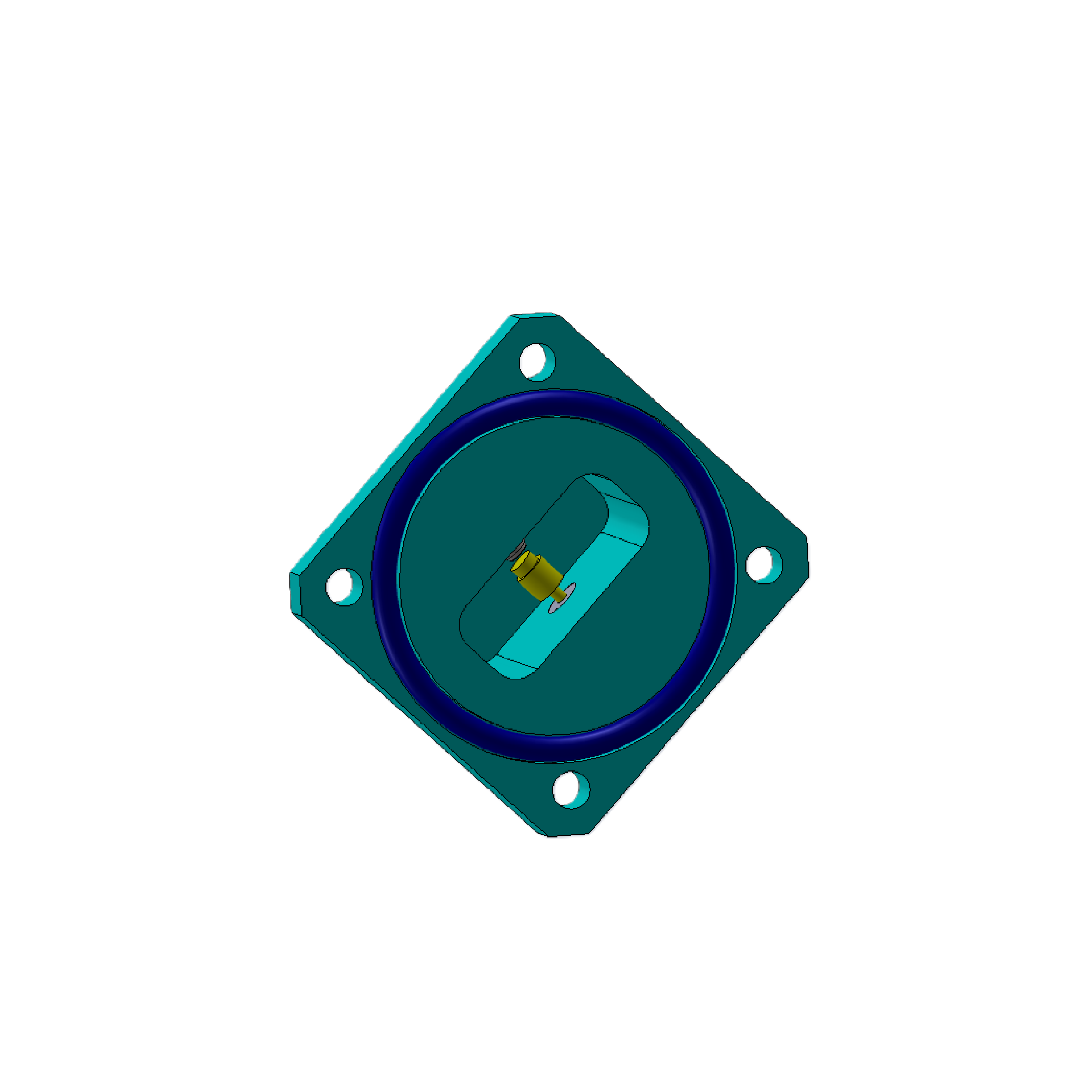

Pressurized PBR Flange
Integrated circular sealing groove accommodates elastomer O-rings for weather-sealed and pressurized links.
Ultra-Short Streamlined Body
Compact 22 mm depth profile significantly reduces space envelope and system weight in dense assemblies.
Low Attenuation Transfer
Engineered matching section provides minimal 0.15 dB loss with stable 1.25 maximum VSWR across X-band.
Taiwanese Precision
CNC machined from high-grade aluminum in Taiwan ensuring airtight sealing and excellent dimensional consistency.
