Description & Specification

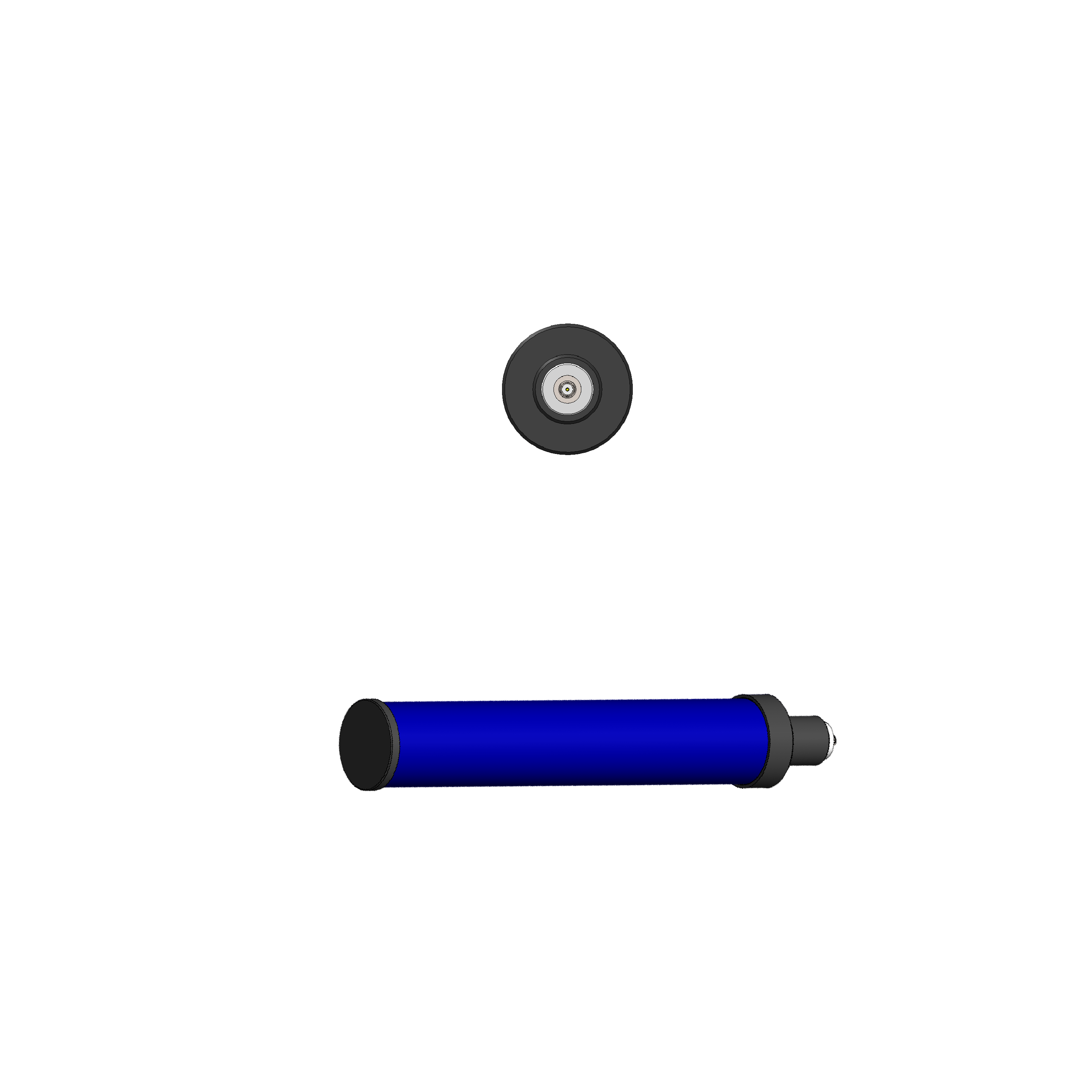

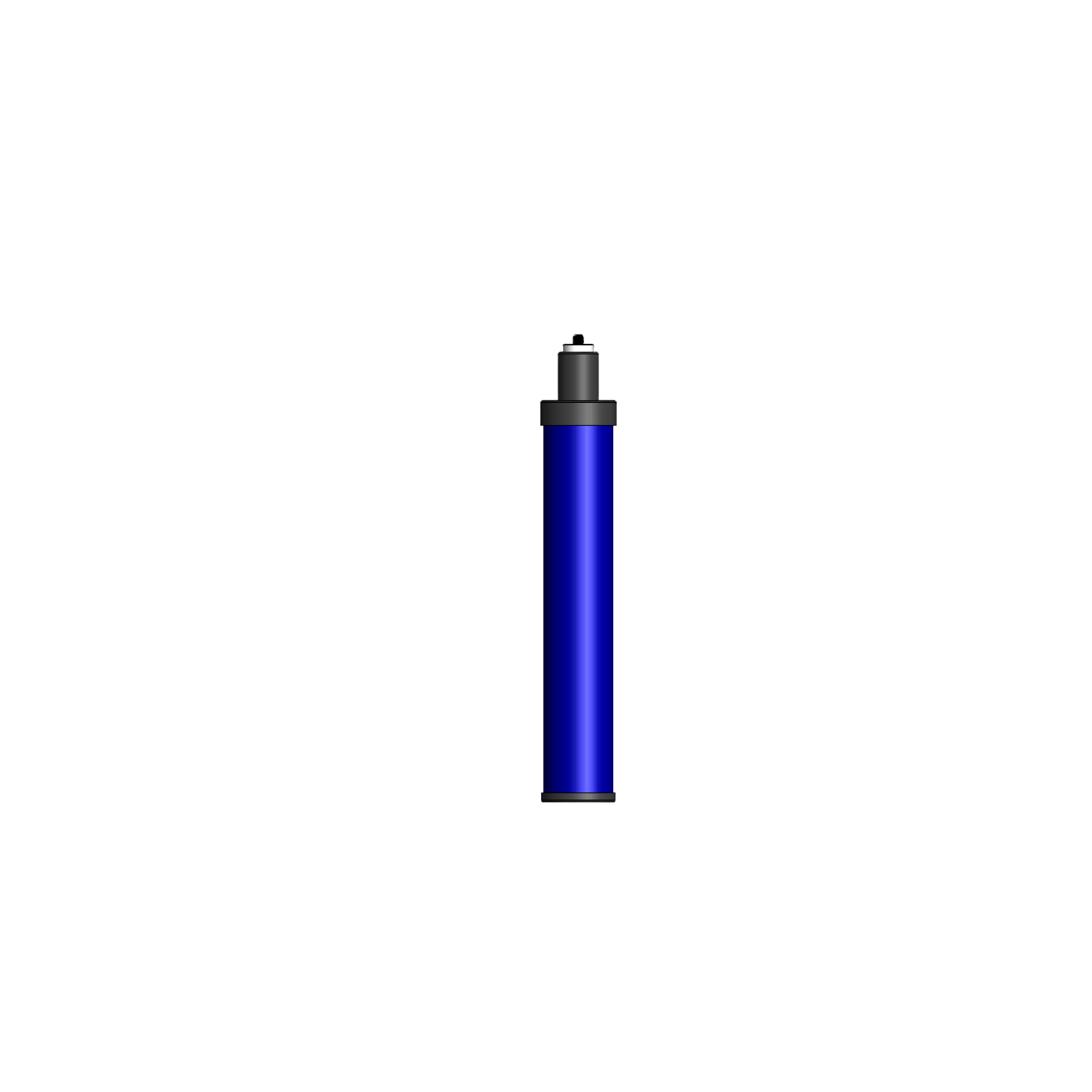

SL-82M1G-SF Precision Sleeve Dipole Antenna
High-Precision Reference Dipole | 820 - 980 MHz | Model: SL-82M1G-SF
The SL-82M1G-SF is a precision sleeve dipole antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Operating across the 820 MHz to 980 MHz spectrum (up to 1 GHz), it delivers a stable gain of 0.9 to 1.65 dBi along with an exceptional radiation efficiency of 92% to 98%. Specifically compliant with CTIA specifications featuring H-Plane ripple of ±0.1 dB, it ensures high symmetry and measurement reliability. Designed with a maximum VSWR of 2.1:1 and a precision 50-ohm SMA-Female connector interface, it serves as an indispensable reference standard for OTA anechoic chamber testing, wireless mobile terminal evaluations, and laboratory RF calibration.
Technical Specifications
| Frequency Range | 820 to 980 MHz (Up to 1 GHz) |
| Antenna Type | Precision Sleeve Dipole Antenna |

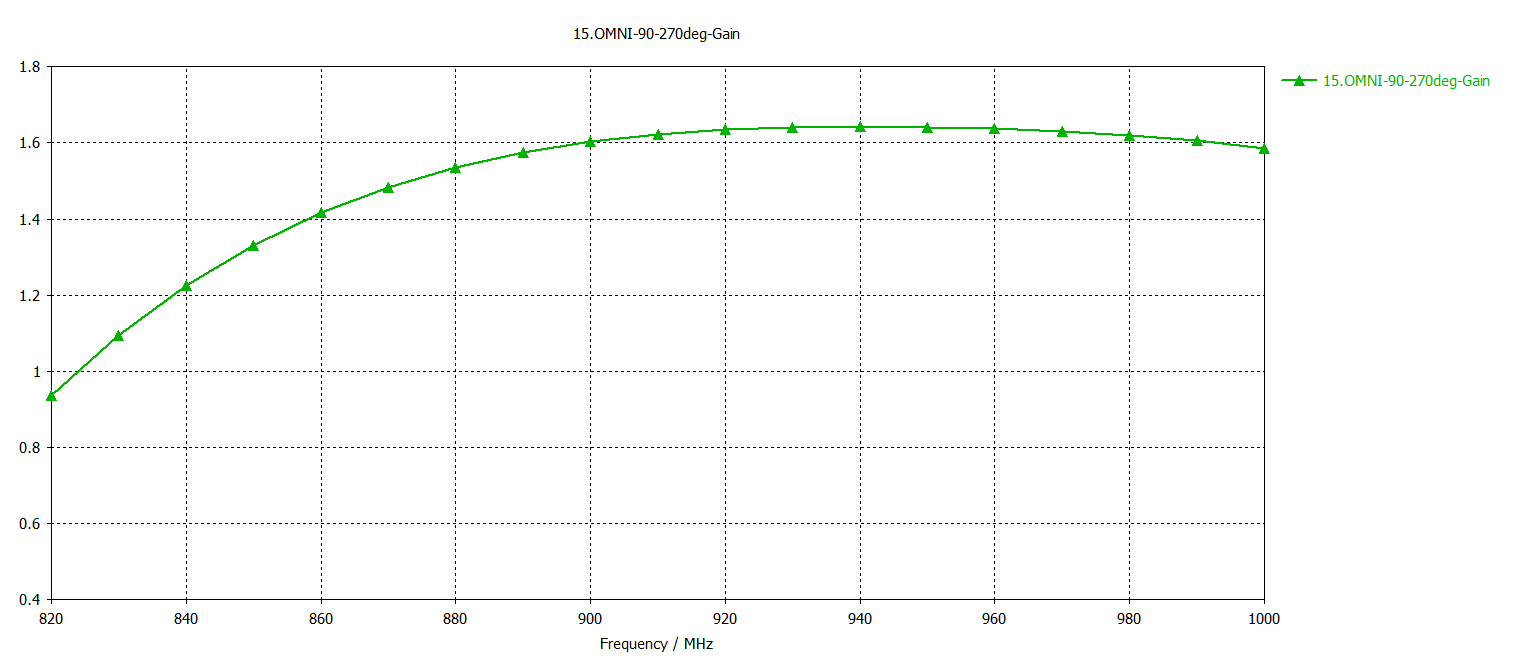

| Nominal Gain | 0.9 to 1.65 dBi |
| Radiation Efficiency | 92 to 98% |
| CTIA Specification | H-Plane ±0.1 dB |

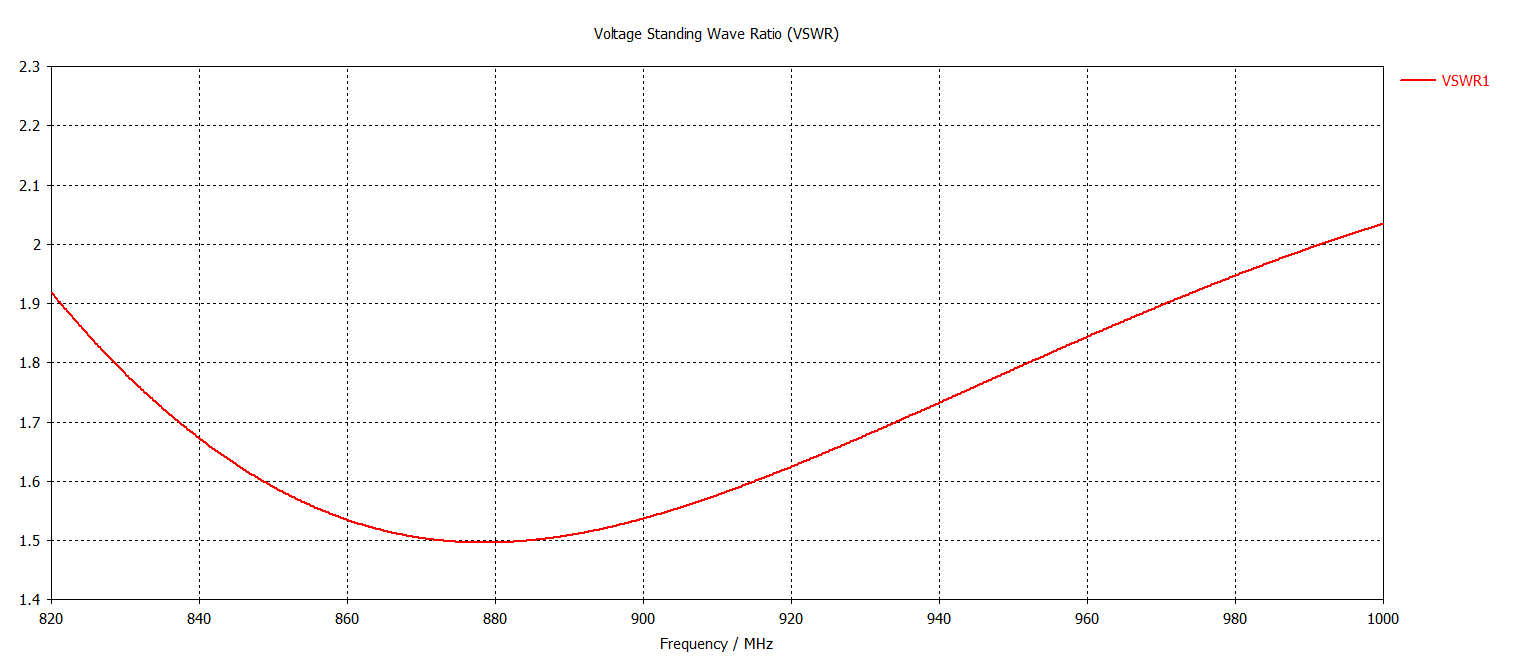

| V.S.W.R (Max) | 2.1 : 1 |
| Connector Interface | SMA-Female |
| Impedance | 50 Ω |
Mechanical & Physical Data

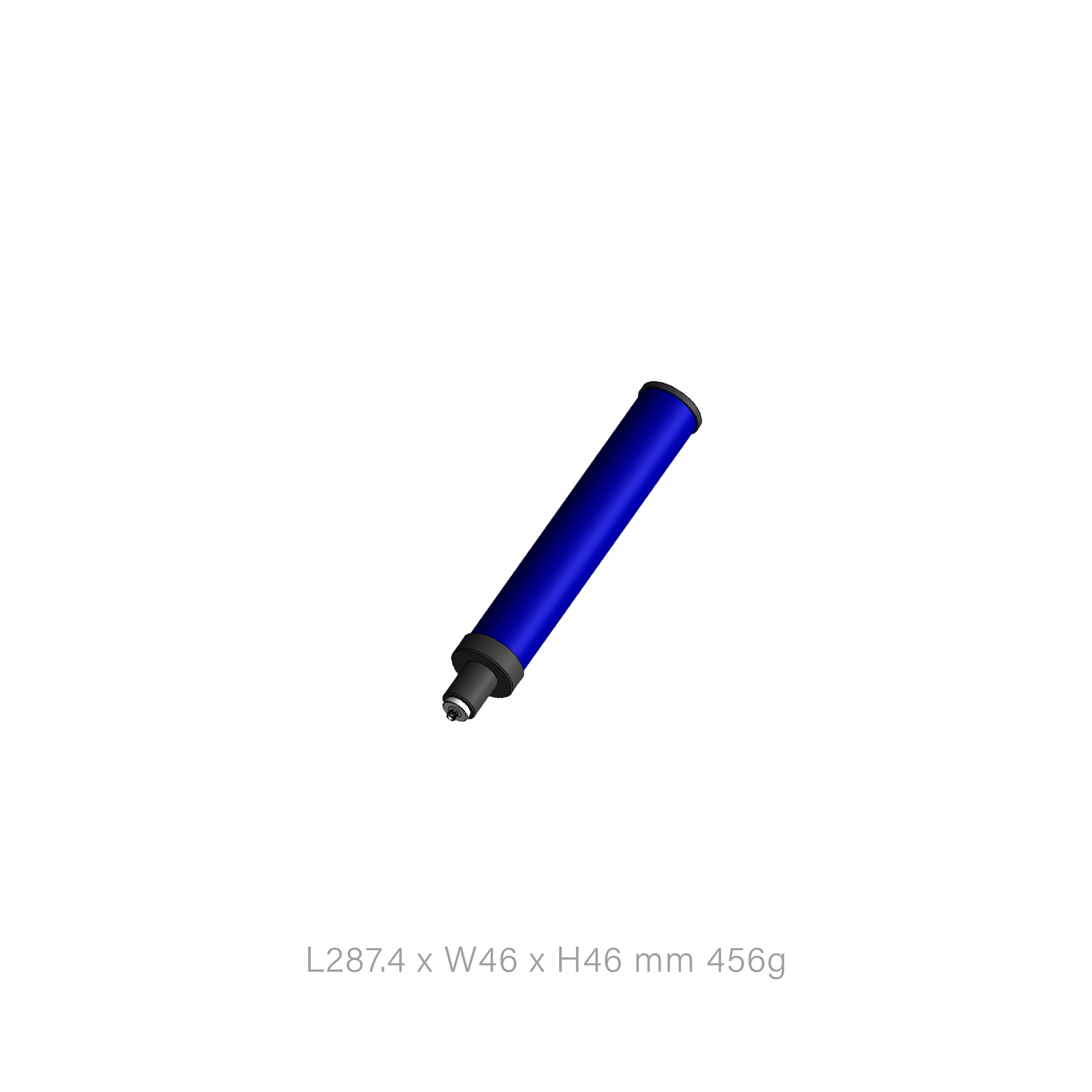

| Dimensions (L x W x H) | 287.4 x 46 x 46 mm |
| Component Weight | 456.3 g |
| Body Material | Precision Aluminum Alloy (Surface Treated) |
| Connector Material | Passivated Stainless Steel / Brass |
| Country of Origin | Taiwan |
Key Design & Feature Highlights
CTIA Standard Compliance
Strict H-Plane ±0.1 dB symmetry provides unmatched omnidirectional accuracy for OTA testing.
Ultra-High Efficiency
Delivers high radiation efficiency ranging from 92% to 98% across the operating frequency band.
Precision Sleeve Structure
Integrated sleeve dipole choke suppresses cable shield currents to ensure stable pattern repeatability.
Taiwanese Precision
Engineered and manufactured in Taiwan to fulfill demanding international RF metrology standards.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
