400 MHz to 550 MHz Precision Sleeve Dipole Antenna, SMA-Female Connector
FT-RF Horn Antenna
10 out of
10
-
Description & Specification
UHF Precision Sleeve Dipole Antenna
Model: SL-450-SF | 400 MHz - 550 MHz | Gain Reference Radiator
The SL-450-SF is a laboratory-grade Precision Sleeve Dipole designed for anechoic chamber calibration and OTA (Over-The-Air) testing. Engineered to provide a stable 2.15 dBi gain reference, it features high radiation symmetry and a specialized sleeve balun that isolates the radiator from the feed cable. This ensures the radiation pattern remains unaffected by nearby metallic objects or cables, making it the primary choice for professional Signal Defense range calibration and CTIA ripple test measurements.
Technical Specifications
| Frequency Range | 400 MHz to 550 MHz |
| Nominal Gain | 2.15 dBi ± 1 dBi |
| Radiation Symmetry | ± 0.1 dB (CTIA Compliance) |
| Antenna Type | Sleeve Dipole (Reference Grade) |

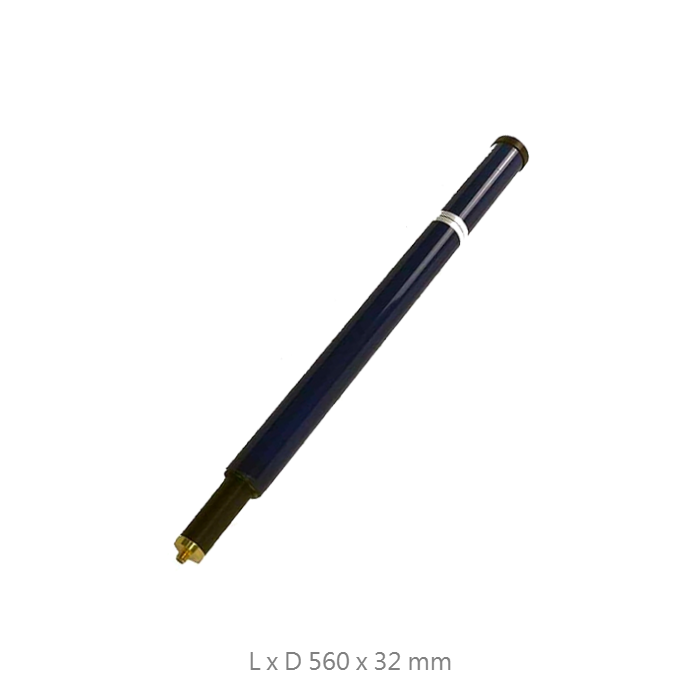

| Dimensions (Length x Diameter) | 560 x 32 mm |
| Net Weight (N.W.) | 380 g |
| Standard Connector | SMA-Female (N-Female Available) |
Key Tactical & Lab Features
CTIA Symmetry Precision
Meets the rigorous +/- 0.1 dB symmetry requirements, providing the necessary accuracy for ripple test measurements and chamber reflectivity evaluation.
Cable Isolation Design
The sleeve dipole structure prevents feedpoint interference, ensuring that the antenna's effectiveness is not compromised by cable contact.
Gain Reference Dominance
Serves as a reliable low-gain antenna efficiency reference for calibrating high-frequency test ranges and tactical monitoring sub-systems.
Lightweight Structural Rigidity
Weighing only 380g with a sleek 32mm diameter, it allows for easy mounting on precision positioning systems and fiber-optic towers.
Get a Quote / Calibration Support
Contact our engineering team for full VSWR plots, custom N-Type connectors, or specialized frequency centering within the UHF band.
