Description & Specification

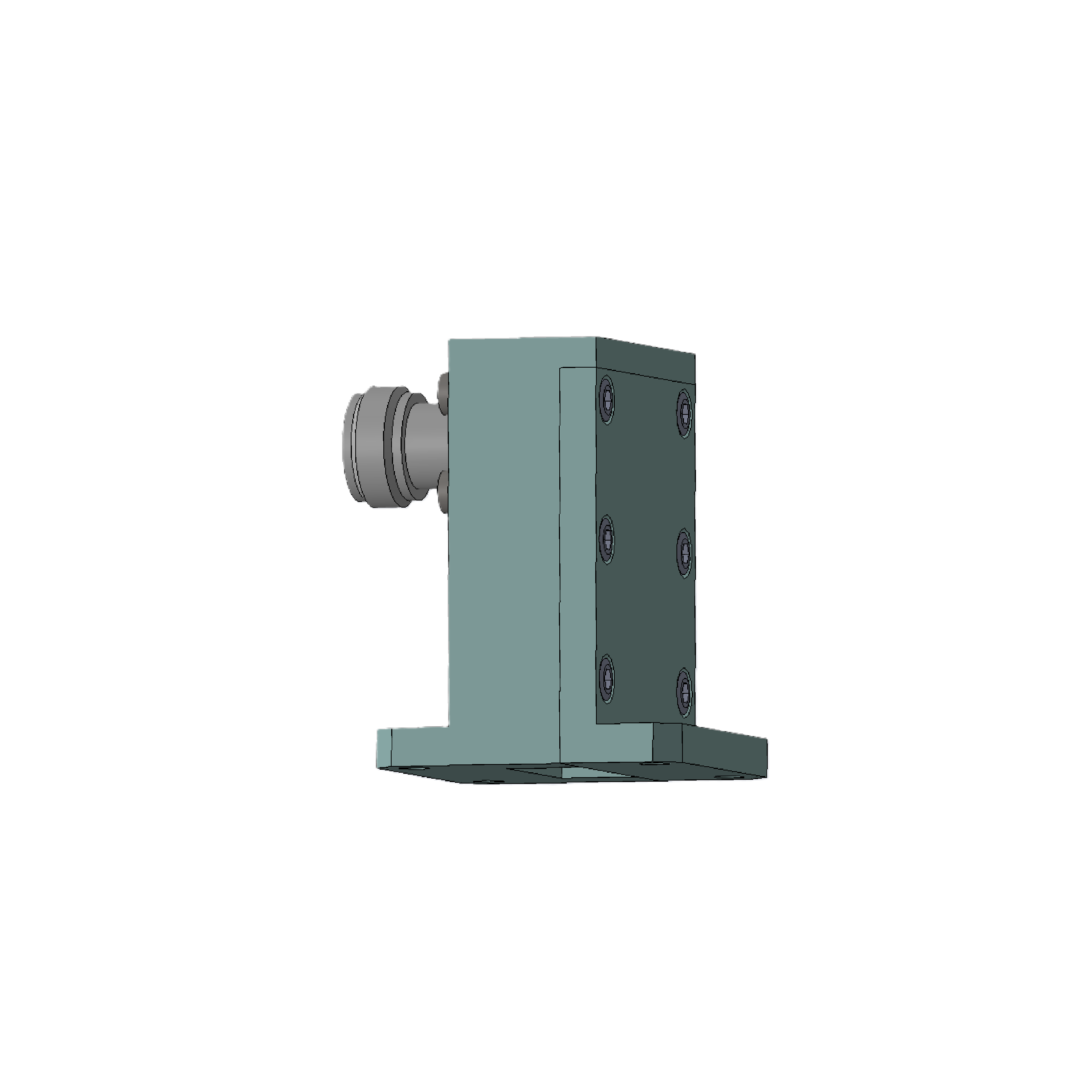

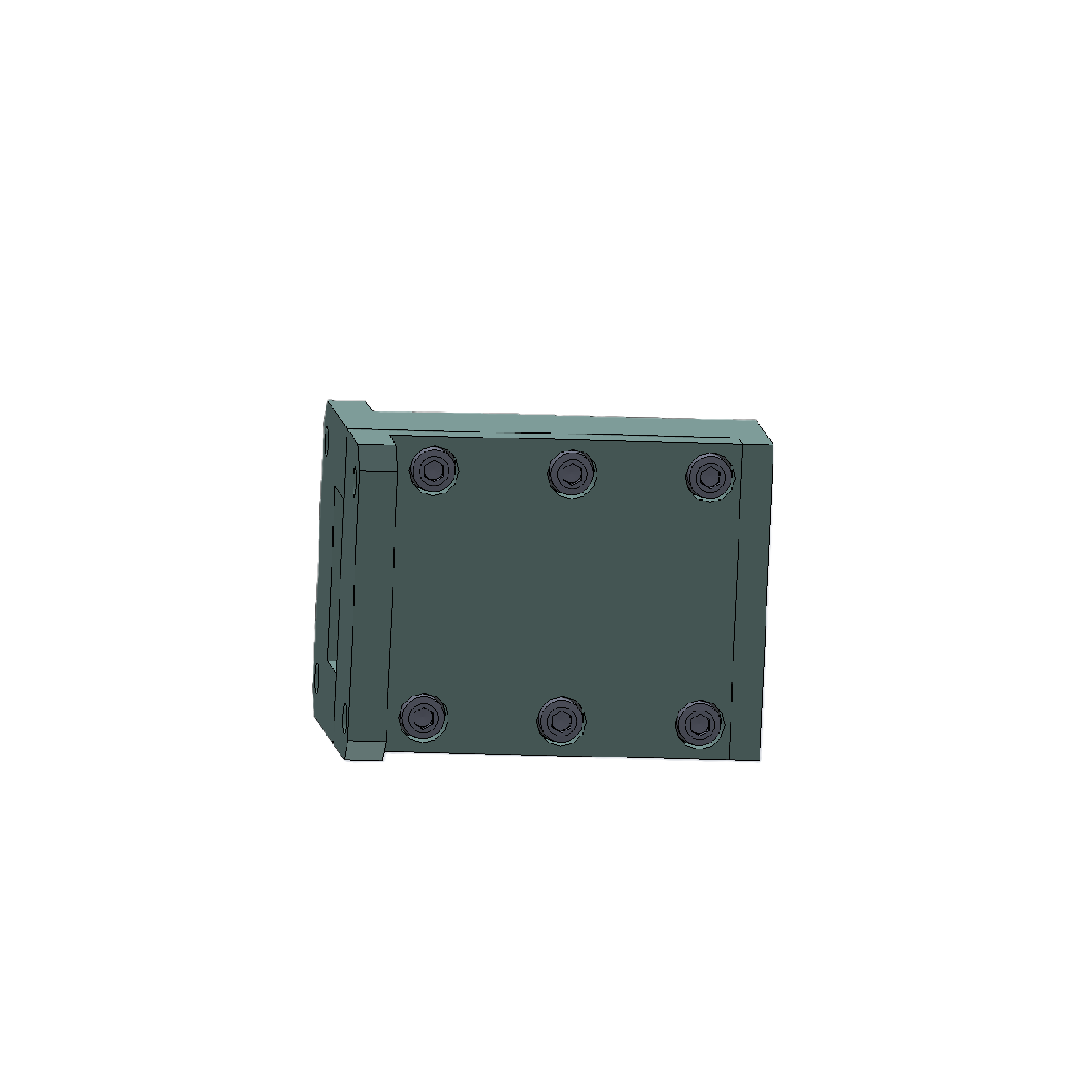

WR90 8.2 to 12.4GHz N-Female Ridge Short Circuit Waveguide Adapter
X-Band High-Power Transition | Flange: UBR Type: H1 | Model: WC-090-UBR-H1-NF
The WC-090-UBR-H1-NF is a high-power X-band ridge short circuit rectangular waveguide to coaxial adapter professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Operating across the 8.2 GHz to 12.4 GHz frequency range, it provides a high-reliability transition between standard WR-90 (WG16 / R100) rectangular waveguides and 50-ohm N-Female coaxial interfaces. Designed with an internal ridge short circuit structure, it achieves an insertion loss of only 0.15 dB and a maximum VSWR of 1.25:1. Featuring a robust aluminum alloy body with an integrated square UBR flange (compatible with UBR100 / FBP100 patterns) and a durable stainless steel N-Female connector, it handles high power levels up to 300W CW / 3 kW Peak, providing an essential solution for high-power transmitters, radar systems, and laboratory RF testing.
Technical Specifications
| Frequency Range | 8.2 - 12.4 GHz |
| Waveguide Size | WR-90 (WG16 / R100) |
| Flange Type | UBR (UBR100 / FBP100 Compatible) |
| Connector Interface | N-Female |
| Impedance | 50 Ω |
| Insertion Loss | 0.15 dB |
| V.S.W.R (Max) | 1.25 : 1 |
| Continuous Power (CW) | 300 Watts |
| Peak Power Handling | 3 kW |
Mechanical & Physical Data

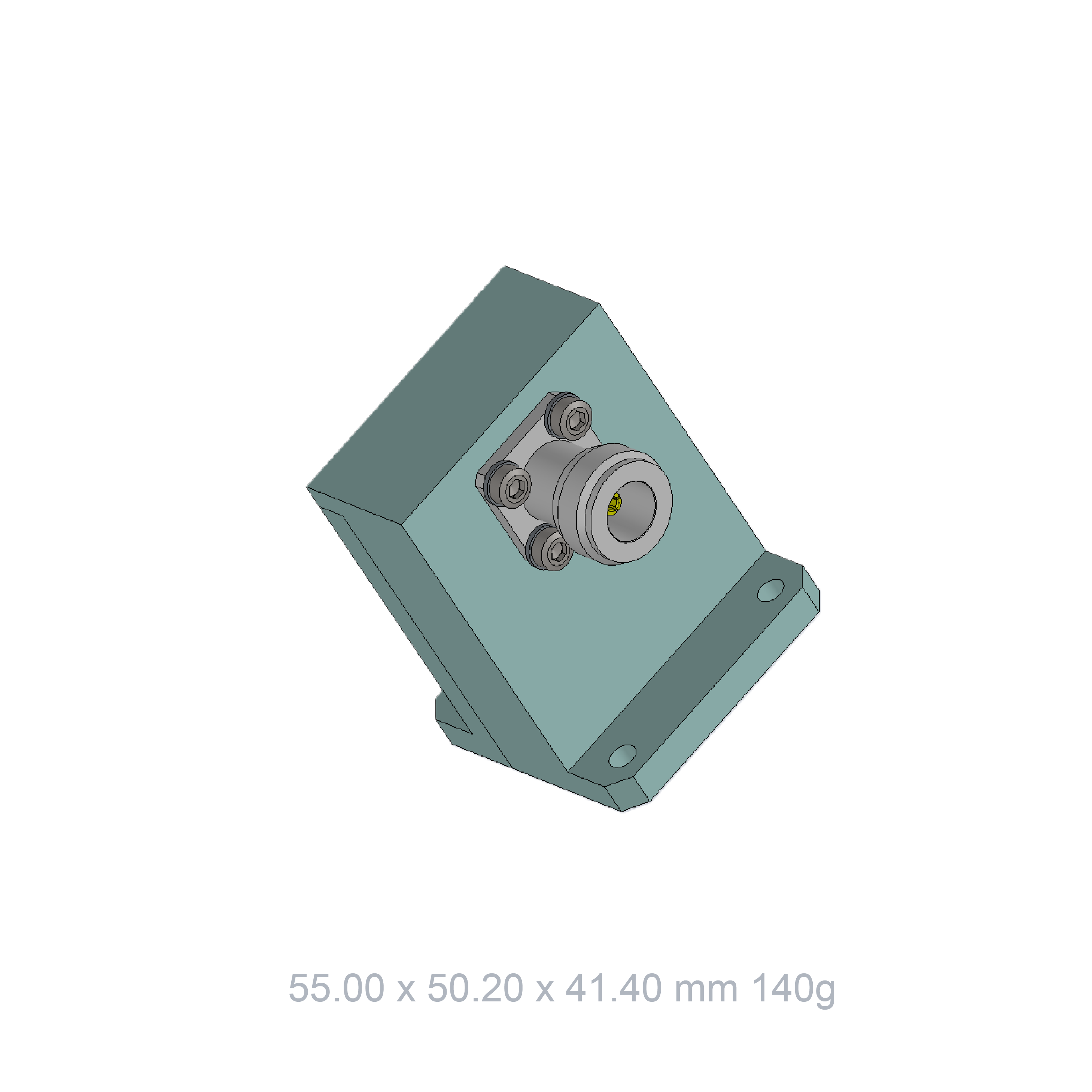

| Dimensions (L x W x H) | 55.00 x 50.20 x 41.40 mm |
| Component Weight | 140 g (Estimated ~129.79 g) |
| Body Material | Precision CNC Aluminum Alloy |
| Connector Material | Passivated Stainless Steel |

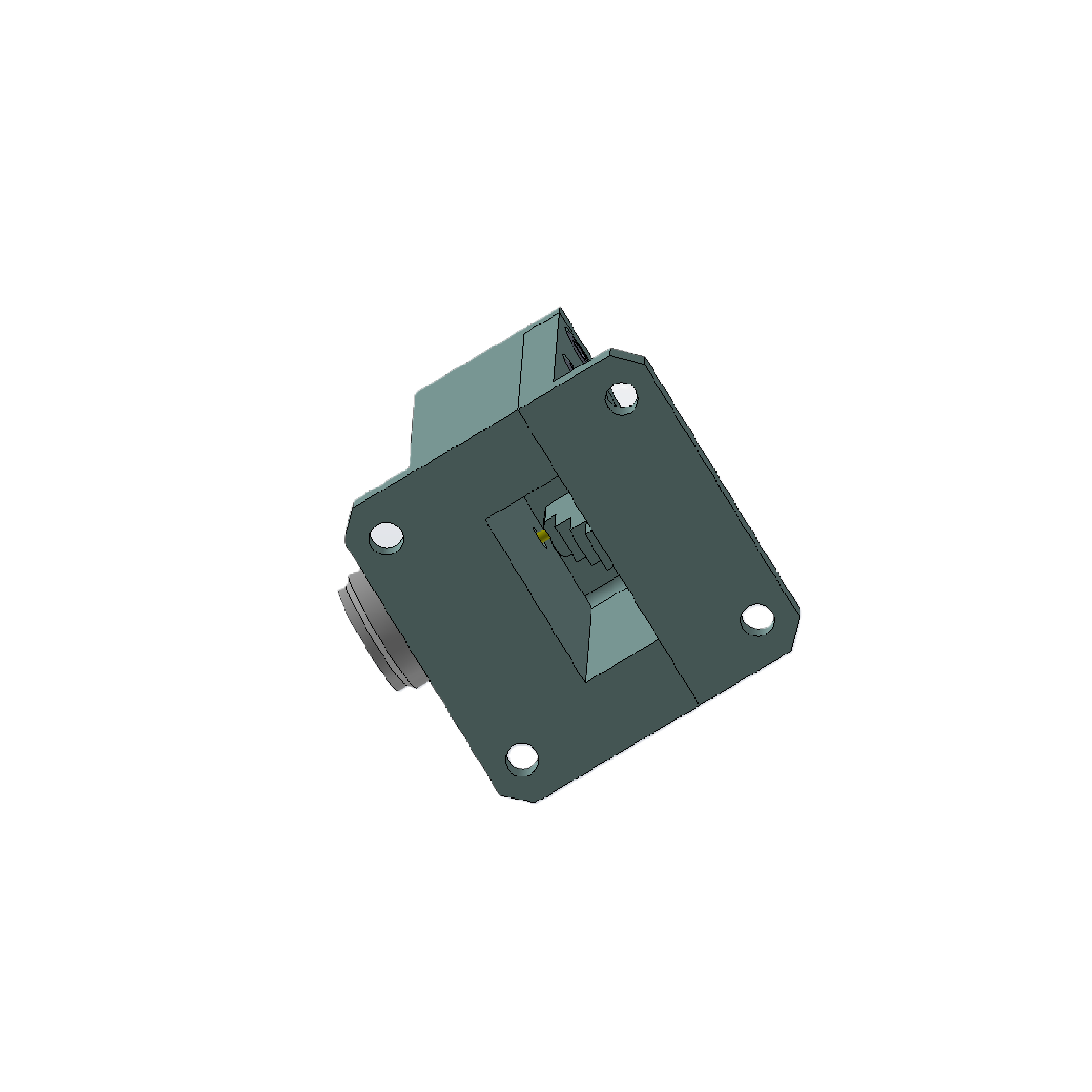

| Flange Hole Pattern | 4 x 4.17 mm Thru Holes (30.99 x 32.51 mm Spacing) |
| Country of Origin | Taiwan |
Insertion Loss Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Return Loss Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
Ridge Short Circuit Architecture
Precision ridge short circuit geometry enables optimized impedance matching and efficient power transfer.
High Power Capability
Supports robust continuous power up to 300W CW and 3 kW peak power for demanding transmitter setups.
Durable N-Female Interface
Equipped with a rugged passivated stainless steel N-Female connector delivering long-term mating durability.
Taiwanese Precision
CNC machined from quality aluminum alloy in Taiwan ensuring accurate mechanical and RF tolerances.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
