Description & Specification

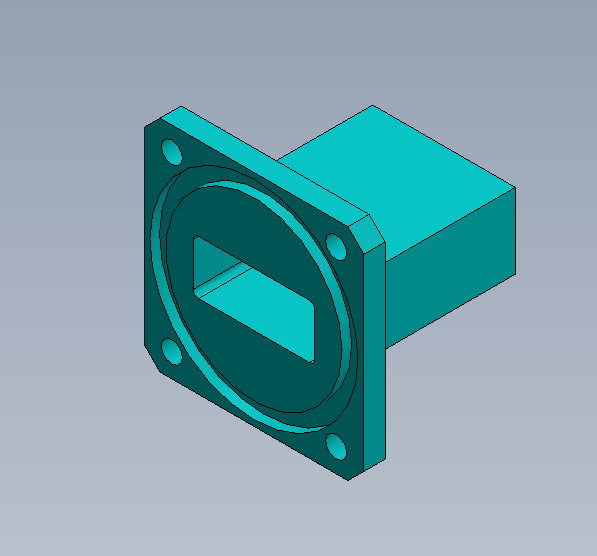

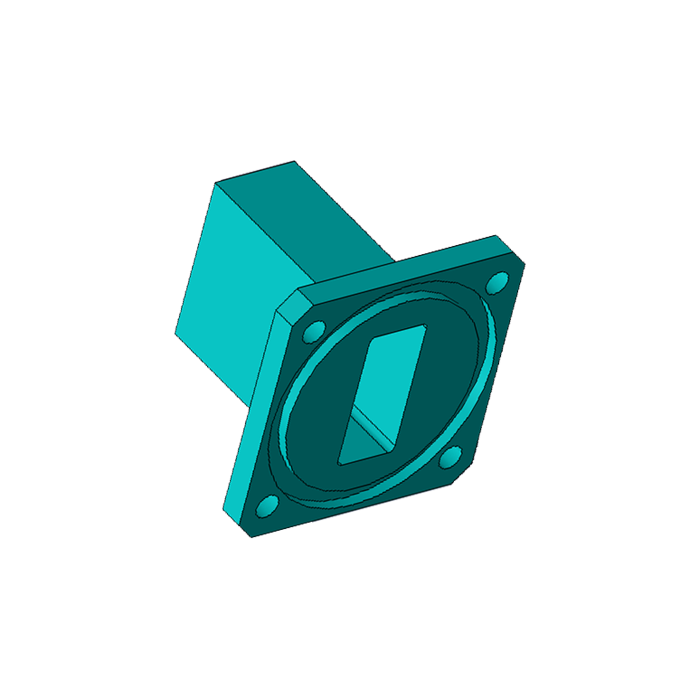

WR-90 Waveguide Coaxial Adapter
Precision X-Band Transition | Standard UG-39/U Flange | 8.2 GHz – 12.4 GHz
The WC-090-PBR-SF is a high-precision microwave Waveguide to Coaxial Adapter professionally engineered for strict adherence to the standard WR-90 architectural layout. Operating continuously across the 8.2 GHz to 12.4 GHz X-Band spectrum, this premium adapter enables high-efficiency signal transition between rectangular waveguide systems and coaxial networks. Featuring a standardized UG-39/U (PBR Type) flange interface and a precision coaxial SMA-Female connector, it delivers flawless Signal Integrity with an exceptionally low maximum VSWR profile of 1.3 : 1. Fully designed and manufactured in Taiwan, this ultra-lightweight 35g component safely manages continuous wave power loads up to 250 Watts (CW), rendering it the definitive choice for professional radar systems, satellite ground stations, advanced wireless testing networks, and mission-critical Signal Defense calibration arrays.
Electrical & RF Performance
| Frequency Range | 8.2 to 12.4 GHz (X-Band) |
| V.S.W.R (Max) | ≤ 1.3 : 1 |
| Maximum Power Handling | 250 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
Mechanical & Physical Specs
| Waveguide Size Standard | EIA WR-90 (R100 / WG16) |
| Waveguide Flange Designation | UG-39/U Style (PBR Flange with Groove) |
| Coaxial Connector Interface | SMA-Female Interface |

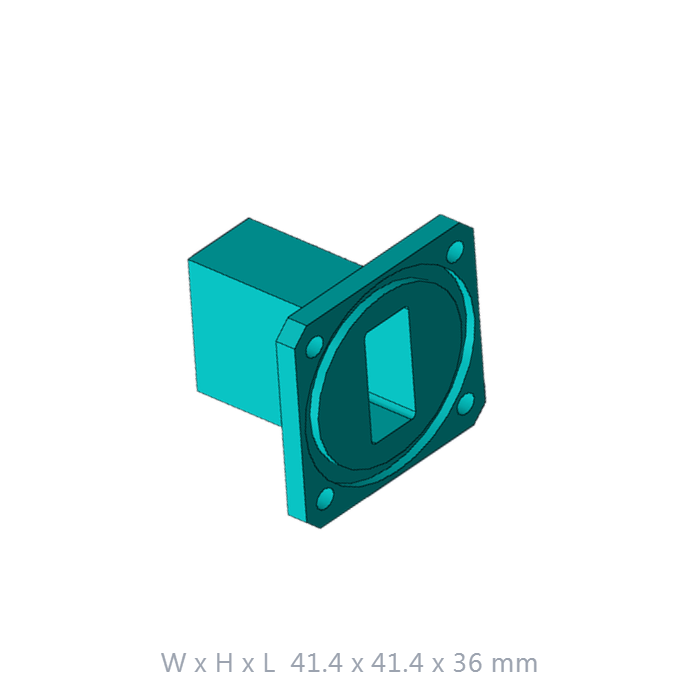

| Dimensions (W x H x L) | 41.4 x 41.4 x 36 mm |
| Net Weight | 35 g (Ultra-Lightweight Build) |
| Body Material Profile | High-Grade Machined Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
X-Band Spectrum Integrity
Optimized for the 8.2-12.4 GHz band, ensuring minimal signal leakage and maximum performance when paired with professional waveguide sub-systems and source components.
Precision SMA Interface
Equipped with a high-durability SMA-Female connector, providing reliable electromechanical contact and excellent wear resistance for repeated laboratory testing cycles.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring consistent internal launcher dimensions and calibration constancy.
Standardized PBR Interface
Features a standardized PBR waveguide flange with gasket groove for secure mechanical coupling, ensuring low VSWR and stable power transfer in demanding RF setups.
Get a Quote / Custom RF Solutions
Contact our technical engineering team today to request custom flange drilling patterns, individual certified V.S.W.R plots, or integrated sub-assembly solutions.
