WR112 Standard Gain Horn Antenna

The WR112 waveguide Standard Gain Horn Antennas are intended for use in emissions and immunity testing in 7.05GHz to 10GHz
Each antenna is linearly polarized and has a constant antenna factor, uniform gain, and low VSWR.
The performance of the Standard Gain Horn is exact and predictable due to design parameters that follow international standards.

The antenna's only power-limiting component is the waveguide to coaxial adapter, which can be removed if high fields are desired.

Standard Gain Horn Antenna Applications:

  • - WR112 waveguide, 7.05GHz to 10GHz
  • - Antenna measurement
  • - Radar Detection System
  • - Wireless Communication
  • - Spectrum Monitoring
  • - Electromagnetic interference Testing (EMI test)



  • Original Model No.: HS-11210A-NF
  • Waveguide: WR-112
  • Frequency: 7.05GHz to 10GHz
  • Gain: 10 dBi
WR112 Standard Gain Horn Antenna, 7.05GHz to 10GHz, 10 dbi gain, SMA-Female connector, UBR Flange NEW
  • Waveguide: WR-112
  • Frequency: 7.05GHz to 10GHz
  • Gain: 10 dBi
  • Waveguide: WR-112
  • Frequency: 7.05GHz to 10GHz
  • Gain: 10 dBi
  • Original Model No.: HS-11215A-NF
  • Waveguide: WR-112
  • Frequency: 7.05GHz to 10GHz
  • Gain: 15 dBi
WR112 Standard Gain Horn Antenna, 7.05GHz to 10GHz, 15 dbi gain, SMA-Female connector, UBR Flange NEW
  • Waveguide: WR-112
  • Frequency: 7.05GHz to 10GHz
  • Gain: 15 dBi

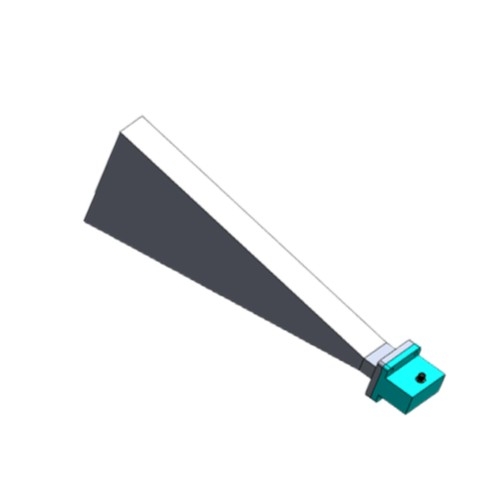

WR112 Standard Gain Horn Antenna, 7.05GHz to 10GHz, 15 dbi gain, SMA-Female connector, E-Plane sectoral Horn Antenna UBR Flange NEW
  • Waveguide: WR-112
  • Frequency: 7.05GHz to 10GHz
  • Gain: 10 dBi
WR112 Standard Gain Horn Antenna, 7.05GHz to 10GHz, 20 dbi gain, N-Female connector, UBR Flange NEW
  • Waveguide: WR-112
  • Frequency: 7.05GHz to 10GHz
  • Gain: 20 dBi
WR112 Standard Gain Horn Antenna, 7.05GHz to 10GHz, 20 dbi gain, SMA-Female connector, UBR Flange NEW
  • Waveguide: WR-112
  • Frequency: 7.05GHz to 10GHz
  • Gain: 20 dBi
