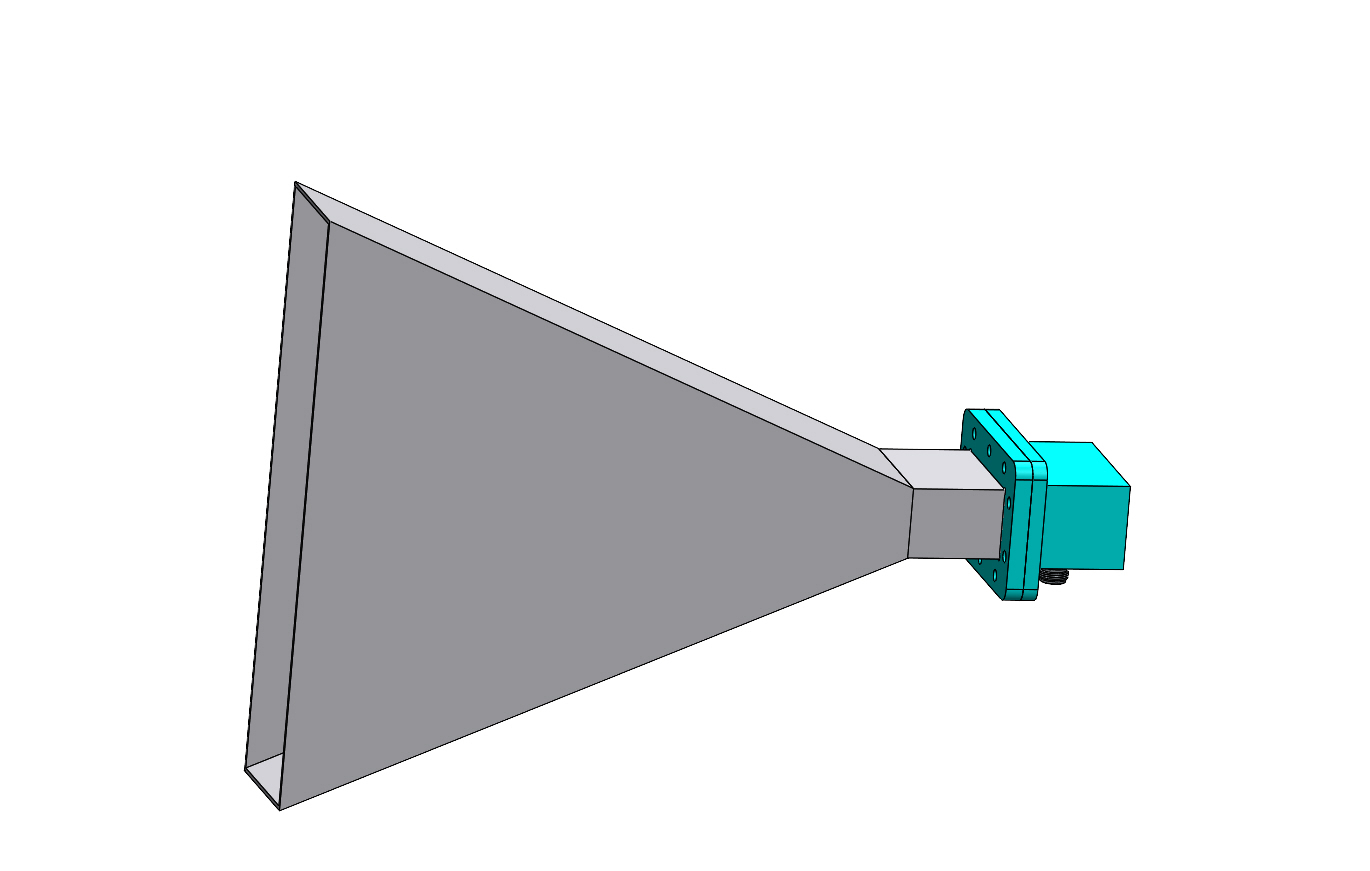

HS-284-UDR-10E-NF Sector Horn Antenna
C-Band Monitoring | 112° Wide H-Plane | Professional RF Grade
The HS-284-UDR-10E-NF is a high-performance C-band standard gain horn antenna engineered for the 5.85 GHz to 8.2 GHz frequency range. Featuring a specialized 112° wide H-plane radiation profile, this antenna is built for wide-area signal security and high-power laboratory RF deployments. Its robust aluminum architecture and precision waveguide construction ensure reliable performance and structural integrity in demanding environments.
Electrical & RF Performance
| Frequency Range | 5.85 - 8.2 GHz |
| Gain (Typical) | 10 dBi |
| Peak Power (CW) | 800 Watts |
| V.S.W.R (Max) | 1.3 : 1 |
| 3dB Beamwidth (H/E) | 112° / 28° |
| Connector Interface | N-Female |
| Waveguide / Flange | WR-284 / UAR |
Mechanical & Physical

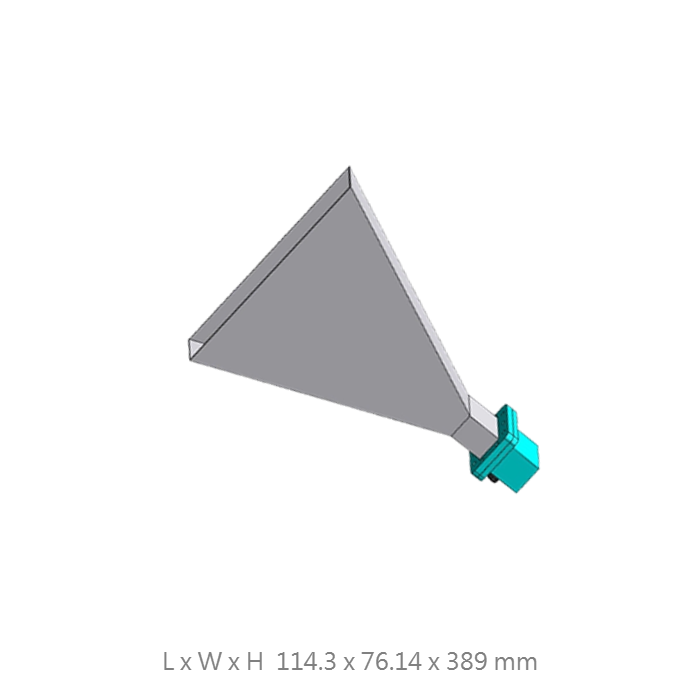

| Dimensions | 114.3 x 76.14 x 389 mm |
| Weight | 1650 g |
112° Ultra-Wide H-Plane
Specialized sectoral radiation pattern designed for wide-area monitoring and high-efficiency signal capture in tactical environments.
800W Power Capacity
Robust aluminum construction and precision-machined waveguides capable of handling high-power CW transmission without signal loss.
Premium CNC Build
Manufactured from high-grade aerospace aluminum for exceptional structural integrity and stable 10 dBi gain across the C-band spectrum.
Contact FT-RF Engineering Division
Contact our engineering team for customized mounting solutions, specific calibration data, or technical support.
