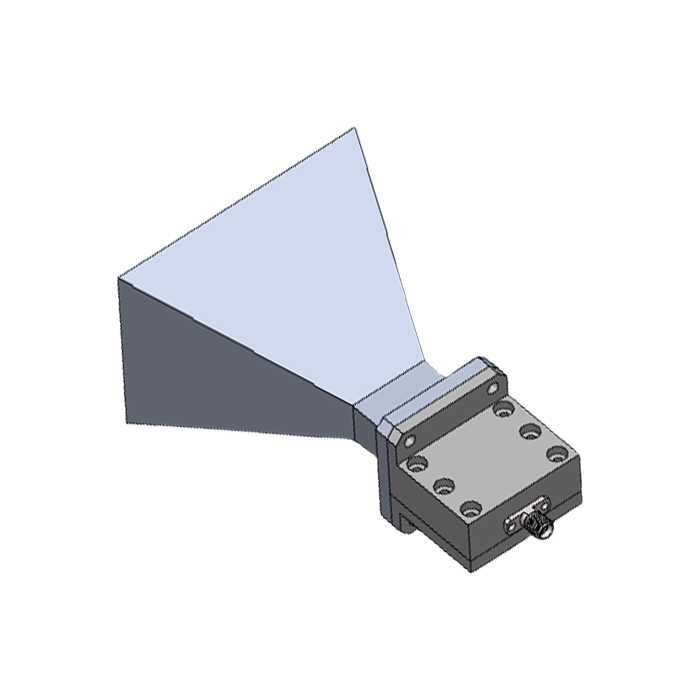

HS-090-UBR-15A-E-SF End Launch Horn Antenna
8.2 - 12.4 GHz | End Launch Design | 15 dBi Gain
The HS-090-UBR-15A-E-SF is a high-precision Standard Gain Horn Antenna professionally integrated with an End Launch waveguide-to-coaxial transition. Operating within the 8.2 GHz to 12.4 GHz X-Band spectrum, this system features an inline SMA interface, making it ideal for linear system configurations where space is limited. With a consistent 15 dBi gain and exceptional VSWR (1.25), it is an essential instrument for EMI/EMC testing and antenna gain measurement, ensuring superior signal integrity for mission-critical RF deployments.
Electrical & RF Performance
| Frequency Range | 8.2 GHz - 12.4 GHz |
| Waveguide Interface | WR-90 (UBR) |
| Nominal Gain | 15 dBi |
| Max Power Handling | 250 Watts (CW) |
| Beamwidth (H/E) | 27° / 27° |
Mechanical & Physical

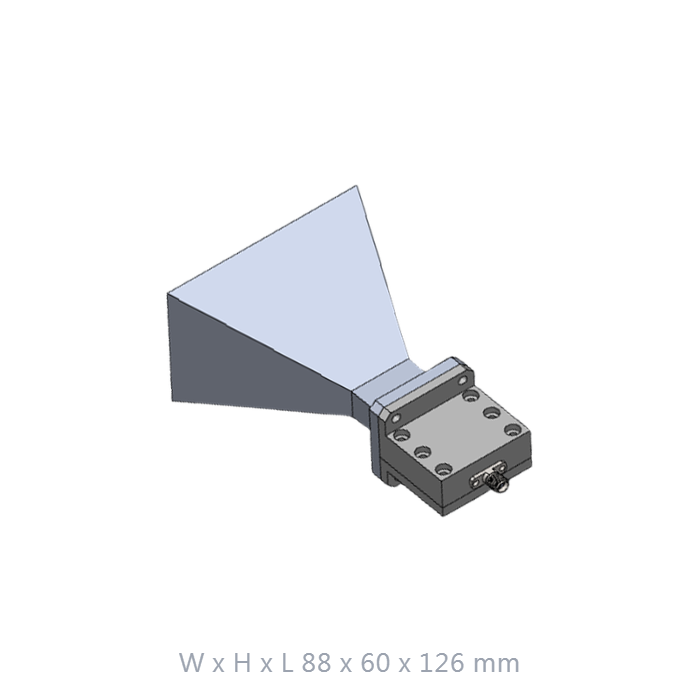

| Dimensions | 41.4 x 144.11 x 341 mm |
| Weight | 380 g |
| Connector Type | SMA-Female (Stainless Steel) |
| Body Material | High-Grade Aluminum |
End Launch Inline Configuration
Features an inline coaxial-to-waveguide transition, facilitating streamlined mechanical mounting and cabling in space-constrained setups.
X-Band Pattern Control
Optimized for the 8.2-12.4 GHz band, delivering symmetrical 27° beamwidths and the gain flatness required for high-fidelity antenna calibration.
Heavy-Duty SUS Interface
Equipped with a high-durability stainless steel SMA interface, ensuring reliable electrical contact and structural wear resistance for repeated laboratory use.
Customizable Infrastructure
Available with options for PTZ control integration, specialized tripod mounting, and custom color coatings to meet specific mission requirements.
Contact FT-RF Engineering Division
Contact our engineering team for specialized PTZ control, waterproof builds, or custom mounting interfaces.
