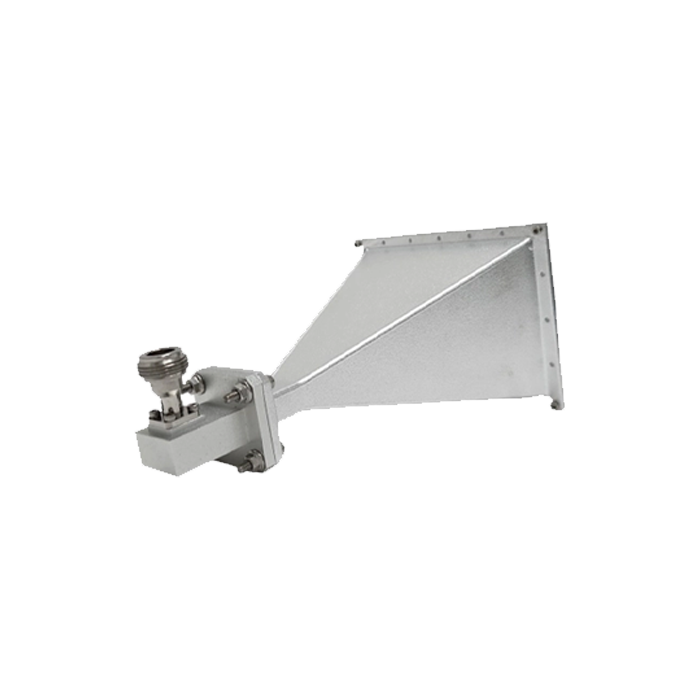

WR62 12.4 GHz to 18 GHz 20 dbi Standard Gain Horn Antenna with Radome, UDR Flange, N-Female Connector

WR62 12.4 GHz to 18 GHz 20 dbi Standard Gain Horn Antenna with Radome, UDR Flange, N-Female Connector

Model No: HS-062-20-R-NF

Made in Taiwan
Frequency Range: 12.4 - 18 GHz
Standard Gain: 20 dBi
Max Power (W): 350 Watts
Waveguide: WR-62
Stock: 0
2026/06/09
📐 VIEW DRAWING



Quantity:
INQUIRY

  • Description & Specification

12.4 GHz to 18 GHz WR-62 Standard Gain Horn Antenna

Model: HS-062-20-R-NF | 20 dBi Gain | Ku-Band Precision

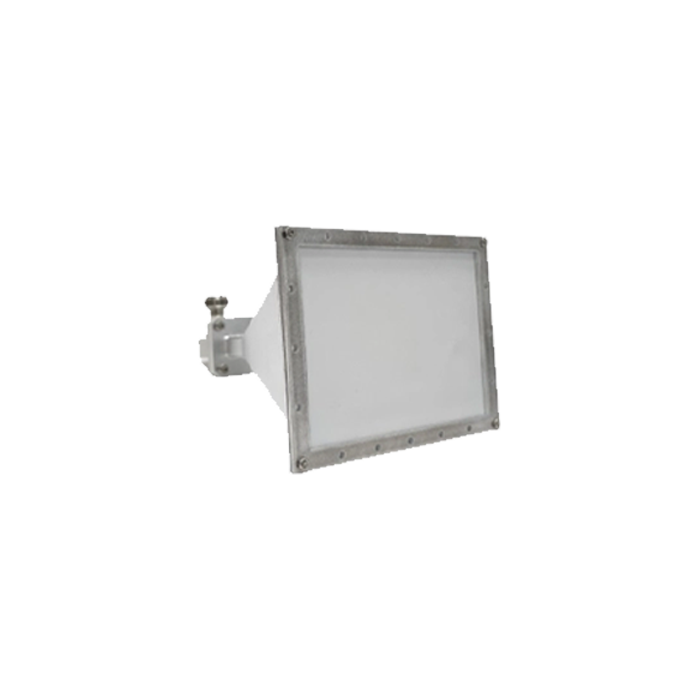

The HS-062-20-R-NF is a high-precision WR-62 Waveguide Horn Antenna professionally engineered for Ku-Band microwave applications within the 12.4 GHz to 18 GHz spectrum. Optimized for professional Signal Security operations and high-fidelity laboratory testing, it delivers a consistent 20 dBi gain profile. Featuring a ruggedized premium aluminum alloy body and a precision N-Female connector, this antenna ensures unwavering Signal Integrity and stability for advanced Signal Defense deployments and radar system measurements.
Technical Specifications
Electrical Performance
Waveguide Size WR-62 (WG18 / R140)
Frequency Range 12.4 - 18 GHz (Ku-Band)
Nominal Gain 20 dBi
V.S.W.R (Max) 1.3 : 1
3dB Beamwidth (H/E Plane) 19° / 18°
Maximum Power Handling 350 Watts (CW)
Impedance 50 Ohm
Mechanical & Construction

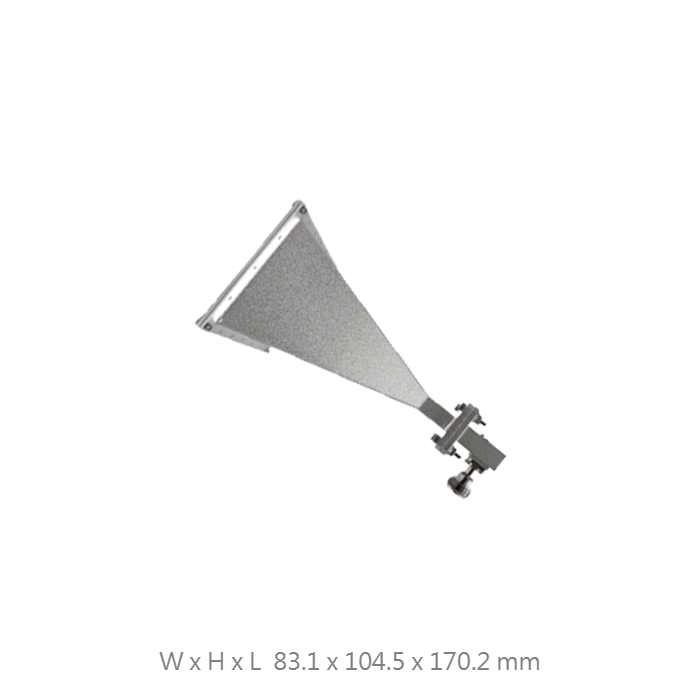

Dimensions (W x H x L) 83.1 x 104.5 x 170.2 mm
Net Weight 180 g (Precision Design)
Flange Compatibility UG-419/U or UG-541A/U
Body Material Premium Aluminum Alloy
Connector Type N-Female
Manufacturing Origin Taiwan Design / Made in Taiwan (FT-RF)
Key Tactical & Lab Features

350W Power Handling

Engineered to handle continuous power loads up to 350W, providing a robust radiator for intensive Signal Security operations and radar simulation.

Precision Signal Integrity

Optimized internal waveguide transition ensures minimal signal reflection and stable radiation patterns across the entire Ku-Band operating spectrum.

Ku-Band Spectrum Security

Engineered to support Signal Defense infrastructure, providing a reliable reference radiator for interference mitigation and professional surveillance.

Industrial Aluminum Build

Manufactured from premium aluminum alloy to ensure superior heat dissipation and structural stability during long-term field or laboratory deployments.

Request a Professional Quote

Contact our engineering team to obtain individual calibration data, VSWR plots, or customized waveguide flange requirements.

Contact FT-RF Team
