WR284 2.6GHz to 3.95GHz 20dbi Standard Gain Horn Antenna, UDR Flange N-Female

WR284 2.6GHz to 3.95GHz 20dbi Standard Gain Horn Antenna, UDR Flange N-Female

Model No: HS-284-UDR-20A-NF

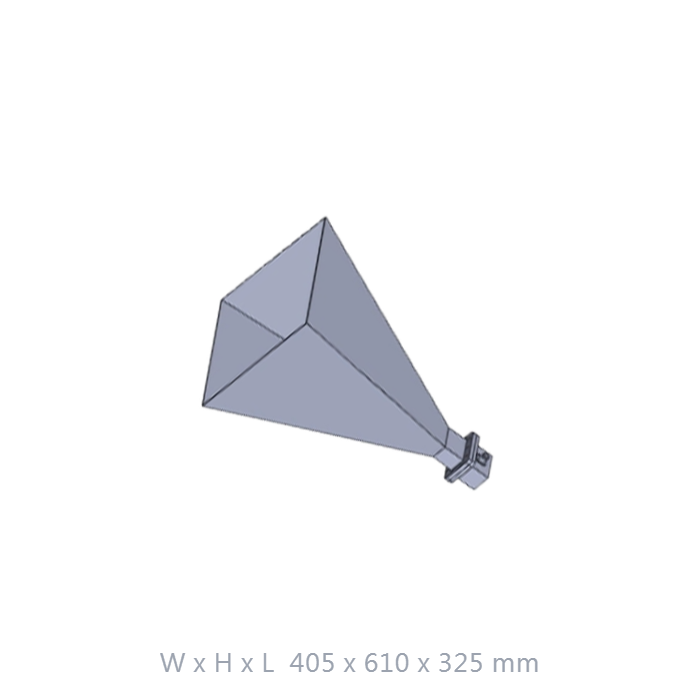

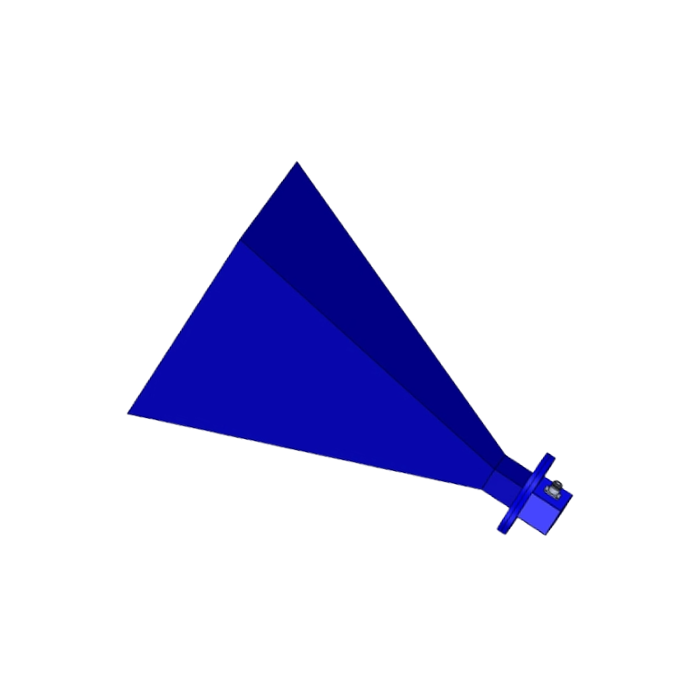

Mechanical Drawing: Download

  • Waveguide Type: WR-284
  • Frequency: 2.6 GHz to 3.95 GHz
  • Waveguide Coaxial Adapter Model: WC-284-UDR-NF
  • Waveguide input Mode: WI-284-UDR-20
  • Connector: N-Female
  • V.S.W.R: 1.25
  • Gain: 20 dBi
  • Wieght(g): 3000
  • Size (mm): 325x405x610
Quantity:
INQUIRY

  • Description & Specification

  • Model: HS-284-UDR-20A-NF
  • Waveguide: WR-284
  • Frequency: 2.6 to 3.95
  • Gain: 20
  • Max Power(W): 300
  • H-plane(-3db): 18
  • E-plane(-3db): 19
  • Size(mm): 325x405x610
  • Weight(g): 3000
  • Waveguide Flange: UDR
  • Connector: N-Female
  • V.S.W.R:1.25 body: Aluminum
  • Connector: Stainless Steel
