WR-650 Standard Gain Horn Antenna (Model: HS-650-10-R-NF)
1.14 - 1.73 GHz (L-Band) | 1000W Power | 10 dBi Gain | Wide Beamwidth
[Image of Standard Gain Horn Antenna]
The HS-650-10-R-NF is a robust WR-650 Waveguide Horn Antenna optimized for L-Band applications requiring broader area coverage. Operating between 1.14 GHz and 1.73 GHz, it provides a 10 dBi gain with a wide 54° beamwidth, making it superior for near-field testing and wide-area signal jamming compared to higher-gain, narrower-beam models. Capable of handling 1000 Watts (CW) of power and enclosed in a waterproof PVC radome, it is an ideal solution for outdoor GPS jamming simulation, EMI/EMC immunity testing, and antenna measurement ranges.
Technical Specifications
Electrical Specifications
| Frequency Range | 1.14 GHz to 1.73 GHz (L-Band) |
| Gain | 10 dBi |
| Maximum Power | 1000 Watts (CW) |
| V.S.W.R | 1.25 : 1 |
| Beamwidth (-3dB) | H-Plane: 54° / E-Plane: 55° (Wide Coverage) |
| Waveguide Size | WR-650 |
| Connector | N-Female (Stainless Steel SUS303) |
Mechanical & Environmental Specifications

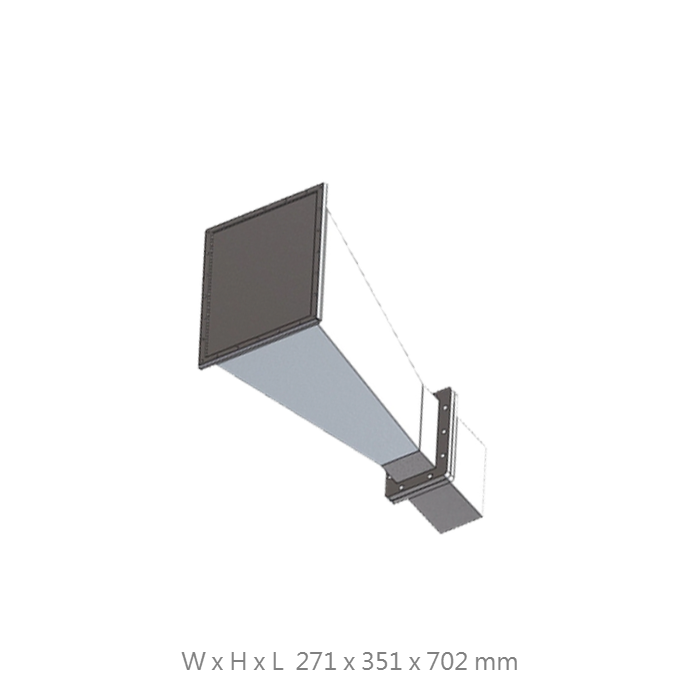

| Dimensions (W x H x L) | 271 x 351 x 702 mm |
| Net Weight | 5700 g (5.7 kg) |
| Body Material | Aluminum |
| Radome Material | PVC (Gray) - Waterproof |
| Waveguide Flange | UDR / PDR Compatible |
| Application | Outdoor / Indoor |
Key Features (Model Specific)
L-Band Wide Coverage
Designed for 1.14-1.73 GHz with a 54° beamwidth, perfect for covering larger areas in GPS jamming or EMS testing scenarios.
1000W Power Handling
Engineered for high-intensity operations, supporting up to 1kW continuous wave power for effective signal transmission.
Waterproof Design
Features a sealed gray PVC radome and aluminum body, protecting the waveguide from rain and dust in outdoor deployments.
Optimized Weight
At 5.7kg, it offers a more manageable form factor for tripod mounting and field setup compared to higher-gain alternatives.
Full Customization
We offer custom solutions including PTZ control integration, Tripod mounts, and tactical colors (Blue, Military Green, Gray, Black).
Get a Quote / Customization
Contact us for custom color options or PTZ integration.
