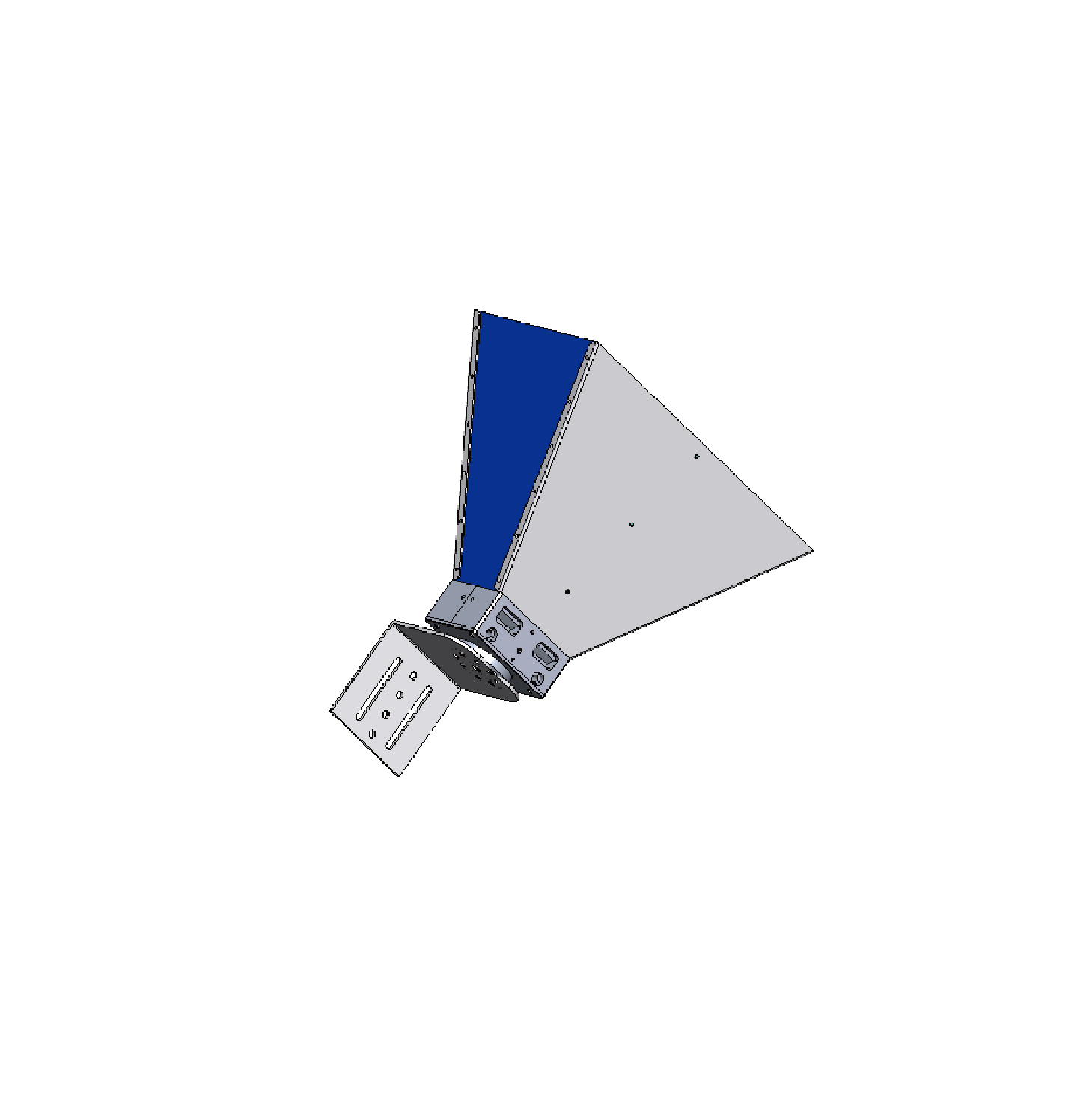

700MHz to 18GHz Double Ridged Broadband Waveguide N-Female Horn Antenna (Type: L)
Broadband Precision | 2 to 18.5 dBi Gain | Model: HA-07M18GL-NF
The HA-07M18GL-NF is a high-performance Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Operating across the continuous frequency range from 700 MHz to 18 GHz, it provides stable directional gain profiling from 2 to 18.5 dBi with a typical VSWR of 2.0. Featuring an aperture measuring 289 x 180 mm and an overall length of 241 mm (assembly length 333.80 mm), it is constructed from precision CNC machined aluminum alloy weighing approximately 1.2 kg (bare antenna 1437.47 g / total assembly 1563.98 g). Equipped with a precision N-Female coaxial connector supporting 120W CW / 300W Peak RF power, it includes a dedicated 6063-T5 aluminum support frame (AAH221C00206ACAA) with multi-hole mounting options, offering an industry-standard solution for EMC/EMI compliance testing, radar measurements, and broadband RF surveillance.
Technical Specifications
| Frequency Range | 700 MHz - 18 GHz |
| Antenna Type | Double Ridged Waveguide Horn (Type: L) |
| Nominal Gain | 2 to 18.5 dBi |
| V.S.W.R | Typical 2.0 |
| Radiation & Polarization | Directional | Linear |
| Continuous Power (CW) | 120 Watts |
| Peak Power Handling | 300 Watts |
| Impedance | 50 Ω |
| Connector | N-Female |

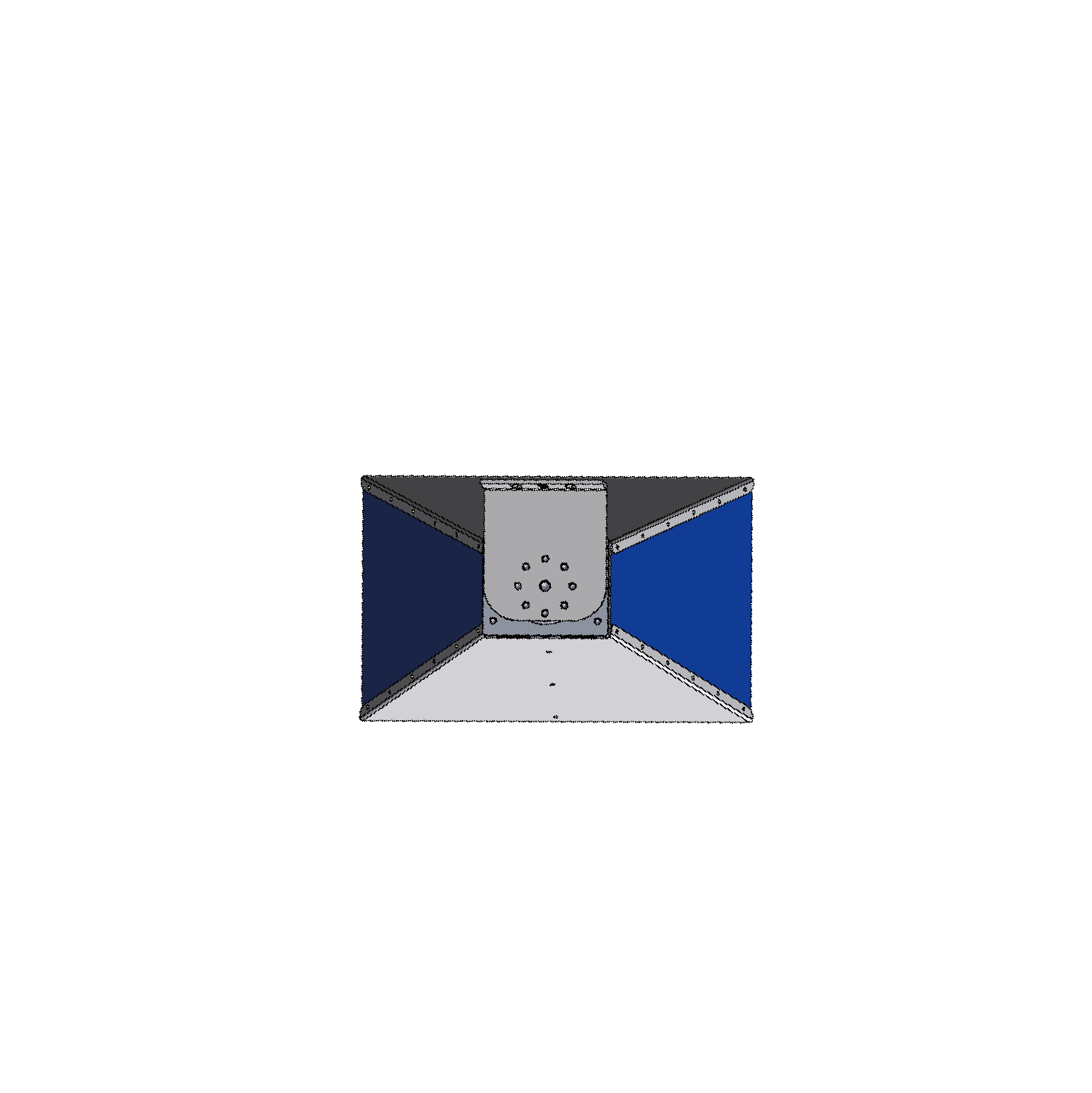

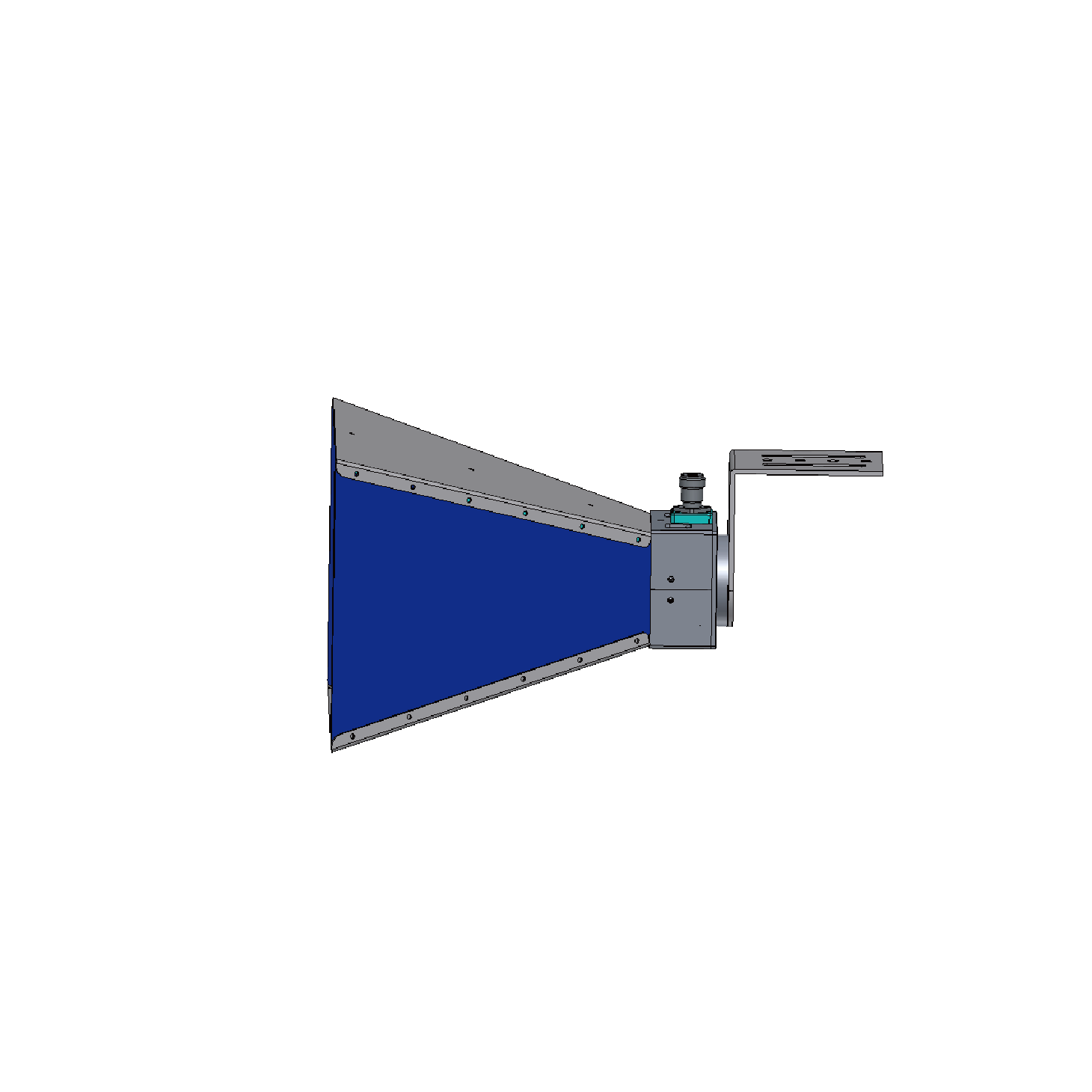

Mechanical & Physical Data

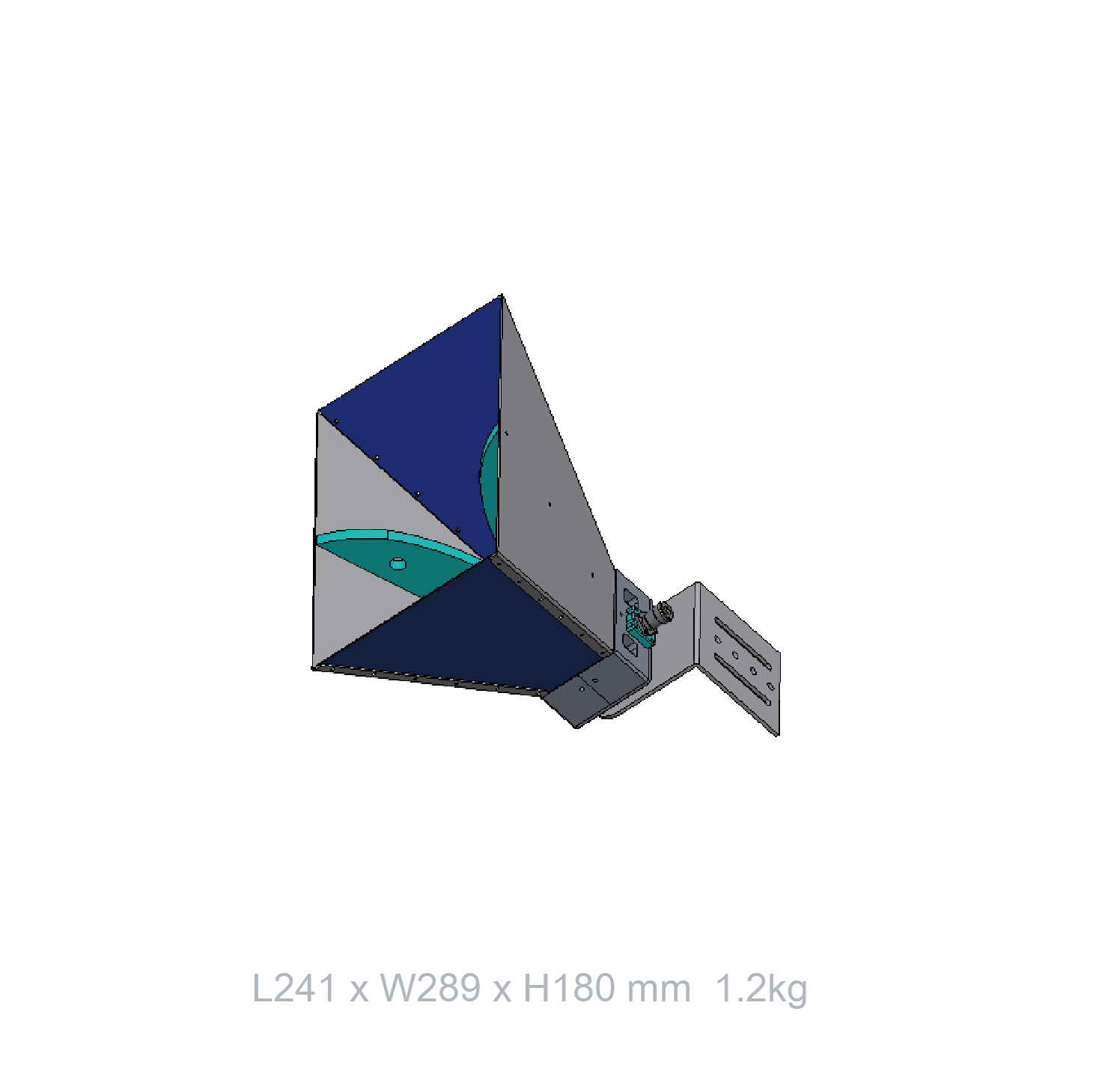

| Dimensions (L x W x H) | 241 x 289 x 180 mm (Assembly Length: 333.80 mm) |
| Antenna Weight (N.W) | 1.2 kg (Bare ~1437.47 g / Assembly ~1563.98 g) |
| Body Material | Precision Aluminum Alloy (Support: 6063-T5) |
| Mounting Interface | M8.00 x 1.25 / M5.00 x 0.8 Threaded Flange Pattern |
| Included Accessory | Reinforced Support Frame (AAH221C00206ACAA) |
| Country of Origin | Taiwan |
Gain Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.

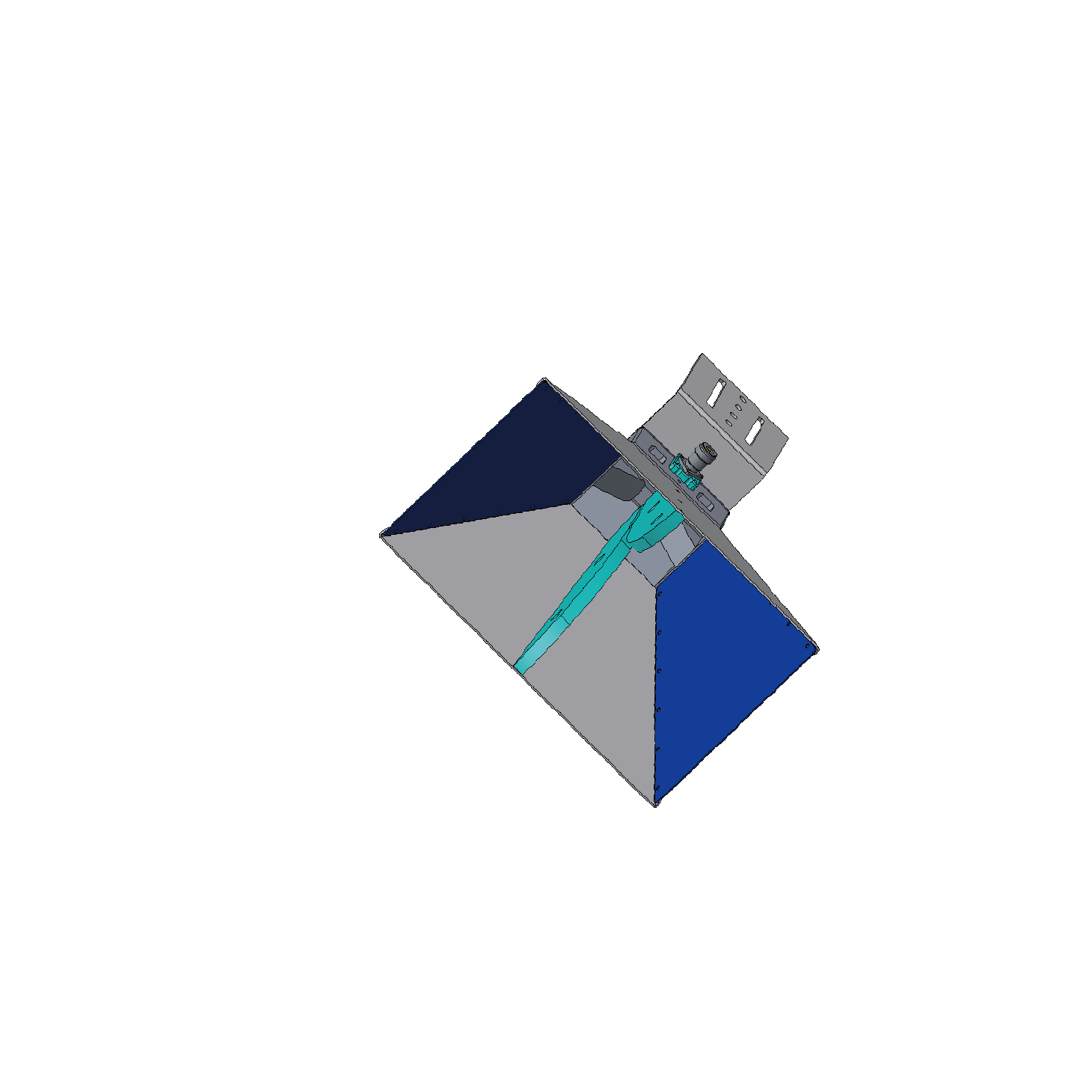

Key Design & Feature Highlights
Ultra-Broadband Performance
Seamless operational bandwidth covering 700 MHz to 18 GHz with high gain profile up to 18.5 dBi.
High Power Rating
Supports continuous input power up to 120W CW and 300W peak RF power capability.
Precision N-Female Feed
Equipped with a durable 50-ohm N-Female coaxial connector delivering high RF repeatability.
Taiwanese Precision
CNC machined from premium aluminum alloy in Taiwan with dedicated 6063-T5 mounting bracket included.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
