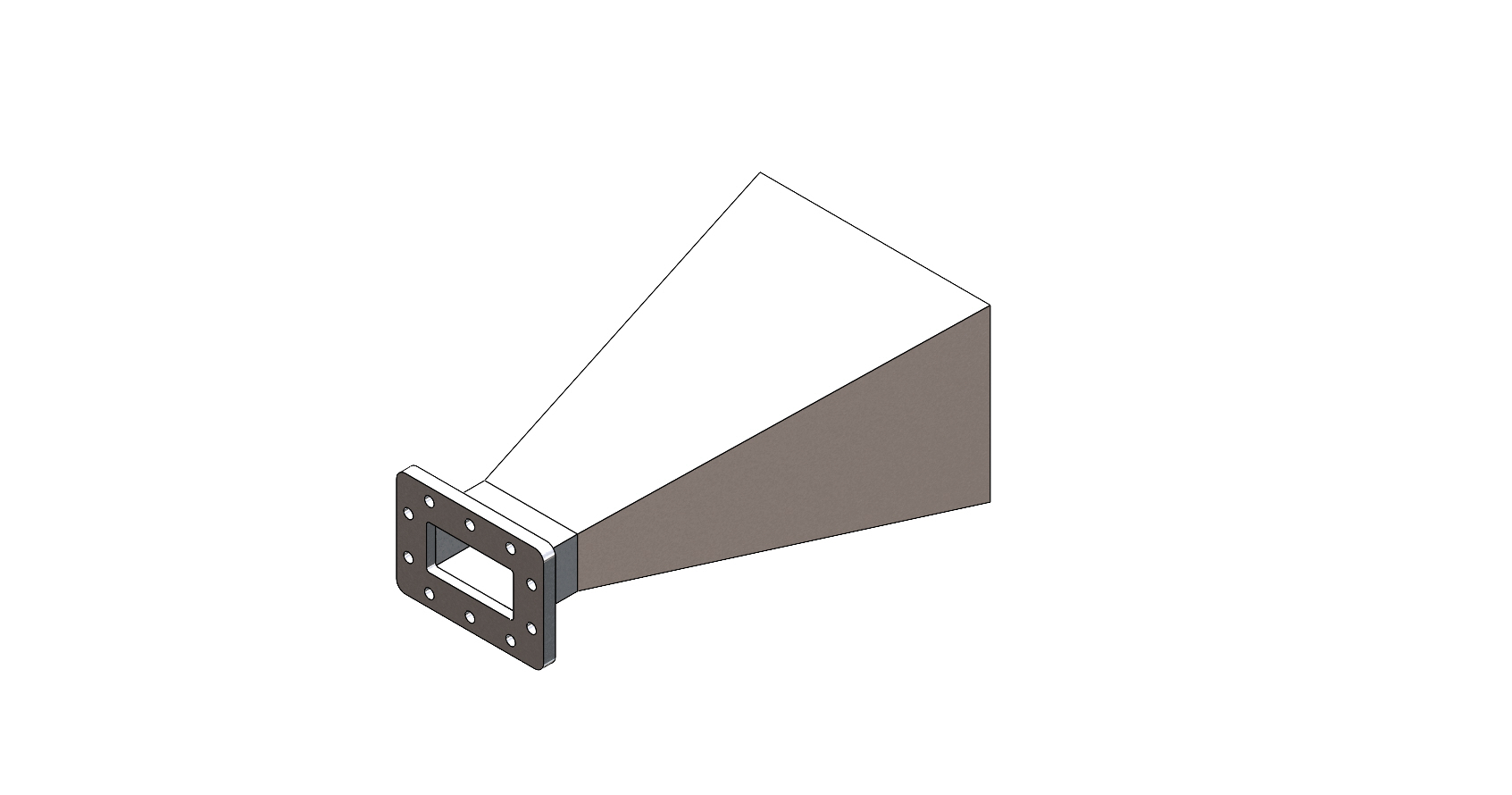

WR229 3.3 to 4.9GHz 15dbi Waveguide Horn Input Antenna, Flange: UDR

Model No: WI-229-UDR-15

Made in Taiwan
Frequency Range: 3.3 - 4.9 GHz
Standard Gain: 15 dBi
Max Power (W): 1000 Watts
Waveguide Size: WR-229 (UDR)
Stock: 5
2026/06/09
Color
Quantity:
INQUIRY

WR-229 High-Power Standard Horn Antenna

Precision C-Band Reference Radiator | CPR 229F/G Flange Interface | 3.3 GHz – 4.9 GHz
The WI-229-UDR-15 is a laboratory-grade microwave Standard Gain Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for high-power directional transmission, anechoic calibration routines, and radar system measurements across the continuous 3.3 GHz to 4.9 GHz C-Band spectrum. Meticulously optimized to handle intense thermal loads and preserve electromechanical phase center stability, this premium horn antenna delivers a flat nominal directive gain profile of 15 dBi combined with an exceptionally low maximum V.S.W.R threshold of 1.25 : 1. Precision CNC machined from high-grade structural aerospace aluminum alloy in Taiwan, the advanced launch architecture establishes a highly concentrated directional radiation footprint, providing narrow -3dB beamwidths of 32° in the H-plane and 31° in the E-plane matrix. Equipped with a standardized precision CPR 229F/G (UDR Compatible) Flange interface layout, this robust 600 g instrument ensures flawless leak-free electromechanical coupling, eliminates boundary signal leakage, and safely manages continuous wave power loads up to 1000 Watts (CW) with zero boundary degradation. Its optimized microscopic structural tolerances avoid destructive field distortion modes, rendering it the definitive choice for high-intensity EMI/EMC compliance sweeps, automated spectrum surveillance matrices, advanced radar simulation setups, and mission-critical Signal Defense deployments requiring uncompromised Signal Integrity paths.



Electrical & RF Performance
Frequency Range 3.3 GHz to 4.9 GHz (Continuous C-Band Support)
Waveguide Size Designation EIA WR-229 (R40 / WG11.2 Geometry Architecture)
Standard Nominal Gain 15 dBi
V.S.W.R Profile (Max) ≤ 1.25 : 1 (Precision Minimal Reflection Performance)
Maximum Power Handling 1000 Watts (1 KW CW Continuous Wave Power Capacity)
-3dB Beamwidth (H-Plane) 32° (Concentrated Boresight Focus Path)
-3dB Beamwidth (E-Plane) 31° (Exceptional Symmetrical Radiation Envelope)
Nominal System Impedance 50 Ohms (Coaxial Launch Mating Dependent)
Mechanical & Physical Specs

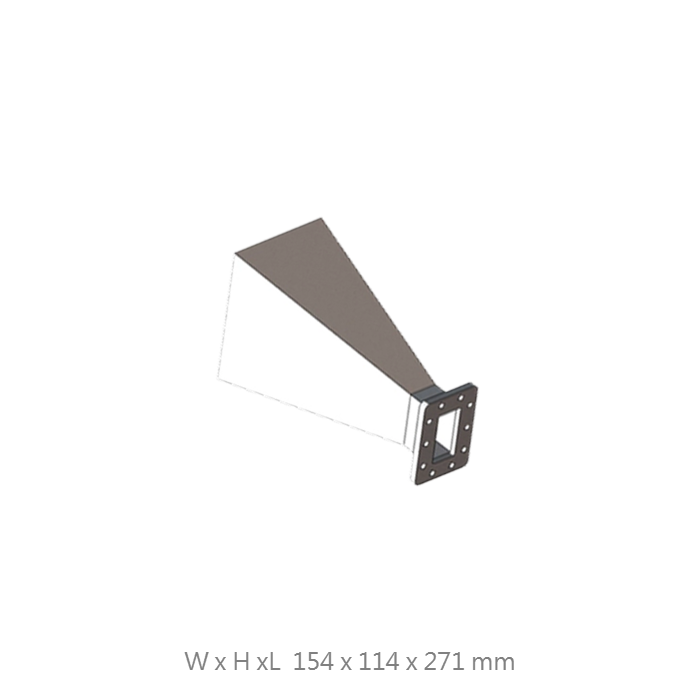

Physical Dimensions (W x H x L) 154 x 114 x 271 mm
Net Weight 600 g (Precision Lightweight Geometry Build)
Waveguide Flange Configuration Standard CPR 229F/G Layout (Universal Dual Ridged Style Compatible Interface)
Body Material Profile High-Grade Aerospace Aluminum Alloy Structure
Manufacturing Origin Taiwan Design & Made in Taiwan (FT-RF)



1000W High-Power Domination

Robustly engineered structural core effortlessly manages up to 1000 Watts (1 KW) of continuous wave (CW) power loads without experiencing thermal variance, providing an ultra-stable radiator for intensive Signal Security operations and high-power radar simulation environments.

Precision C-Band Directivity

Delivers a stable 15 dBi directive gain profile paired with highly symmetric 32° horizontal and 31° vertical beamwidths, providing the critical boresight target accuracy necessary for mission-critical antenna calibration factor adjustments.

Taiwanese Engineering Excellence

Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring absolute flange coplanarity, exact interior launcher tolerances, and reproducible measurement stability metrics.

Superior Signal Integrity

Advanced rectangular WR-229 internal flare geometry elements eliminate return loss mode anomalies across the full 3.3–4.9 GHz spectrum, creating a predictable radiation footprint for repeatable, traceable measurement results in professional lab settings.

Standardized Flange Interface

Equipped with a certified rectangular flat CPR 229F/G waveguide flange layout format, enabling secure, direct mechanical coupling without an adapter to optimize power transfer efficiency and minimize boundary signal leakage in mission-critical systems.

Request a Professional Quote

Contact our technical engineering division today to request official quote documents, individual certified calibration records, certified individual V.S.W.R plot sheets, precise structural mechanical drawings, or alternative waveguide flange configurations.
