Description & Specification

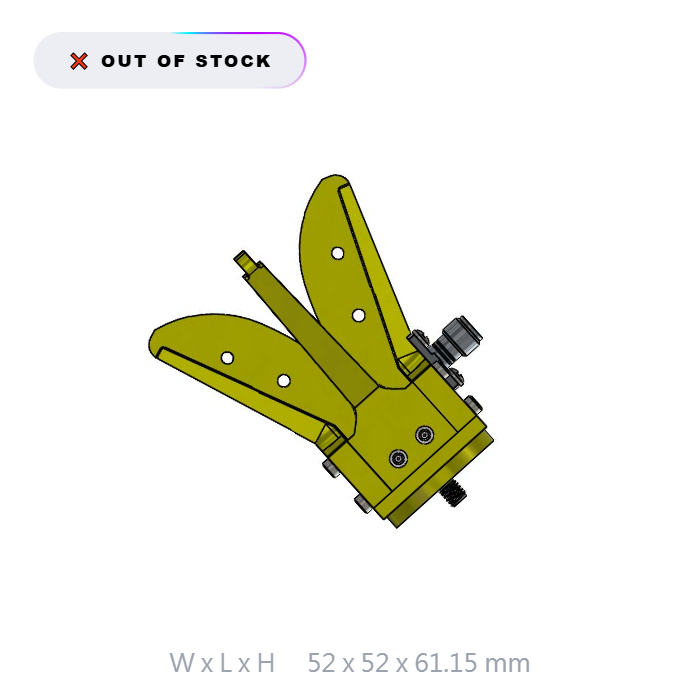

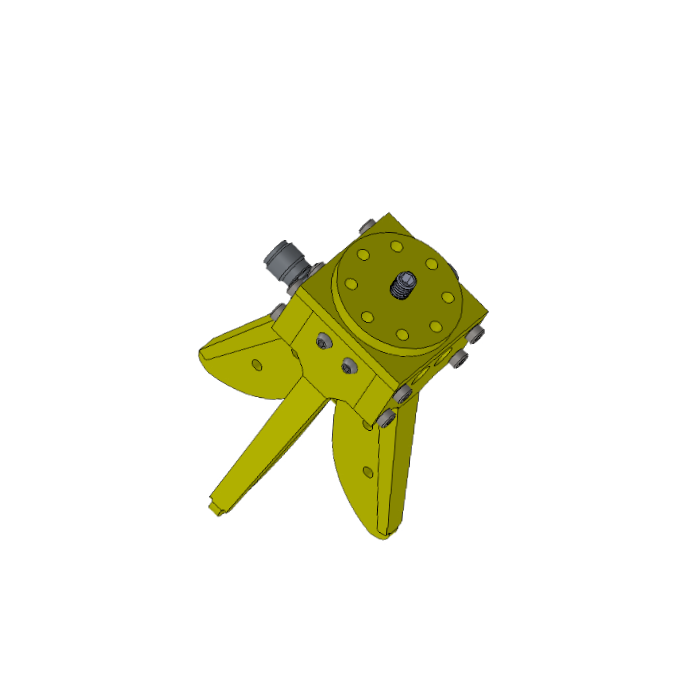

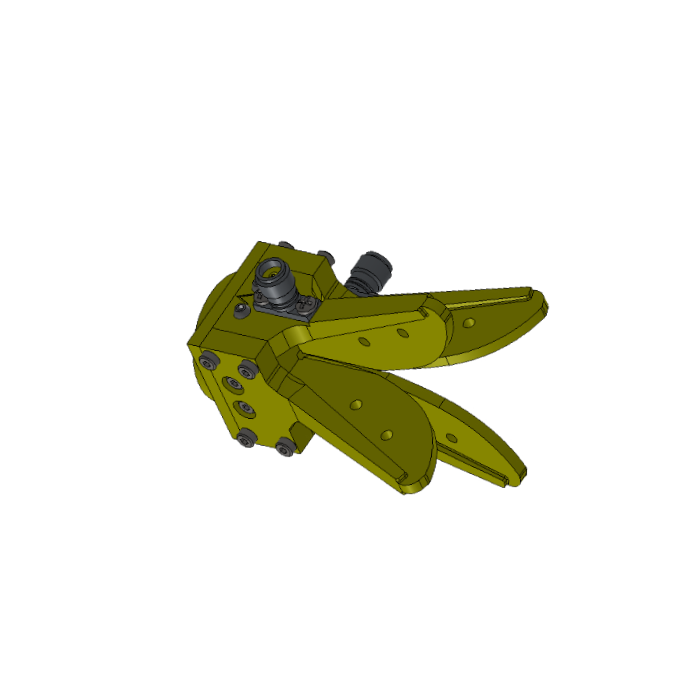

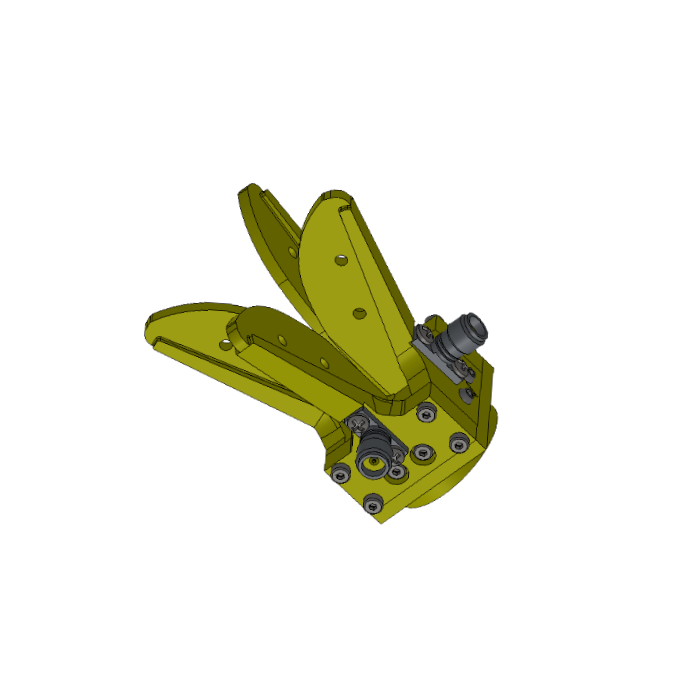

10 GHz to 50 GHz Open Boundary Quad-Ridged Horn Antenna
Broadband Precision | 1.85mm Female Connector | Model: HR-1050G-VF
HR-1050G-VF 是一款高精度開放式邊界四脊波導喇叭天線，專為 10 GHz 至 50 GHz 的專業寬頻測試而設計。此天線配備高品質 1.85mm (V) Female 接頭，確保在高頻段量測中具備優異的信號傳輸與極低損耗。其開放式結構經過優化，能顯著減少邊界干擾，是精密實驗室測量、EMC/EMI 測試及電波暗室應用的理想選擇。
Technical Specifications
| Frequency Range | 10 GHz to 50 GHz |
| Connector Style | 1.85mm Female (V) |
| Antenna Type | Open Boundary Quad-Ridged Horn |
| Dimensions (H x W x L) | 52 x 52 x 61.15 mm |
| Weight | ~194.81 g |
| Origin | Made in Taiwan |
超寬頻頻段覆蓋
覆蓋 10 GHz 至 50 GHz 的連續頻譜，支持各類高頻無線通訊、5G 及雷達系統開發量測需求。
開放式邊界結構
優化的物理幾何設計旨在最小化反射干擾，提供更純淨且穩定的輻射場型。
高精度台灣製造
產品於台灣精密製造，採用高品質組件確保測量的高度可重現性與長期信號完整性。
優化幾何設計確保專業高頻測量中的場型準確性與測量信心。
