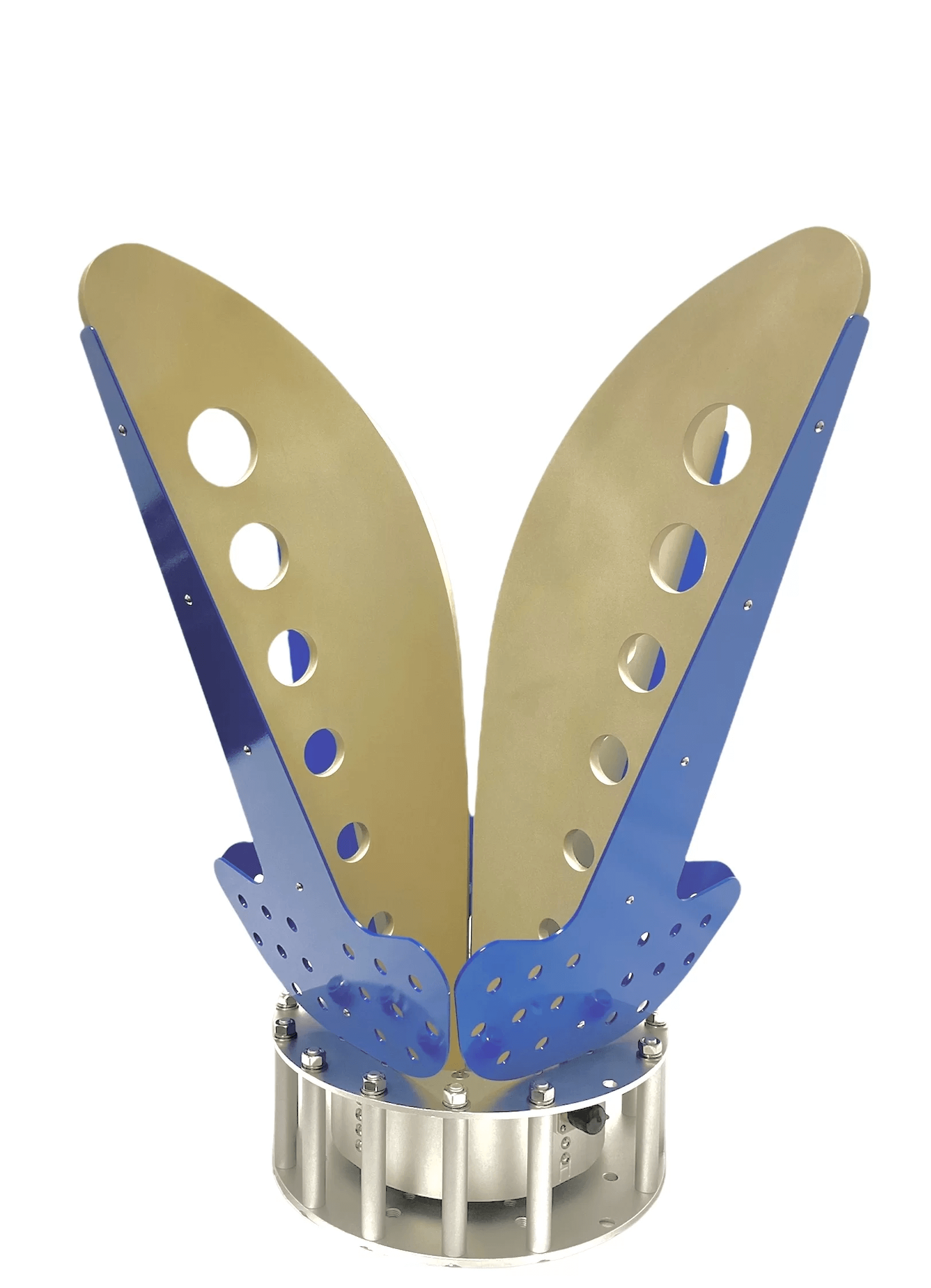

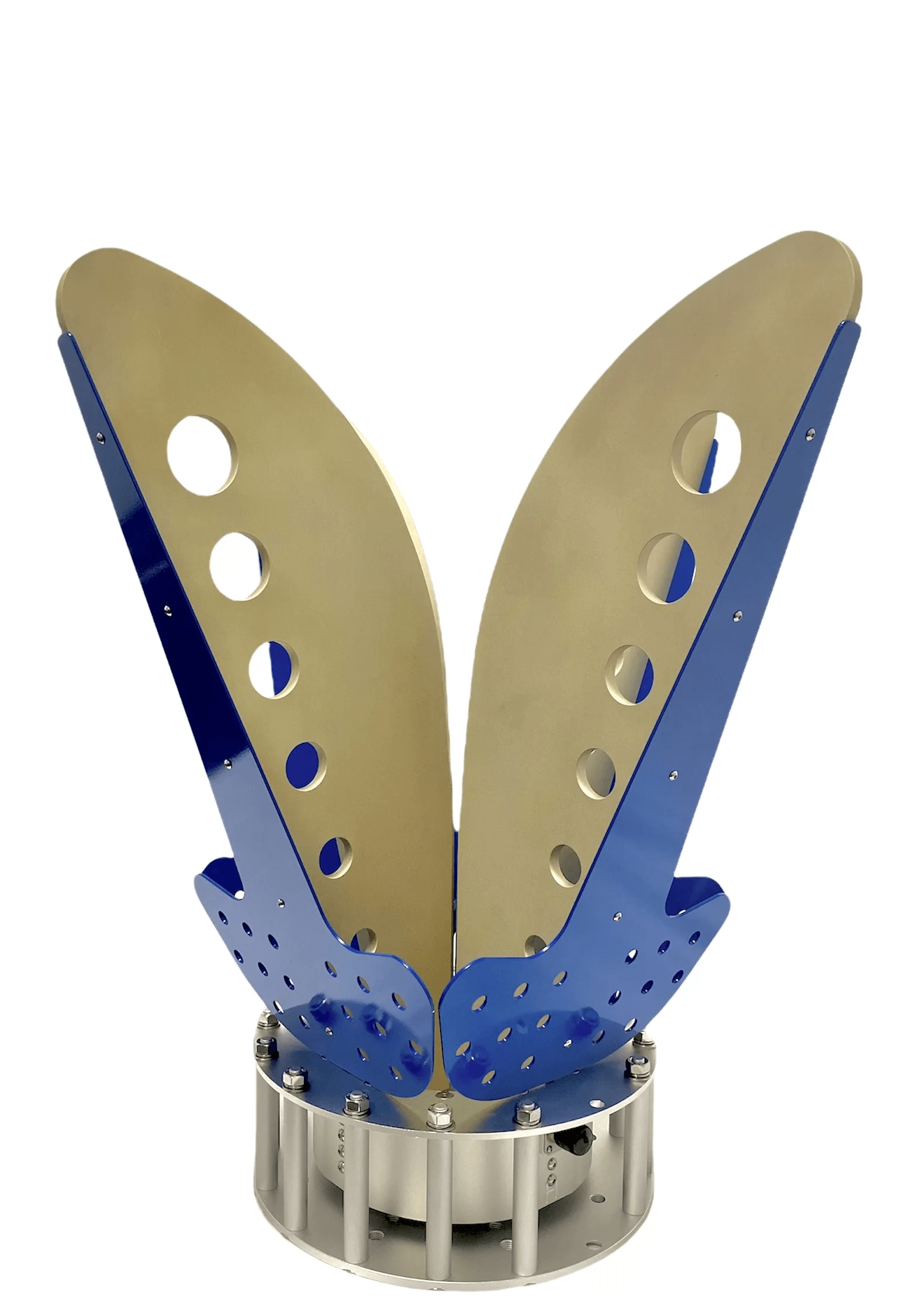

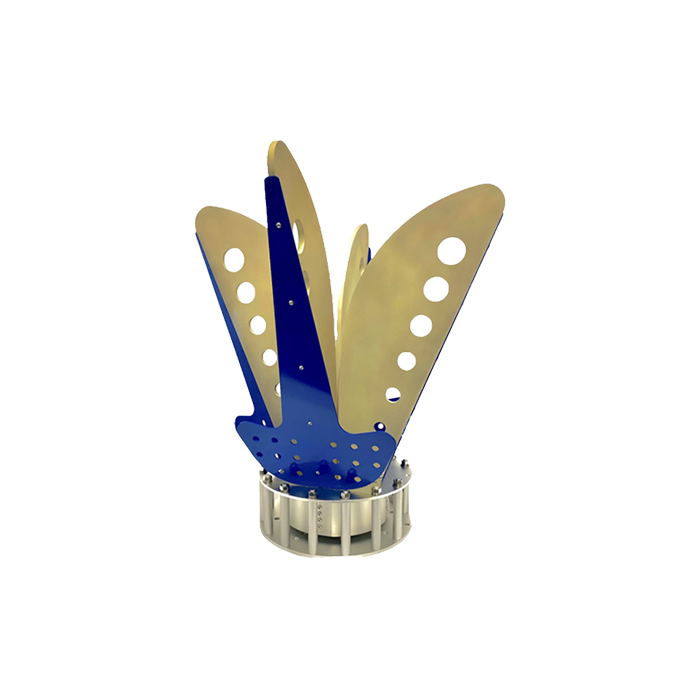

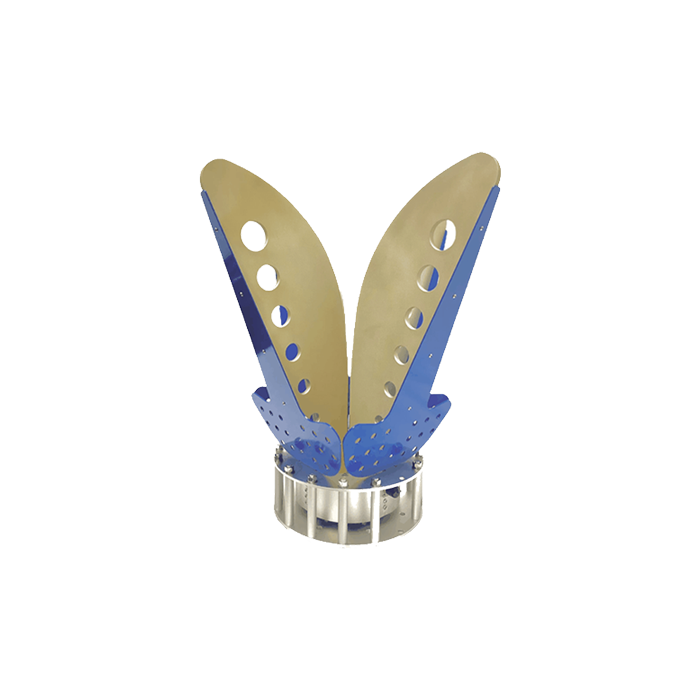

300 MHz to 6.5 GHz Open Boundary Quad-Ridged Horn Antenna
Model: HR-0365-NF | Dual Polarization | Professional Broadband Grade
The HR-0365-NF is a high-performance Open Boundary Quad-Ridged Horn Antenna professionally engineered for ultra-wideband applications from 300 MHz to 6.5 GHz. Constructed from premium 6061 Aluminum alloy with stainless steel N-female connectors, it offers exceptional structural integrity and electrical stability. This antenna features Dual-Polarization capability and DC Short Lightning Protection, making it an essential instrument for EMI/EMC testing, antenna gain measurements, and high-fidelity directional signal analysis in laboratory and industrial environments.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 300 MHz to 6.5 GHz |
| Antenna Type | Open Boundary Quad-Ridged Horn |
| Gain Profile | 1 dBi to 14 dBi |
| -3dB Beamwidth (H / V) | 47° / 46° |
| Polarization | Vertical & Horizontal / ±45° |
| V.S.W.R (Avg) | 2.5 : 1 |
| Maximum Power Handling | 50 Watts (CW) |
| Connector Interface | N-Female x 2 (Stainless Steel) |
Mechanical & Construction

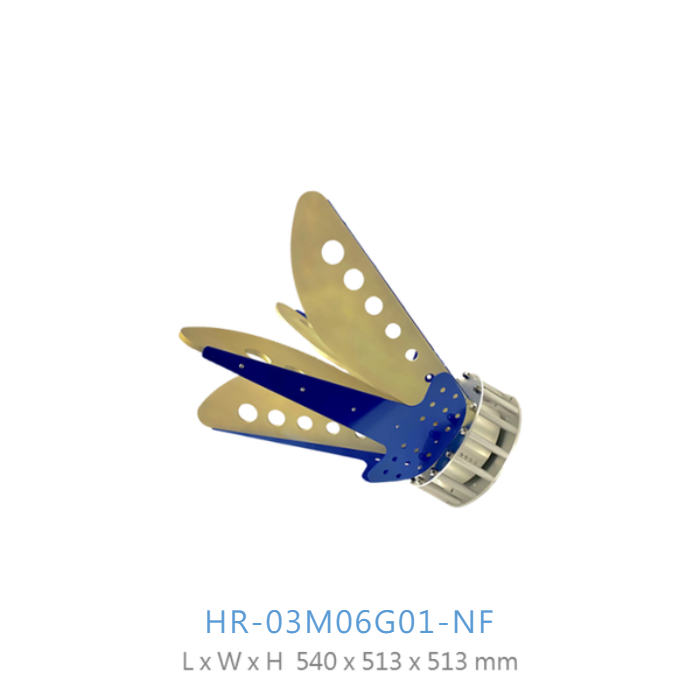

| Dimensions (W x H x L) | 540 x 513 x 513 mm |
| Body Material | Aerospace-Grade 6061 Aluminum Alloy |
| Mounting Interface | 8mm Screws Integration |
| Operating Temp Range | -10°C to +60°C |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
| Compliance | RoHS, WEEE, CE, FCC |
Key Tactical Features
Open Boundary Architecture
Designed with a specialized open boundary quad-ridged geometry to maintain high-fidelity broadband radiation patterns while significantly optimizing structural weight.
Superior Signal Integrity
Delivers uniform gain and stable boresight accuracy across the full 300MHz-6.5GHz band, ideal for complex spectrum monitoring and link characterization.
DC Short Lightning Safety
Integrated DC short protection ensures hardware safety and system survival during active Signal Defense operations and high-intensity measurement sessions.
Dual-Polarized Versatility
Equipped with dual N-Female feeds to capture orthogonal polarizations simultaneously, critical for advanced 5G Sub-6GHz and tactical radar diagnostic analysis.
Request a Professional Quote
Contact our engineering team to obtain individual isolation data, customized mounting plates, or technical support for wideband surveillance sub-systems.
