Description & Specification

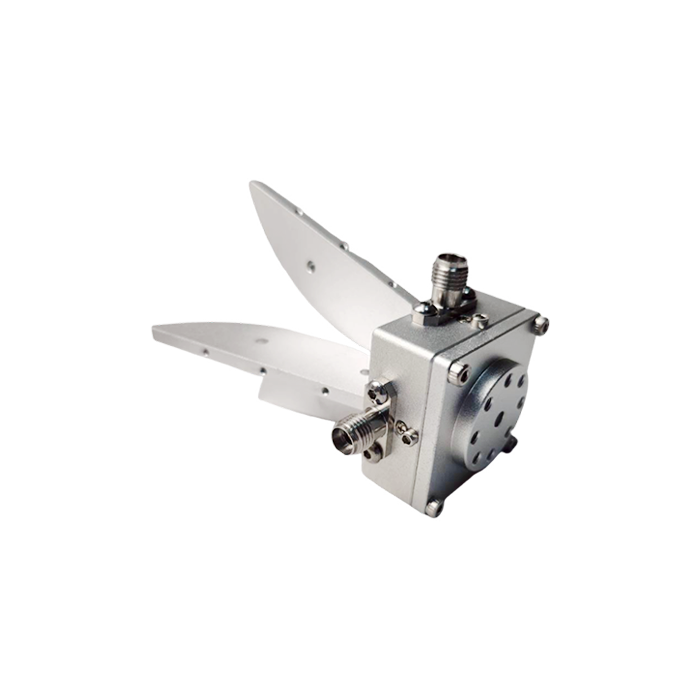

3.5 GHz to 40 GHz K-Female Double Ridged Broadband Waveguide Horn Antenna
Millimeter-Wave Precision | High-Frequency Performance | Model: HR-0340GA-KF
The HR-0340GA-KF is a high-performance Double Ridged Waveguide Horn Antenna specifically engineered for professional wideband RF testing across a broad 3.5 GHz to 40 GHz frequency range. This laboratory-grade antenna provides stable gain characteristics (8 to 15 dBi) and refined radiation patterns, making it an essential tool for high-frequency signal analysis, 5G development, and EMC/EMI testing. Featuring a high-precision K-Female (2.92mm) connector and robust construction, it ensures superior signal integrity and reliability. Expertly manufactured in Taiwan, it is built to meet the most demanding industrial and scientific calibration standards.
Technical Specifications
| Frequency Range | 3.5 GHz to 40 GHz |
| Antenna Gain | 8 to 15 dBi |
| VSWR | Typical 2.0 |
| Max Power (CW) | 50 W |
| Peak Power | 150 W |
| Connector Style | K-Female (2.92mm) |

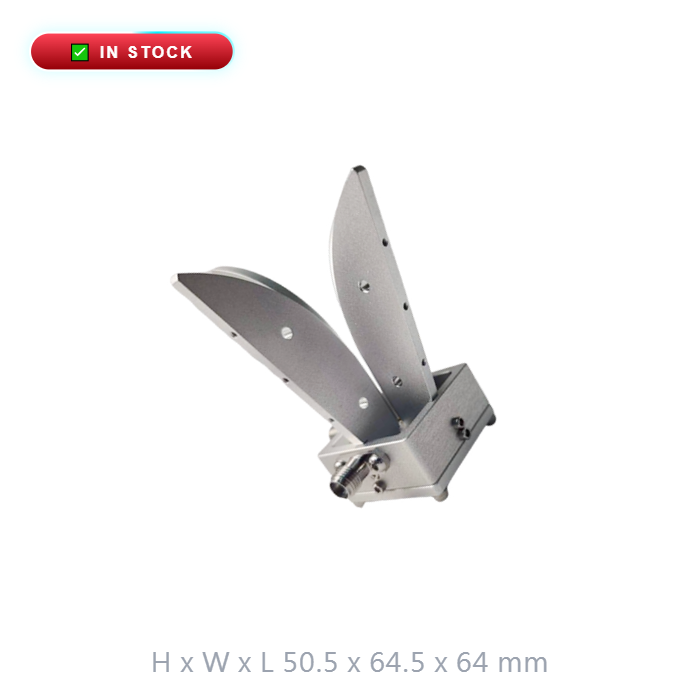

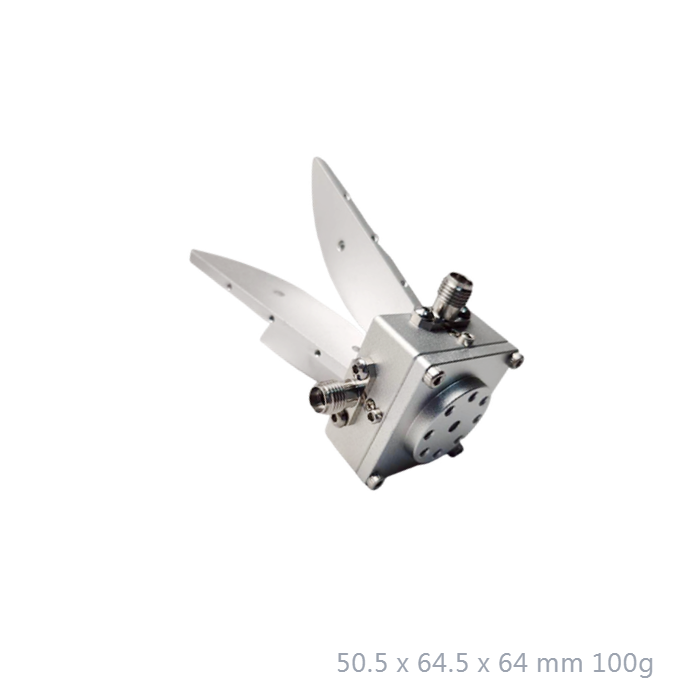

| Dimensions (H x W x L) | 50.5 x 64.5 x 64 mm |
| Weight | 100 g |
| Origin | Made in Taiwan |
Ultra-Wideband Coverage
Seamlessly covers 3.5 GHz to 40 GHz, providing a single-antenna solution for modern high-frequency wireless communications and radar system analysis.
Precision K-Type Interface
Equipped with a high-grade 2.92mm interface to ensure low insertion loss and excellent signal transmission across millimeter-wave frequencies.
Taiwanese Engineering Excellence
Precision-manufactured in Taiwan with rigorous quality control, ensuring consistent directional performance and durability in demanding lab environments.
Optimized double ridged geometry ensures stable gain and pure radiation patterns for professional microwave testing applications.
