WR284 Standard Gain Horn Antenna (HS Series)
- Select
HS Series • S-Band (2.60 – 3.95 GHz)

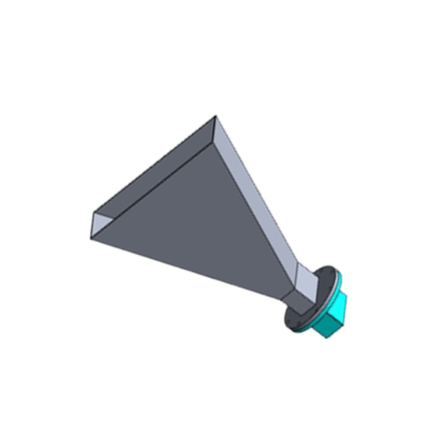

FT-RF WR284 Standard Gain Horn Antenna
FT-RF WR284 Standard Gain Horn Antennas (HS Series) provide calibrated reference gain standards across S-band spectrums (2.60 GHz to 3.95 GHz). Featuring an integrated waveguide-to-coaxial adapter with N-type female connectors, they ensure precise antenna gain evaluation and weather radar range testing.
Manufactured from heavy-duty aluminum alloys with reinforced wall geometry, the WR284 HS series provides high structural rigidity and predictable gain performance across its full operational frequency band.
🛠️ Engineering & Customization Options
Tailored structural designs and calibration deliverables:
- Individual Calibration: Traceable gain & pattern data.
- Custom Gain Steps: Tailored gain profiles.
- Matched Sets: Precision dual-channel pairs.
Direct Support: info-tw@ft168.com.tw
| Parameter | Technical Specifications |
|---|---|
| Frequency Range | 2.60 GHz to 3.95 GHz (S-Band) |
| Nominal Gain Options | 10 dBi, 15 dBi, 20 dBi, 25 dBi |
| Coaxial Interface | Integrated Heavy-Duty N-Type Female Adapter |
| Flange Type | CPR284F / FDP26 Cover Flange |
| Certifications | ISO 9001:2015 / RoHS Compliant |
HS-284-UDR-10E-NF
WR284 (2.6 to 3.95GHz) 10dbi E-Plane Sector Standard Waveguide Gain Horn Flange, UDR N-Female Antenna
View Details
FT-RF
| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR137 / Standard Flange |
| Stock: | 0 |
| 2026/08/21 | |
HS-284-UDR-15E-NF
WR284 (2.6GHz to 3.95GHz) 15dbi E-Plane Sector Standard Waveguide Gain Horn Antenna /Flange:UDR
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Gain (Typical): | 15 dBi |
| Peak Power (CW): | 280 Watts |
| Stock: | 0 |
| 2026/06/17 | |
HS-284-UDR-10H-NF
WR284( 2.6GHz to 3.95GHz ) 10dbi H-Plane Sector Standard Waveguide Gain Horn Antenna, Flange: UDR
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Gain (Typical): | 10 dBi |
| Peak Power (CW): | 360 Watts |
| Stock: | 0 |
| 2026/06/17 | |
HS-284-UAR-20A-NF
WR284 (2.6 to 3.95GHz) 20dbi N-Female Standard Gain Waveguide Horn Flange: UAR
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Gain (Typical): | 20 dBi |
| Peak Power (CW): | 300 Watts |
| Stock: | 0 |
| 2026/06/17 | |
HS-284-UAR-15E-NF
WR284 (2.6 to 3.95GHz) 15dbi E-Plane Sector N-Female Standard Gain Waveguide Horn Flange:UAR
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR284 / Standard Flange |
| Stock: | 0 |
| 2026/08/21 | |
HS-284-UAR-15A-NF
WR284 (2.6GHz to 3.95GHz)15dbi Standard Gain Waveguide Horn Antenna Flange: UAR
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi Typical |
| Waveguide Size: | WR284 / Standard Flange |
| Stock: | 0 |
| 2026/08/21 | |
HS-284-UAR-10H-NF
WR284( 2.6GHz to 3.95GHz ) 10dbi H-Plane Sector Standard Waveguide Gain Horn Antenna, Flange:UAR
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Gain (Typical): | 10 dBi |
| Peak Power (CW): | 360 Watts |
| Stock: | 0 |
| 2026/06/17 | |
HS-284-UAR-10E-NF
WR284(2.6 to 3.95GHz) 10dbi E-Plane Sector N-Female Standard Gain Waveguide Horn, Flange: UAR
View Details
FT-RF
| Frequency Range: | 5.85 - 8.2 GHz |
| Gain (Typical): | 10 dBi |
| Peak Power (CW): | 800 Watts |
| Stock: | 0 |
| 2026/06/17 | |
HS-284-UAR-10A-NF
WR284(2.6GHz to 3.95GHz) 10dbi Standard Waveguide Gain Horn, N-Female Antenna, Flange: UAR
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi (56°×56°) |
| Waveguide Size: | WR-284 (UAR Flange) |
| Stock: | 0 |
| 2026/06/22 | |
HS-284-UDR-10A-NF
WR284 2.6GHz to 3.95GHz 10dbi Standard Gain Waveguide Gain Horn Antenna, Flange: UDR N-Female
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Waveguide size / Flange: | WR-284 / Standard UDR |
| Antenna Gain / Style: | 10 dBi / Standard Gain Horn |
| Max CW Power / Connector: | 300 Watts / Stainless N-Female |
| Lead Time: | info-tw@ft168.com.tw |
| Stock: | 0 |
| 2026/06/23 | |
HS-284-UDR-15A-NF
WR284 2.6GHz to 3.95GHz 15dbi Standard Gain Horn Antenna, UDR Flange N-Female
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi |
| Waveguide Size: | N-Female (Stainless Steel) |
HS-284-UDR-20A-NF
WR284 2.6GHz to 3.95GHz 20dbi Standard Gain Horn Antenna, UDR Flange N-Female
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Waveguide Type: | WR-284 / UDR |
| Nominal Gain: | 20 dBi |
| Connector Port: | N-Female |
