HS-284-UAR-10H-NF Sector Horn Antenna
S-Band Monitoring | 92° Wide E-Plane | Professional RF Grade
The HS-284-UAR-10H-NF is a high-performance S-band standard gain horn antenna engineered for the 2.6 GHz to 3.95 GHz frequency range. Featuring a specialized 92° wide E-plane radiation profile, this antenna is built for altitude monitoring, broad elevation scanning, and high-power laboratory RF deployments. Its robust aluminum architecture and precision waveguide construction ensure reliable performance and structural integrity in demanding environments.
Electrical & RF Performance
| Frequency Range | 2.6 - 3.95 GHz |
| Gain (Typical) | 10 dBi |
| Peak Power (CW) | 360 Watts |
| V.S.W.R (Max) | 1.3 : 1 |
| 3dB Beamwidth (H/E) | 28° / 92° |
| Connector Interface | N-Female |
| Waveguide / Flange | WR-284 / UAR |
Mechanical & Physical

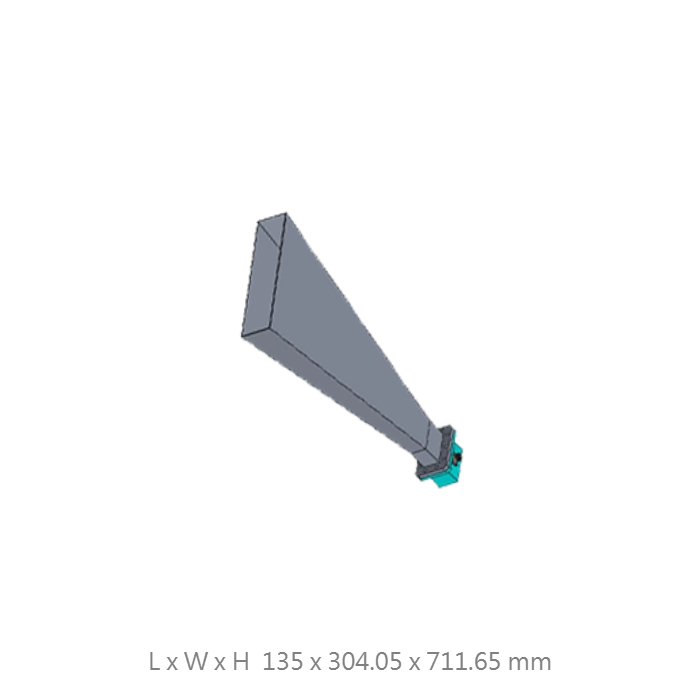

| Dimensions | 135 x 304.05 x 711.65 mm |
| Weight | 2200 g |
92° Vertical Sector Coverage
Specialized E-plane radiation pattern optimized for altitude monitoring and wide-elevation signal security in S-band tactical deployments.
High CW Capacity
Robust aluminum architecture and precision waveguide construction handle 360W continuous wave transmission with superior thermal management.
Aerospace CNC Integrity
Precision-machined from high-grade aluminum alloy to ensure mechanical reliability and a stable 10 dBi gain across the entire S-band spectrum.
