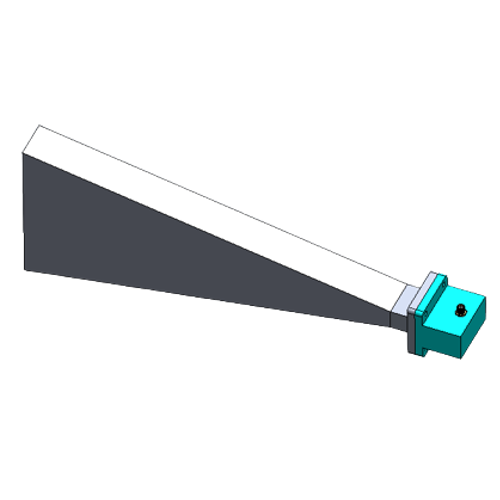

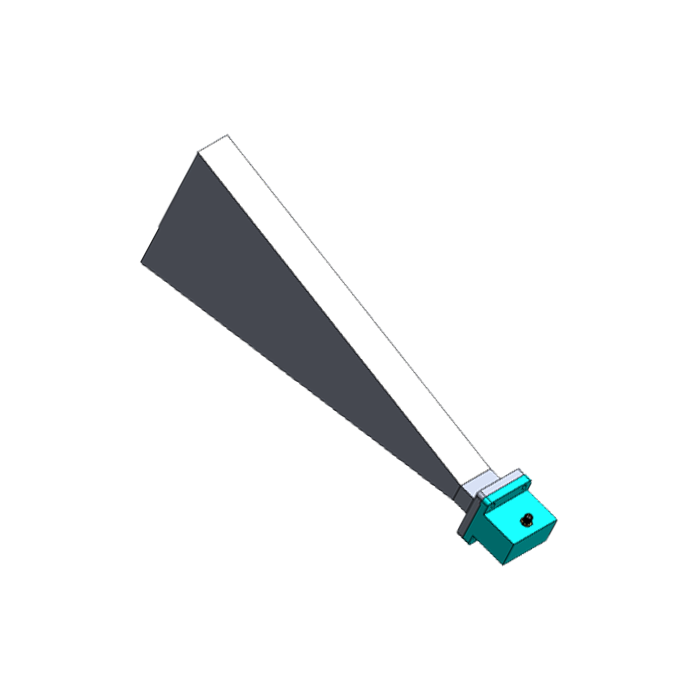

WR-112 E-Plane Sectoral Horn Antenna with SMA Adapter
Model: HS-112-UBR-15E-SF | 7.05 - 10.0 GHz | 15 dBi | 500W
The HS-112-UBR-15E-SF is a high-precision Sectoral Horn Antenna expertly flared in the E-plane to deliver a wide H-plane coverage of 80°. Operating within the 7.05 GHz to 10.0 GHz X-Band spectrum, this antenna system integrates a precision waveguide-to-coaxial adapter with a durable Stainless Steel SMA-Female interface. Precision-manufactured from high-grade aluminum, it manages robust power loads up to 500W, making it an essential radiator for EMI/EMC Testing, antenna calibration, and advanced Signal Defense operations where broad sectoral illumination is required.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-112 (R84) |
| Antenna Type | E-Plane Sectoral Horn |
| Frequency Range | 7.05 GHz to 10.0 GHz |
| Standard Gain | 15 dBi |
| Maximum Power Handling | 500 Watts (CW) |
| V.S.W.R (Max) | 1.25 : 1 |
| -3dB Beamwidth (H / E Plane) | 80° / 16° |
Mechanical & Physical Specs

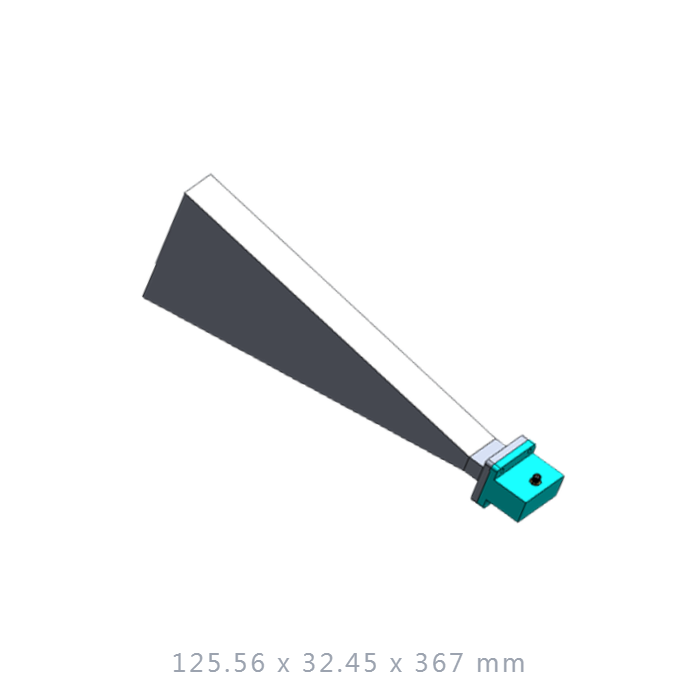

| Dimensions (WxHxL) | 125.56 x 32.45 x 367 mm |
| Net Weight | 490 g |
| Waveguide Flange | UBR Style |
| Coaxial Connector | SMA-Female (Stainless Steel / SUS) |
| Material | High-Grade Aluminum |
| Origin | Made in Taiwan (FT-RF) |
Key Tactical Features
Sectoral Field Generation
The E-plane flare design provides a massive 80° H-plane coverage, ideal for broad-area illumination in EMC susceptibility testing or wide-angle surveillance.
500W High-Power Stability
Engineered to handle robust continuous power loads, providing a reliable radiator for high-intensity laboratory testing and tactical signal dominance.
Heavy-Duty SUS Interface
Equipped with a high-durability stainless steel SMA interface, ensuring reliable electrical contact and structural wear resistance for repeated lab use.
Customizable Infrastructure
Available with options for waterproof builds, PTZ control functions, and specialized mounting designs to meet specific outdoor tactical requirements.
Get a Quote / Custom RF Solutions
Contact us for specialized PTZ control, waterproof structures, or custom mounting interfaces.
