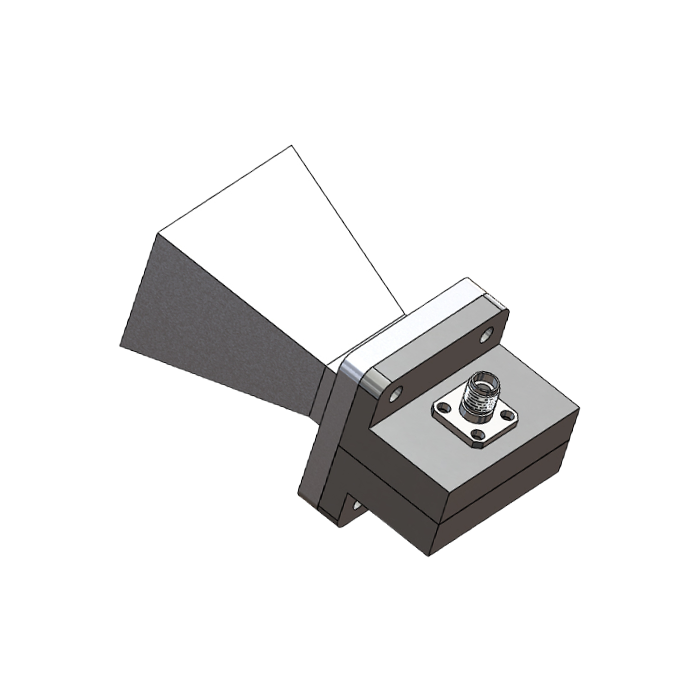

WR-75 Standard Gain Horn Antenna with SMA Adapter
Model: HS-075-UBR-10-SF | 10.0 - 15.0 GHz | 10 dBi | 250W
The HS-075-UBR-10-SF is a high-precision Ku-Band Standard Gain Horn Antenna integrated with a low-loss waveguide-to-coaxial adapter. Operating within the 10.0 GHz to 15.0 GHz frequency range, this antenna delivers a consistent 10 dBi gain and exceptional VSWR (1.25). Precision-manufactured from high-grade aluminum with a durable Stainless Steel SMA-Female interface, it is an essential instrument for EMI/EMC Testing and antenna gain measurement, ensuring superior Signal Integrity for mission-critical laboratory and field deployments.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-75 (R120) |
| Frequency Range | 10.0 GHz to 15.0 GHz |
| Standard Gain | 10 dBi |
| Maximum Power Handling | 250 Watts (CW) |
| V.S.W.R (Max) | 1.25 : 1 |
| -3dB Beamwidth (H / E Plane) | 54° / 54° |
Mechanical & Physical Specs

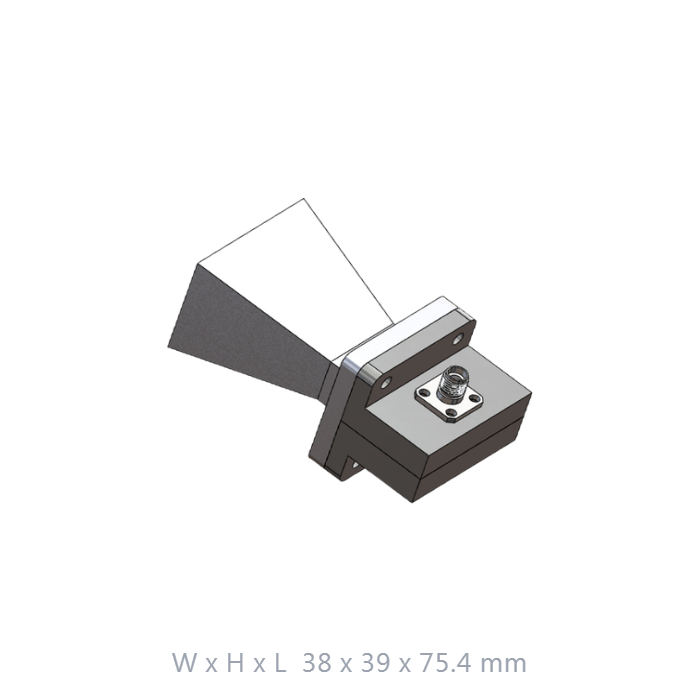

| Dimensions (WxHxL) | 38 x 39 x 75.4 mm |
| Net Weight | 75 g |
| Waveguide Flange | UBR 120 (M3922/70-004 Compatible) |
| Coaxial Connector | SMA-Female (Stainless Steel / SUS) |
| Material | High-Grade Aluminium |
| Origin | Made in Taiwan (FT-RF) |
Key Tactical Features
Uniform Gain & Pattern Control
Optimized for the 10.0-15.0 GHz band, delivering symmetrical 54° beamwidths and the boresight accuracy required for high-fidelity antenna calibration.
Heavy-Duty SUS Interface
Equipped with a high-durability stainless steel SMA-Female connector, ensuring reliable electrical contact and structural wear resistance for repeated lab use.
Ultra-Lightweight Build
Weighing only 75g, this compact horn antenna ensures minimal load on precision laboratory positioners while maintaining high structural rigidity.
Customizable Infrastructure
Available with options for waterproof builds, PTZ control functions, and specialized mounting designs to meet specific outdoor tactical requirements.
Get a Quote / Custom RF Solutions
Contact us for specialized PTZ control, waterproof structures, or custom mounting interfaces.
