10 GHz to 15 GHz WR-75 Standard Gain Horn Antenna
Model: HS-075-UBR-20-NF | 20 dBi Gain | N-Female Connector
The HS-075-UBR-20-NF is a high-precision WR-75 Waveguide Horn Antenna professionally engineered for Ku-Band microwave applications within the 10 GHz to 15 GHz spectrum. Optimized for professional Signal Security operations and high-fidelity laboratory testing, it delivers a consistent 20 dBi gain profile. Featuring a ruggedized aluminum body and a precision stainless steel N-Female connector, this antenna ensures unwavering Signal Integrity and stability for advanced Signal Defense deployments and radar system measurements.
Technical Specifications
Electrical Performance
| Waveguide Standard | WR-75 (WG17 / R120) |
| Frequency Range | 10 GHz - 15 GHz |
| Nominal Gain | 20 dBi |
| V.S.W.R (Max) | 1.25 : 1 |
| -3dB Beamwidth (H / E Plane) | 18° / 19° |
| Maximum Power Handling | 250 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

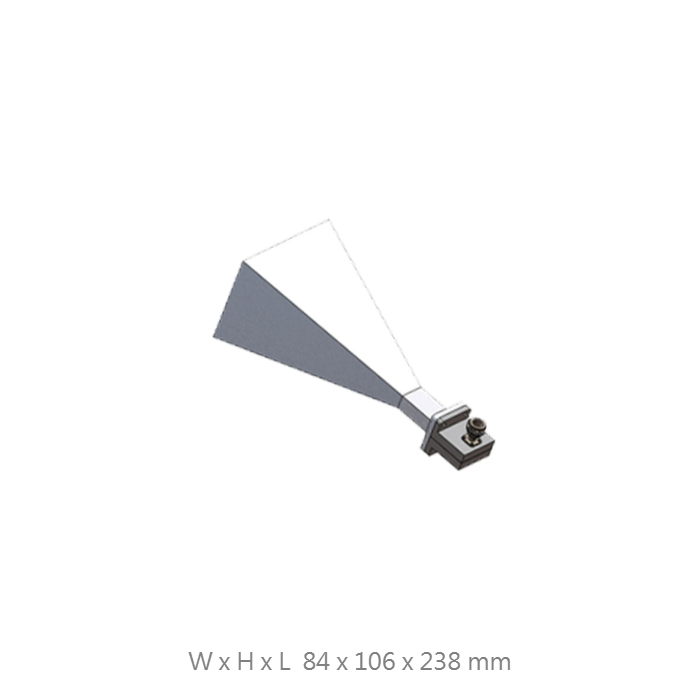

| Dimensions (W x H x L) | 84 x 106 x 238 mm |
| Net Weight | 180 g (Precision Design) |
| Waveguide Flange | UBR 120 (M3922/70-004/005) |
| Body Material | High-Grade Aluminum |
| Connector Type | N-Female (Stainless Steel SUS) |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical & Lab Features
Precision Signal Integrity
Optimized internal transition geometry ensures minimal signal reflection and low insertion loss across the entire Ku-Band spectrum for repeatable lab results.
Ruggedized SUS Interface
Equipped with a high-durability stainless steel N-Type connector to provide repeatable mechanical coupling and superior electrical stability in demanding field environments.
Ku-Band Spectrum Security
Engineered to support Signal Defense infrastructure, providing a reliable reference radiator for interference mitigation and professional signal management.
Standardized UBR 120 Flange
Fully compliant with international waveguide standards for secure mechanical integration into existing professional microwave sub-systems and test fixtures.
Request a Professional Quote
Contact our engineering team to obtain individual calibration data, VSWR plots, or customized waveguide flange requirements.
