Description & Specification

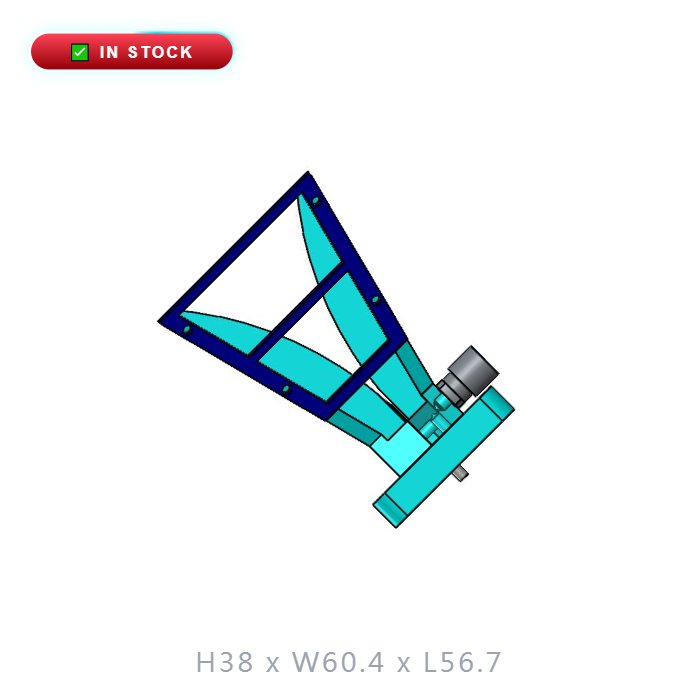

HA-1040GC-KF Double Ridged Horn Antenna
10 - 40 GHz | Millimeter-Wave Grade | Ultra-Wideband
The HA-1040GC-KF is a precision-engineered Double Ridged Waveguide Horn Antenna developed for professional RF measurement and testing across the 10 GHz to 40 GHz frequency spectrum. This laboratory-grade antenna provides stable gain characteristics (8 to 15 dBi) and refined radiation patterns, making it an essential tool for high-frequency signal analysis, EMC/EMI testing, and millimeter-wave system calibration. Featuring a high-quality K-Female (2.92mm) connector and a compact, durable construction, it ensures exceptional signal integrity in demanding scientific applications.
Electrical & RF Performance
| Frequency Range | 10 GHz - 40 GHz |
| Nominal Gain | 8 dBi - 15 dBi |
| Max Power Handling | 50 Watts (CW) |
| VSWR | Typical 2.0 |
| Connector Type | K-Female (2.92mm) |
Mechanical & Physical
| Dimensions | 32 x 33 x 52 mm |
| Weight | 60 g |
| Body Material | Machined Aluminum |
Millimeter-Wave Ultra-Wideband
Seamlessly covers the 10 GHz to 40 GHz range, providing a wide bandwidth solution for modern wireless communications and radar testing.
Precision K-Type Interface
Equipped with a high-grade 2.92mm (K) connector to ensure low insertion loss and stable connectivity across high-frequency bands.
Compact Engineering
Precision-manufactured with a lightweight 60g design, optimized for integration into probe stations and portable laboratory setups.
Stable Radiation Patterns
Optimized double ridged geometry ensures stable gain and pure radiation patterns for critical high-frequency microwave measurements.
Contact FT-RF Engineering Division
Contact our engineering team to obtain individual gain charts, VSWR plots, or custom mounting configurations.
