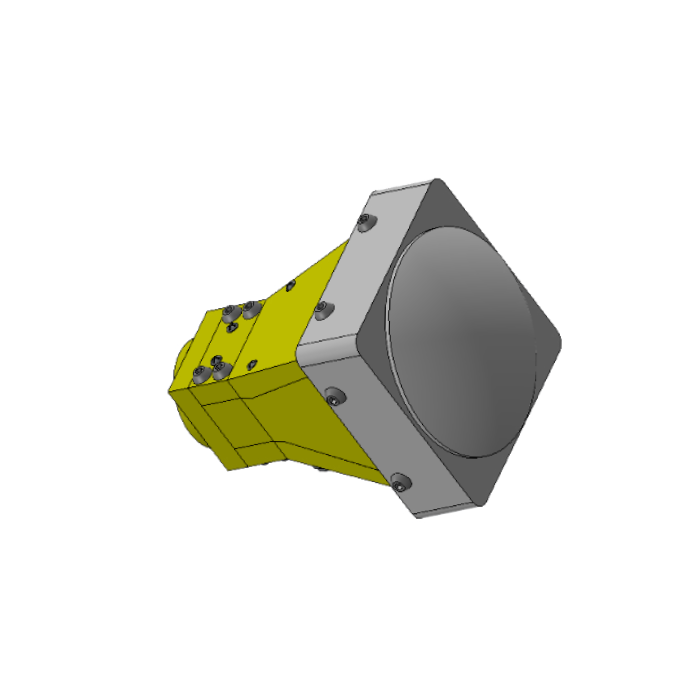

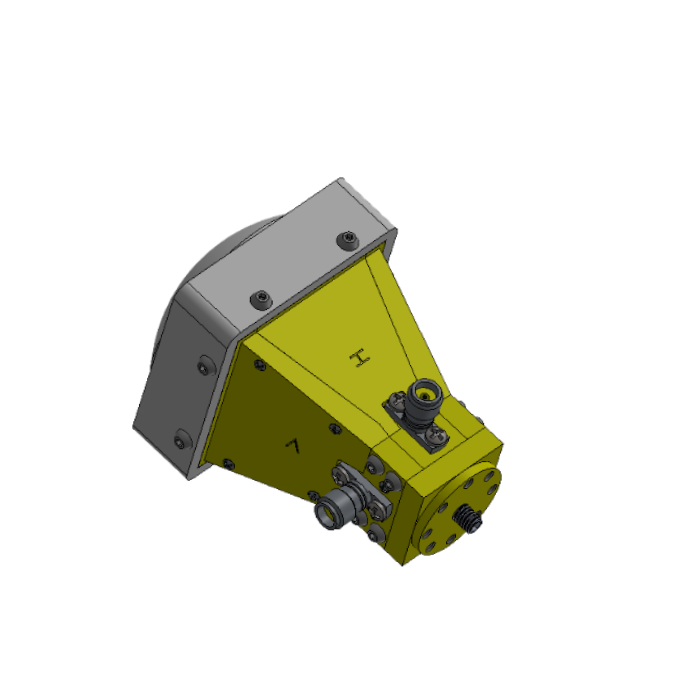

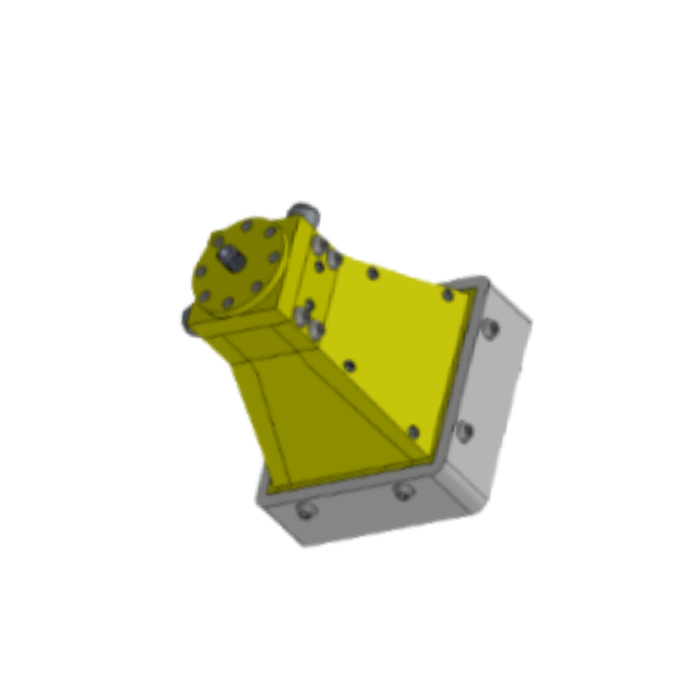

8 GHz to 70 GHz LENS Dual-polarized Horn Antenna
LENS Technology | Dual-Polarization | Model: HQ-0870GA-VF
The HQ-0870GA-VF is a state-of-the-art LENS Dual-polarized Horn Antenna engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for high-precision wideband RF testing. Operating within an extensive frequency range across the continuous 8 GHz to 70 GHz spectrum, this specialized antenna utilizes advanced LENS technology to provide exceptional gain stability (10 to 24 dBi) and refined, symmetrical radiation patterns. Featuring a high-performance V-Female (1.85mm) connector, it supports dual-polarization measurements, making it an indispensable tool for 5G development, millimeter-wave analysis, and advanced EMC/EMI testing. Expertly crafted from premium materials in Taiwan, it ensures top-tier signal integrity and measurement reliability for demanding professional laboratory environments where total transmission stability must be maintained flawlessly.
Electrical & RF Performance
| Frequency Range Class | 8 GHz to 70 GHz (Continuous S-Band to Ka-Band Ultra-Wideband Optimization) |
| Antenna Gain (Typical) | 10 to 24 dBi |
| Max Power Handling (CW) | 5 W (Continuous Wave Thermal Limit) |
| Peak Power Handling | 25 W |
| Connector Style Interface | V-Female (High-Grade Precision 1.85mm Port) |
| Measurement Support | Dual-Polarization Configuration |
Mechanical & Environmental Data

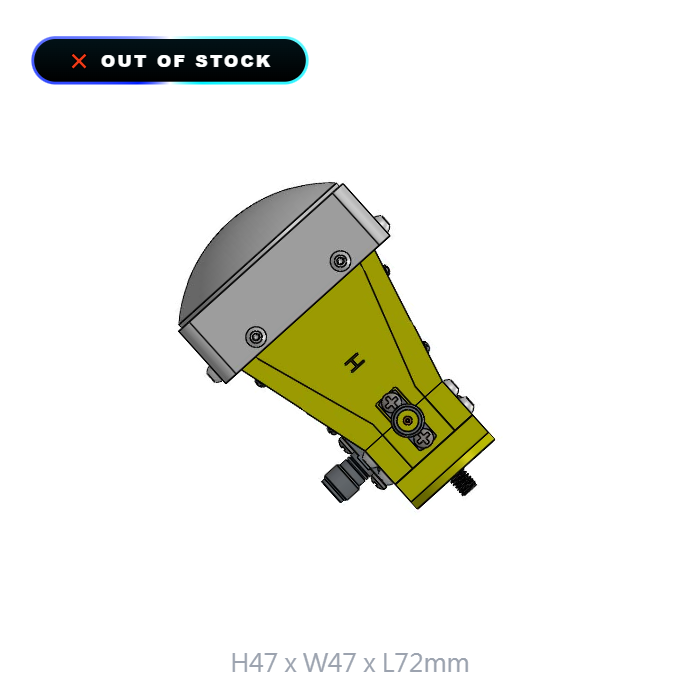

| Physical Dimensions (H x W x L) | 47 x 47 x 72 mm |
| Net Weight Profile | ~ 280 g |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
Ultra-Wideband with LENS
Covers a continuous range from 8 GHz to 70 GHz, using integrated LENS technology to enhance gain metrics and optimize radiation characteristics across millimetric bands.
Dual-Polarization Support
Enables simultaneous measurement of multiple signal polarizations, providing comprehensive RF analysis capabilities for next-generation 5G system validation.
Precision Millimeter-wave Design
Expertly crafted in Taiwan with a premium 1.85mm interface, ensuring low VSWR thresholds and incredibly stable performance in professional calibration environments.
Exceptional Accuracy
Advanced LENS geometry ensures exceptionally pure radiation patterns and precise beam tracking required for critical high-frequency aerospace measurements.
Inquire About Antenna Solutions
Contact our technical engineering division today to request official quote sheets, certified individual radiation plots, or specialized millimeter-wave custom structures.
