WR28 Standard Gain Horn Antenna
- Select
NEW
HS-028-UBR-10H-KF
WR28 26.5 GHz to 40GHz 10dbi Standard Gain H-Sectoral Flange: UBR Waveguide Horn Antenna
View Details
- Waveguide: WR-28
- Frequency: 26.5 to 40GHz
- Gain: 10 dbi
- Max Power (W): 250W
HS-028-UBR-10A-KF
WR-28 Standard Gain Waveguide Horn Antenna 26.5GHz to 40GHz, 10dbi, K-Female connector, UBR Waveguide flange
View Details
- Waveguide Type: WR-28
- Frequency: 26.5GHz to 40GHz
- Waveguide Coaxial Adapter Model: WC-28-UBR-A1-KF
- Waveguide input Model: WI-28-UBR-10
- Connector:K-Female
- V.S.W.R: 1.25
- Gain: 10 dBi
- Wieght(g):20
- Size(mm): 19.1x26.5x59
HS-028-UBR-15E-KF
WR28 Standard Gain Waveguide Horn Antenna, E-Plane Sectoral, 26.5 GHz to 40 GHz , 15 dbi gain, UBR Flange,
View Details
- Waveguide: WR-28
- Frequency: 26.5 to 40GHz
- Gain: 15 dbi
- Max Power (W): 250W
HS-028-UBR-15A-KF
WR28 Standard Gain Horn Antenna from 26.5GHz to 40GHz, 15dbi Gain, 2.92mm-Female Connector, UBR Flange
View Details
- Waveguide Type: WR-28
- Frequency: 26.5GHz to 40GHz
- Waveguide Coaxial Adapter Model: WC-28-UBR-A1-KF
- Waveguide input Model: WI-28-UBR-15
- Connector:K-Female
- V.S.W.R: 1.25
- Gain: 15 dBi
- Wieght(g):19
- Size(mm): 25.5x22x64
HS-028-UBR-20A-KF

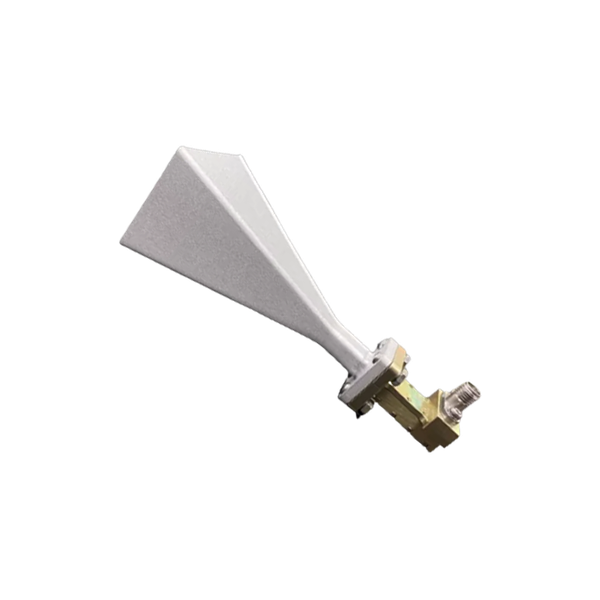

WR-28 Standard Gain Waveguide Horn Antenna 26.5GHz to 40GHz, 20dbi gain, UBR Flange K-Female
View Details
- Waveguide Type: WR-28
- Frequency: 26.5GHz to 40GHz
- Waveguide Coaxial Adapter Model: WC-28-UBR-A1-KF
- Waveguide input Model: WI-28-UBR-20
- Connector:N-Female
- V.S.W.R: 1.25
- Gain: 10 dBi
- Wieght(g):30
- Size(mm): 20.5x42.1x104
HS-028-UBR-25A-KF
WR28 Standard Gain Waveguide Horn Antenna Flange: UBR, 26.5 GHz to 40 GHz, 25dbi
View Details
- Original Model: HS-2825A-KF
- Frequency: 26.5GHz to 40GHz
- Waveguide Coaxial Adapter Model: WC-28-UBR-A1-KF
- Waveguide input Model: WI-28-UBR-25
- Waveguide Type: WR28
- Connector: Stainless steel 2.92mm-Female
