WR28 Standard Gain Waveguide Horn Antenna Flange: UBR, 26.5 GHz to 40 GHz, 25dbi

WR28 Standard Gain Waveguide Horn Antenna Flange: UBR, 26.5 GHz to 40 GHz, 25dbi

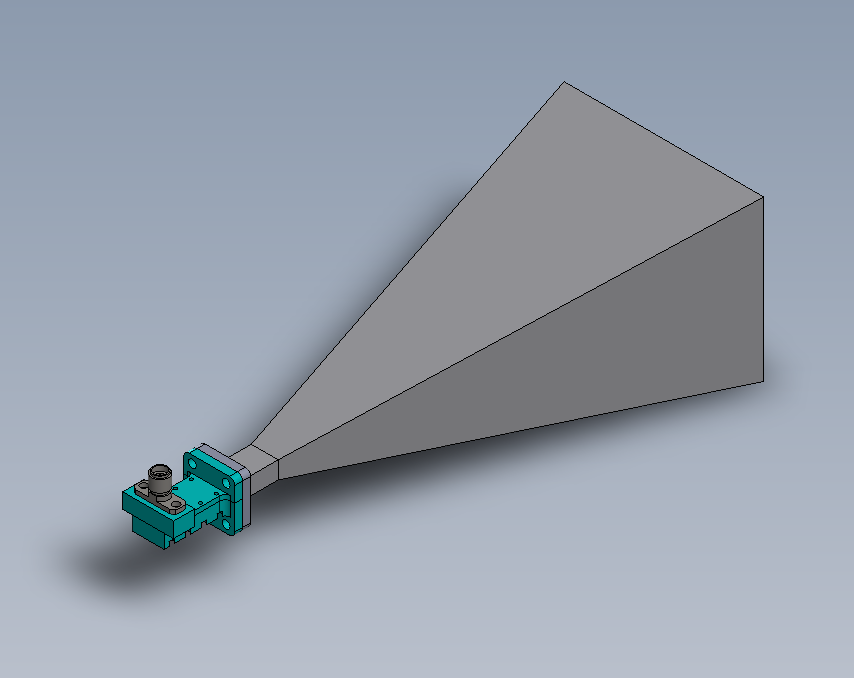

Model No: HS-028-UBR-25A-KF

MECHANICAL DRAWING DATASHEET
Model: HS-028-UBR-25A-KF
Frequency Range: 26.5 to 40 GHz
Gain: 25 dBi
Waveguide / Flange: WR-28 / UBR
Connector: 2.92mm-Female (K)
Stock: 10+  in stock  | Delivery:  5-7 working days
Quantity:
INQUIRY

  • Description & Specification

Applications:

  • WR28 Standard Gain Waveguide Horn Antenna Flange: UBR, 26.5 GHz to 40 GHz, 25dbi
  • EMI/EMC testing, direction finding, surveillance, and antenna gain measurements.
  • Calibration devices that measure the gain of other antennas

Features:

  • Uniform Gain
  • Aluminum metal alloy
  • Consolidated performance database
  • Stainless steel 2.92mm-Female

Mechanical Specifications

  • Model:HS-028-UBR-25A-KF
  • Waveguide: WR-28
  • Frequency: 26.5 to 40GHz
  • Gain: 25 dbi
  • Max Power: 250W
  • H-plane (-3db): 10
  • E-plane (-3db): 9

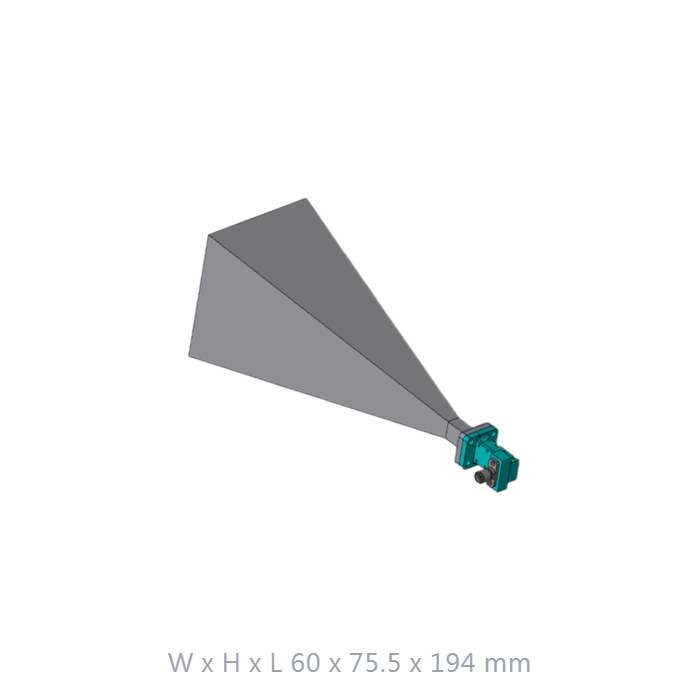

  • Size(mm): 60x75.5x194
  • Weight (g): 105
  • Waveguide Flange: UG/599U
  • Connector: K-Female
  • V.S.W.R: 1.25:0
