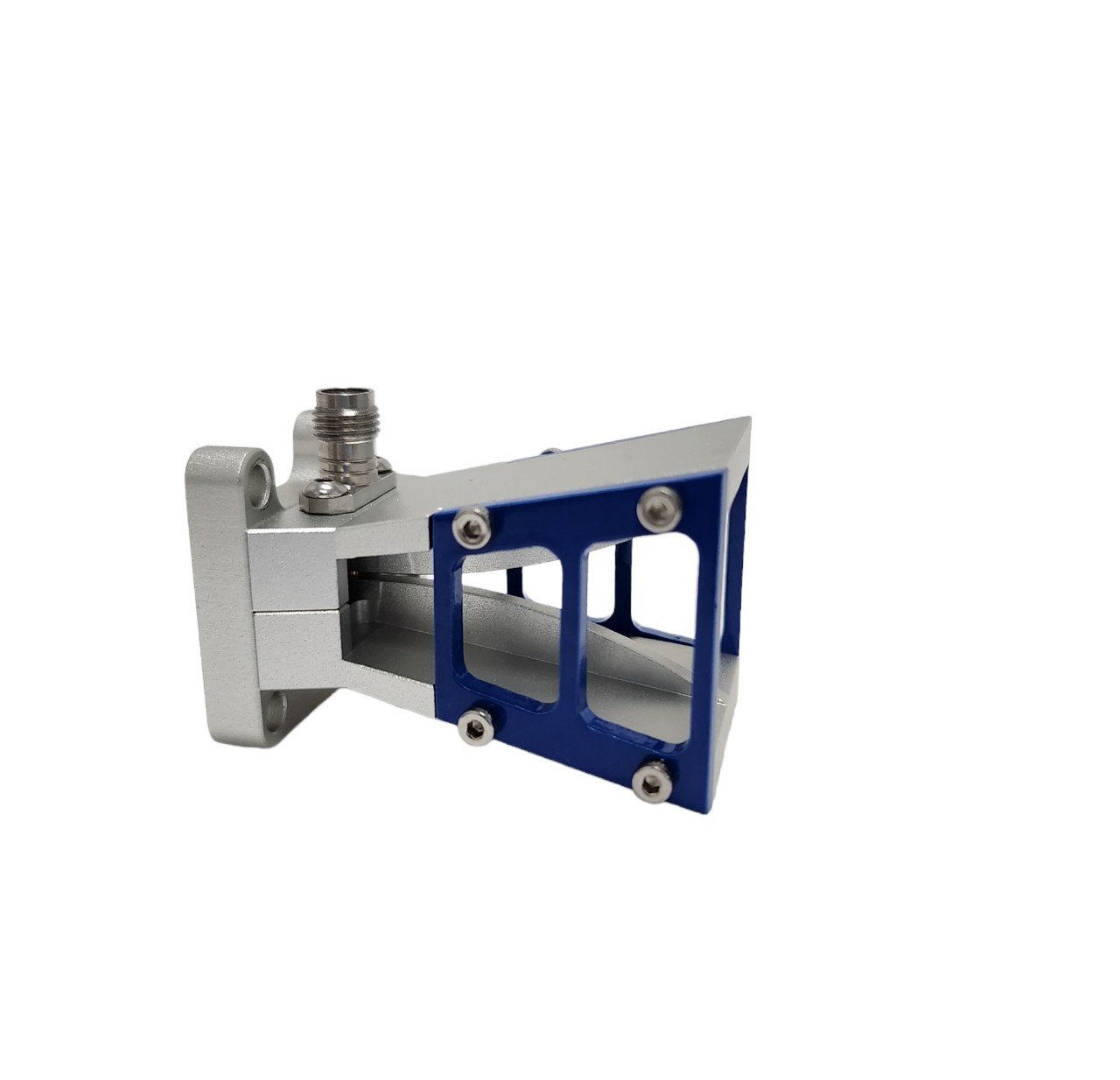

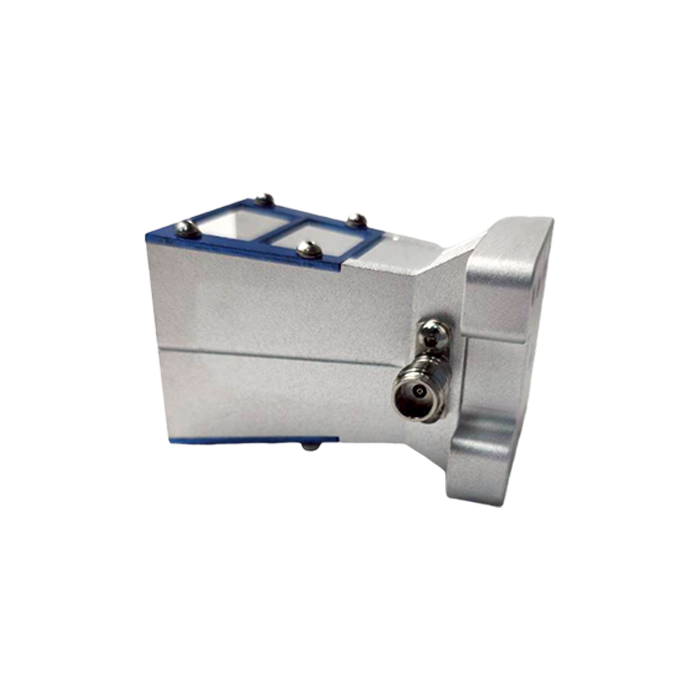

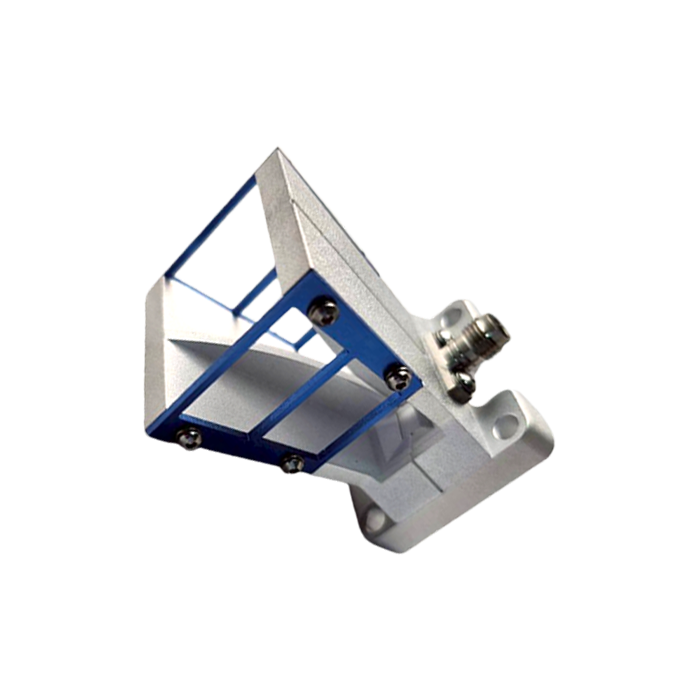

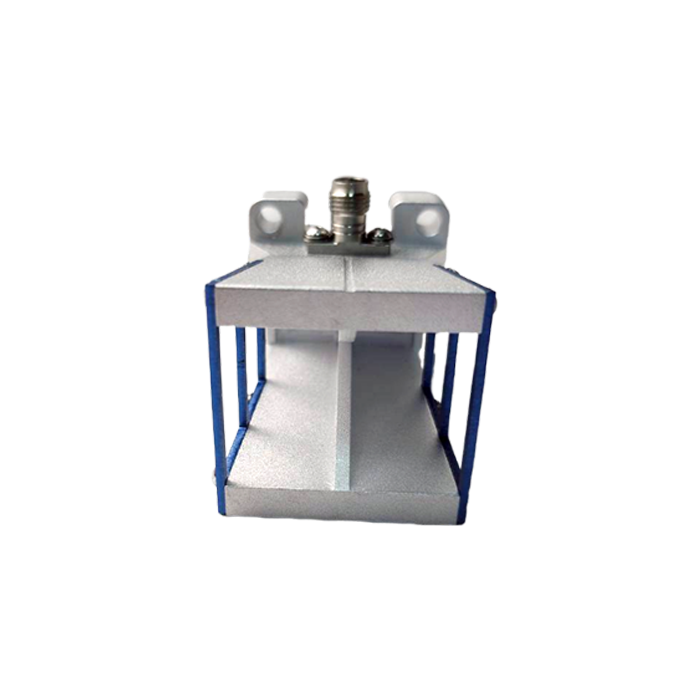

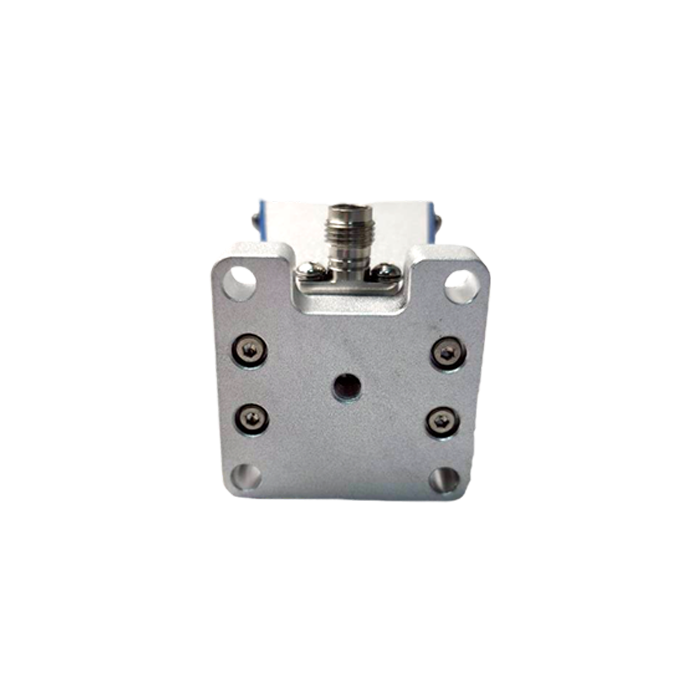

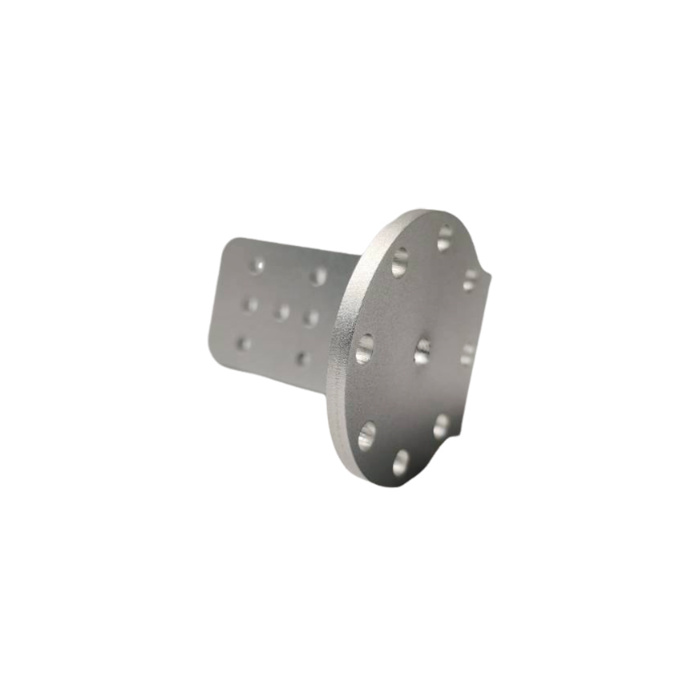

The HA-0570G-VF is a broadband Double Ridged Waveguide Horn Antenna operating from 5 GHz to 70 GHz. It features a precision 1.85mm (V-Female) connector and is designed for high-frequency measurements.
(Note: This model is the upgraded version of HA-0550G-VF)
- EMC / EMI Testing & Measurement
- 5G / 6G Wireless Communication Research
- Antenna Pattern Measurement
- Radar System Analysis
- Spectrum Monitoring
- Broadband Frequency: 5 GHz to 70 GHz
- Compact Design: Lightweight (70g) and small form factor
- High Power Handling: 500W (Peak) / 50W (CW)
- Protection: DC Short lightning protection
- Performance: Low VSWR, Uniform Gain
- Material: Durable 6061 Aluminum metal alloy
| Model No. | HA-0570G-VF (Prev. HA-0550G-VF) |
| Frequency Range | 5 GHz to 70 GHz |
| Connector | Stainless Steel V-Female (1.85mm) |
| Antenna Type | Double Ridged Broadband Waveguide Horn |
| V.S.W.R (Avg) | 2.5 : 1 |
| Gain (dBi) | 6 to 25 (Typical) |
| Antenna Factor | 35 to 50 |
| Polarization | Linear (Horizontal or Vertical) |
| Maximum Power | 50W (CW) / 500W (Peak) |
| Beamwidth (Avg) | 28° (Vertical & Horizontal) |
| Impedance | 50 Ohms |

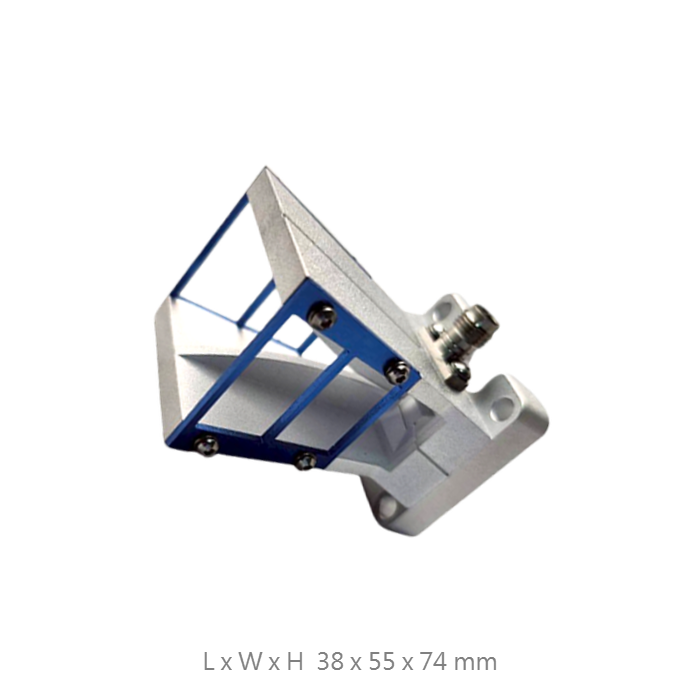

| Dimensions (L x W x H) | 38 x 55 x 74 mm |
| Weight (Net) | 70 g |
