800MHz to 18GHz Double Ridged Broadband Waveguide Horn Antenna N-Female (HA-08M18G-NF)
Fei Teng Wireless - Horn Antenna Specialist
10 out of
10
-
Description & Specification
800MHz to 18GHz Double Ridged Broadband Waveguide Horn Antenna
Broadband Precision | 3 - 18 dBi Gain | Model: HA-08M18G-NF
The HA-08M18G-NF is a high-performance Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan[cite: 12]. Operating across the continuous 800 MHz to 18 GHz frequency spectrum, it delivers directional gain profiling from 3 to 18 dBi and typical average VSWR of 2.0:1[cite: 12]. Built with durable 6061 aluminum alloy and fitted with a high-precision N-Female connector, this antenna supports high power handling up to 250W (CW) / 500W (Peak) and features integrated DC Short lightning protection[cite: 12]. It serves as an essential measurement standard for EMC/EMI laboratory compliance, microwave surveillance, and precision RF testing[cite: 12].
Technical Specifications
| Frequency Range | 800 MHz - 18 GHz |
| Antenna Type | Double Ridged Horn |
| Nominal Gain | 3 - 18 dBi |
| VSWR | 2.0:1 avg |
| Power Handling | 250W CW / 500W Peak |
| Impedance | 50 Ω |
Mechanical & Physical Data

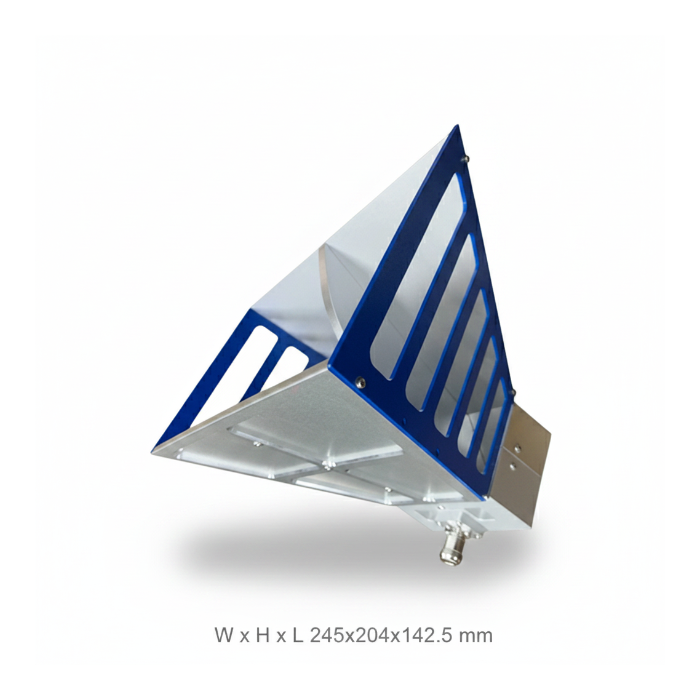

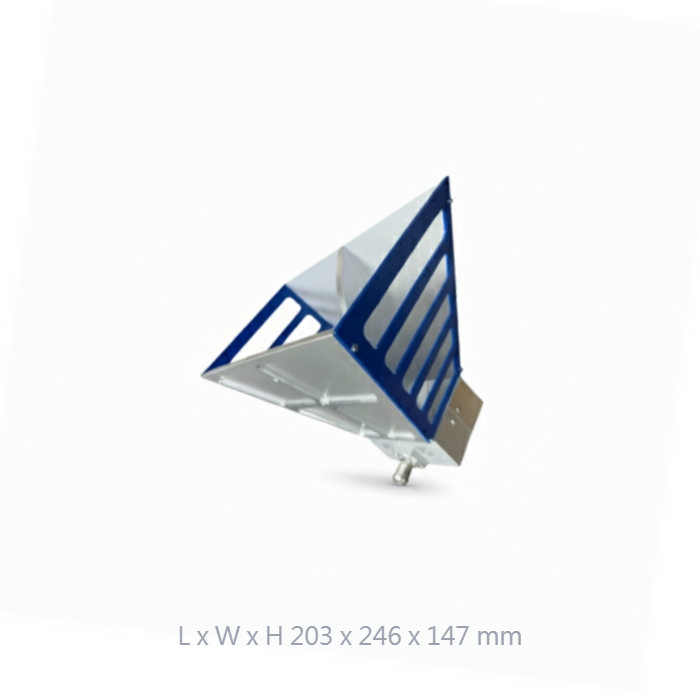

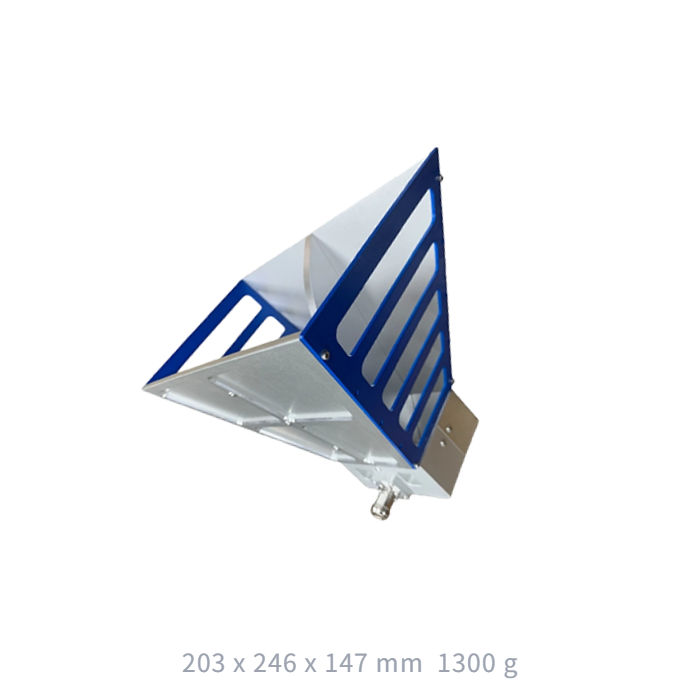

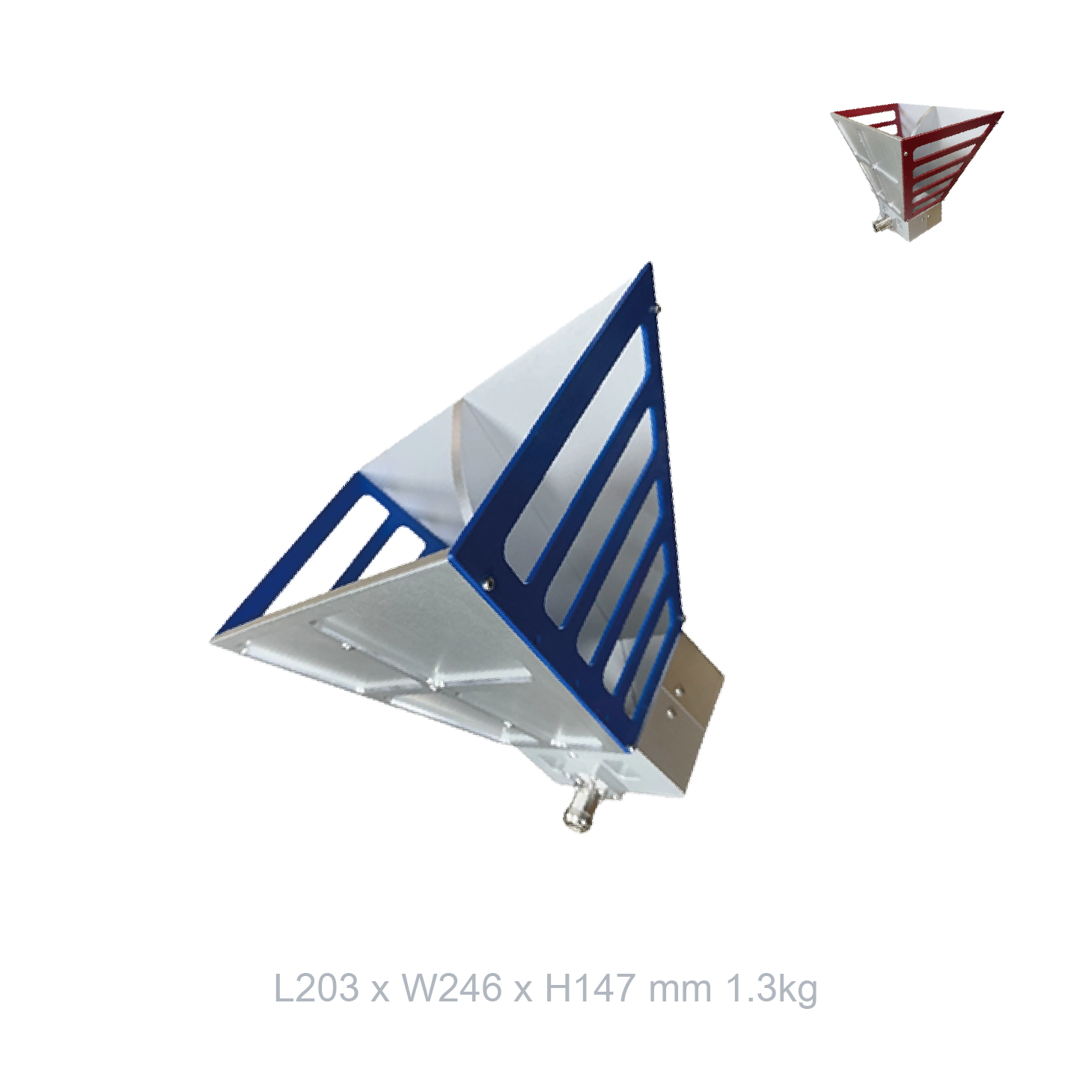

| Dimensions (L x W x H) | 203 x 246 x 147 mm |
| Weight | 1.3 kg |
| Connector | N-Female (Stainless Steel) |
| Mounting Interface | M8 / M5 Thread / L Type Aluminum Bracket |
| Country of Origin | Taiwan |
Gain Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
Ultra-Broadband Coverage
Seamless coverage from 800 MHz to 18 GHz for multi-octave signal detection and analysis[cite: 12].
High Power Rating
Supports 250W CW and 500W peak power handling with built-in DC Short lightning protection[cite: 12].
Stainless Steel Connector
Fitted with a durable Stainless Steel N-Female interface ensuring low insertion loss and high reliability[cite: 12].
Taiwanese Precision
Precision CNC machined from 6061 aluminum alloy, compliant with RoHS, WEEE, CE, and FCC standards[cite: 12].
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
