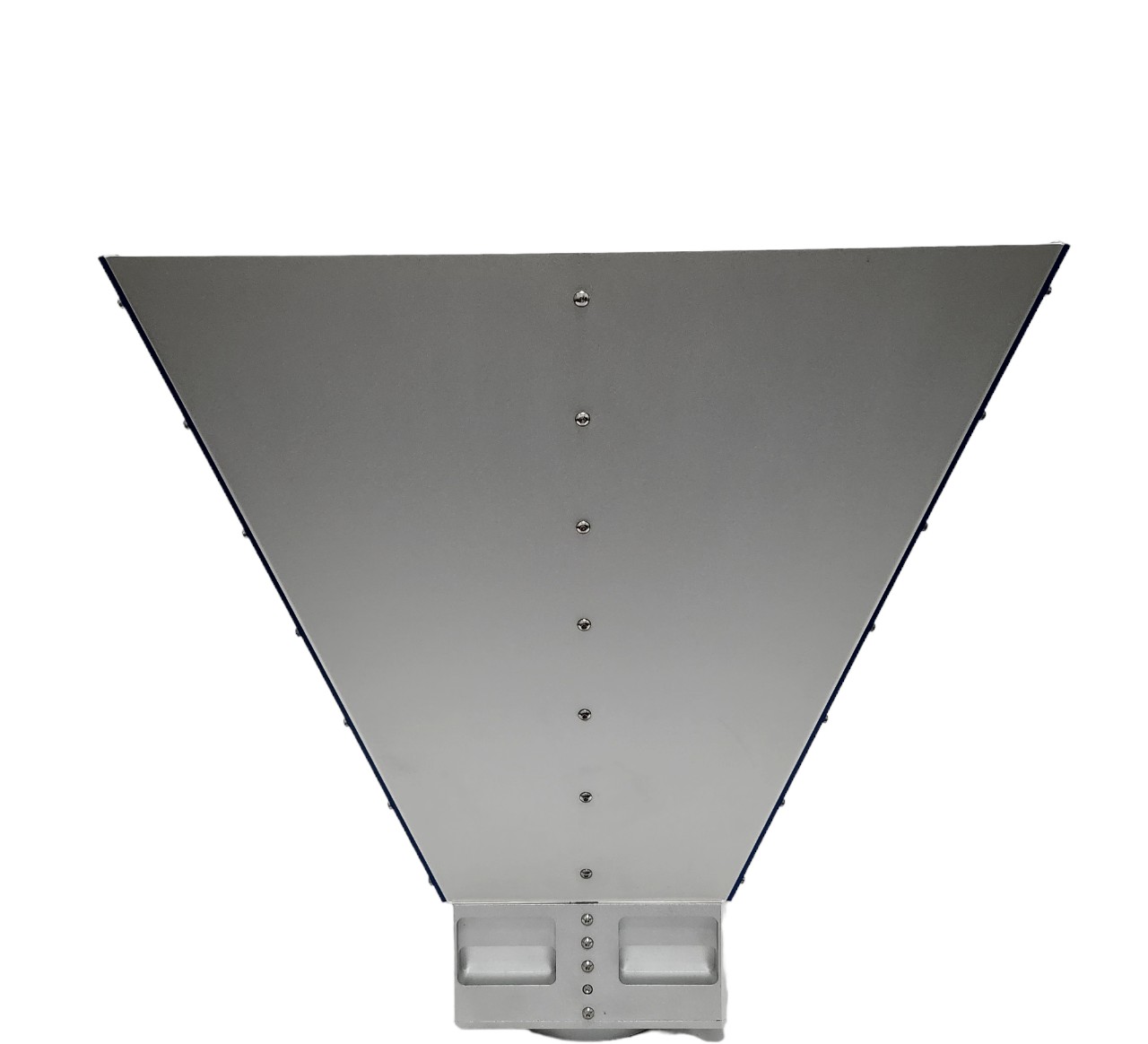

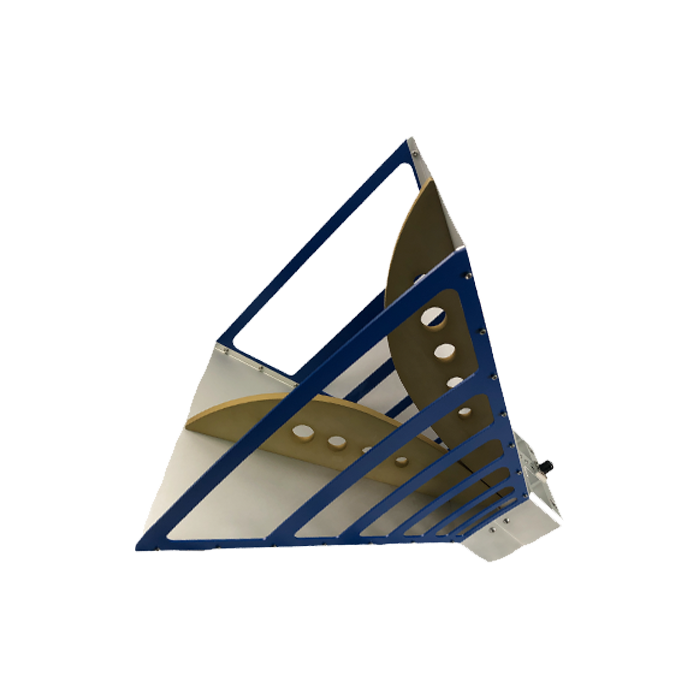

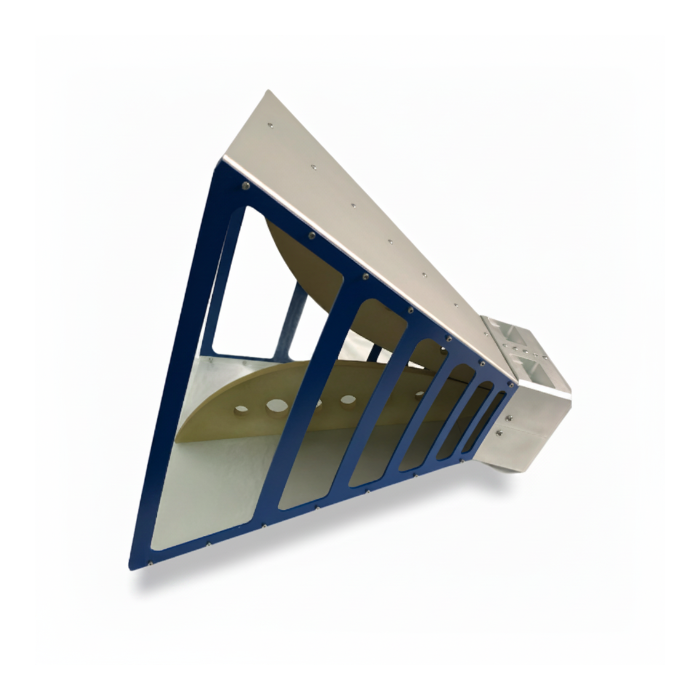

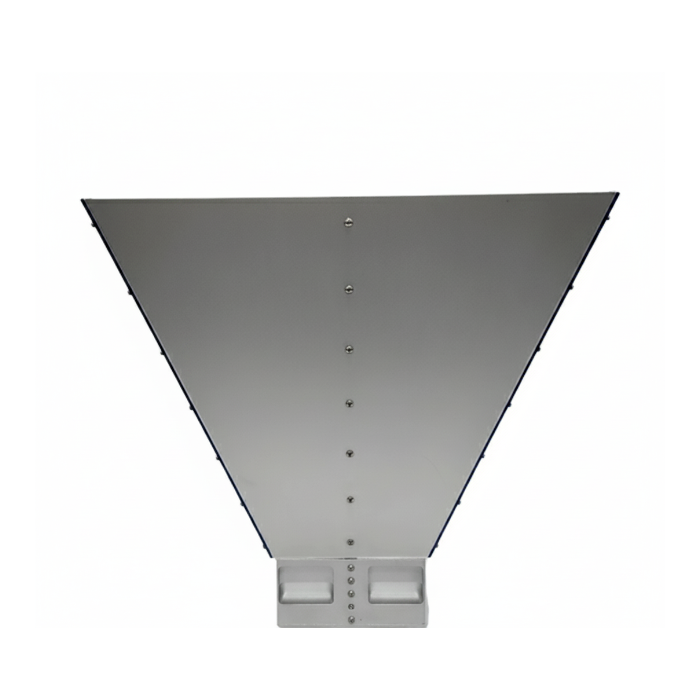

300MHz to 8GHz Double Ridged Broadband Horn Antenna
Ultra-Wideband Powerhouse | 1000W Peak Power Handling
The 300MHz to 8GHz Double Ridged Broadband Horn Antenna is a heavyweight precision instrument designed for wide-spectrum RF dominance. Boasting an incredible frequency response starting from 300MHz, it is constructed from high-grade 6061 Aluminum alloy with a stainless steel N-female connector. This model is engineered to handle a massive 1000W peak power, making it the premier choice for complex EMI/EMC environments, broadband surveillance, and high-intensity signal monitoring where lower frequency coverage is critical.
Technical Specifications
Electrical Specifications
| Frequency Range | 300 MHz - 8 GHz |
| V.S.W.R | 300MHz-1GHz: 3.0:1 (avg) | 1GHz-8GHz: 2.5:1 (avg) |
| Antenna Type | Double Ridged Horn |
| Radiation | Directional |
| Gain | -10 dBi to 16 dBi |
| Antenna Factor | 15 - 36 dB/m |
| Polarization | Vertical or Horizontal |
| Maximum Power Handling | 1000W (Peak) / 600W (Continuous) |
| Vertical Beam-width | 53° |
| Horizontal Beam-width | 51° |
| Impedance | 50 Ohm |
| Connector | N-Female (Stainless Steel) |
Mechanical & Environmental Specifications

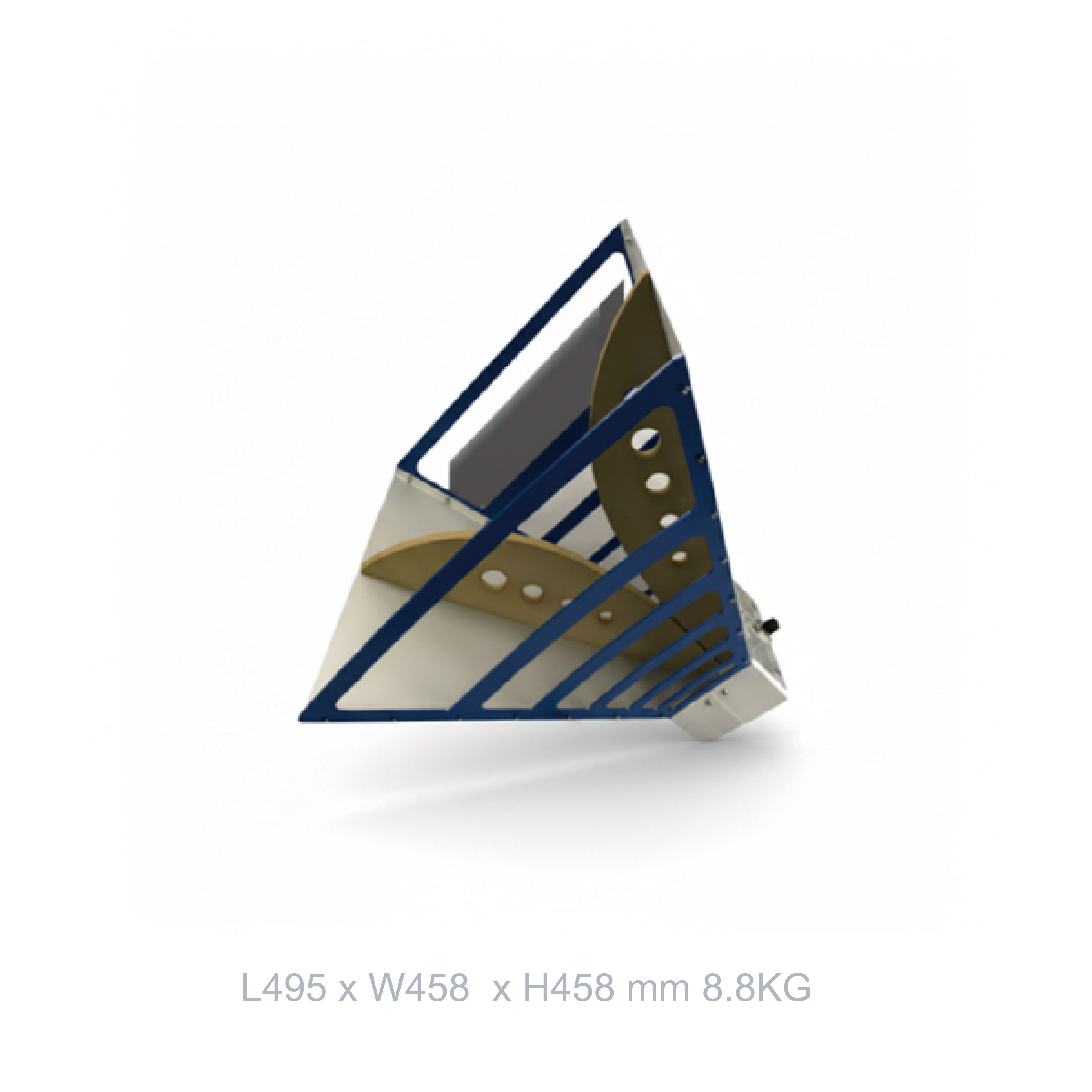

| Dimensions (WxH) | 458 x 458 mm |
| Length | 495 mm |
| Antenna Weight (N.W) | 8.8 kg (8800 g) |
| Material | 6061 Aluminum Alloy |
| Mounting Options | L-Type Aluminum Bracket (M8, M6, or 1/4 inch) |
| Mounting Style | 22mm Tube / Long 300mm Indexing Ring |
| Application | Indoor |
| Compliance | RoHS, WEEE, CE, FCC |
Key Features
Extreme Power Performance
Delivers unmatched 1000W peak power handling, ensuring stability in high-field RF testing.
Delivers unmatched 1000W peak power handling, ensuring stability in high-field RF testing.
Extended Lower Spectrum
Broadband capability starting from 300MHz, capturing critical UHF signals and early microwave transitions.
Broadband capability starting from 300MHz, capturing critical UHF signals and early microwave transitions.
DC Short Lightning Protection
Built-in design safeguards high-value connected instrumentation from electrical surges.
Built-in design safeguards high-value connected instrumentation from electrical surges.
Large Aperture Stability
Massive 458mm diameter aperture provides superior directional control and uniform gain across the band.
Massive 458mm diameter aperture provides superior directional control and uniform gain across the band.
Premium Taiwan Quality
Made in Taiwan using 6061 Aluminum for maximum structural integrity and RF accuracy.
Made in Taiwan using 6061 Aluminum for maximum structural integrity and RF accuracy.
Consolidated Database
Supported by a consolidated performance database for accurate calibration and reliable test results.
Supported by a consolidated performance database for accurate calibration and reliable test results.
Contact Us
For pricing, custom integration, or technical data regarding this High-Power 300MHz-8GHz Horn, please contact us:
