900MHz to 3GHz High Gain Double Ridged Horn Antenna
Broadband Directional Antenna | 500W High Power Capacity
The 900MHz to 3GHz Double Ridged Horn Antenna is a precision-engineered broadband solution designed for high-power applications. Featuring a high gain range of 8 dBi to 12 dBi and constructed from high-grade 6061 Aluminum alloy, it is ideal for telecommunications testing, EMI/EMC measurements, and directional signal monitoring. Designed and manufactured in Taiwan, it includes DC short lightning protection and a stainless steel N-female connector for maximum RF stability.
Technical Specifications
Electrical Specifications
| Frequency Range | 900 MHz - 3 GHz |
| Gain | 8 dBi - 12 dBi (Nominal 10 dBi) |
| V.S.W.R | Low VSWR (Optimized) |
| -3dB Beam-width | 42° - 62° |
| Maximum Power Handling | 500W (Peak) / 300W (Continuous) |
| Polarization | Vertical or Horizontal |
| Impedance | 50 Ohm |
| Connector | N-Female (Stainless Steel) |
Mechanical & Environmental Specifications

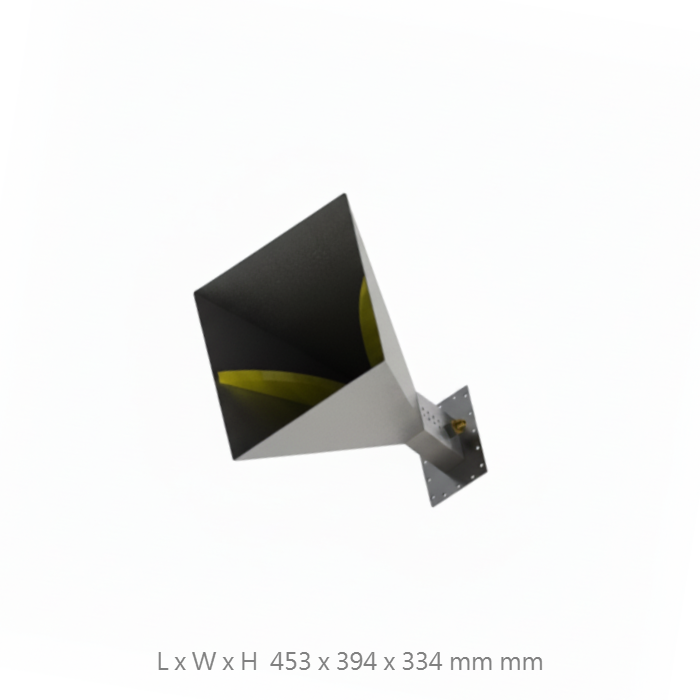

| Dimensions (L x W x H) | 453 x 394 x 334 mm |
| Net Weight (N.W) | 3.9 kg |
| Material | 6061 Aluminum Alloy |
| Manufacturing | Made in Taiwan |
Key Features
High Power Reliability
Up to 500W peak and 300W continuous power for intensive RF environments.
Up to 500W peak and 300W continuous power for intensive RF environments.
Integrated Lightning Protection
Built-in DC short design safeguards connected instrumentation.
Built-in DC short design safeguards connected instrumentation.
Superior Low Frequency Gain
Optimized 8-12 dBi gain for consistent directional performance.
Optimized 8-12 dBi gain for consistent directional performance.
Premium Build Quality
Crafted from durable 6061 Aluminum for long-term RF integrity.
Crafted from durable 6061 Aluminum for long-term RF integrity.
Low VSWR Performance
Maintains high efficiency and low reflection for accurate testing.
Maintains high efficiency and low reflection for accurate testing.
Consolidated Database
Supported by a comprehensive performance database for reliability.
Supported by a comprehensive performance database for reliability.
