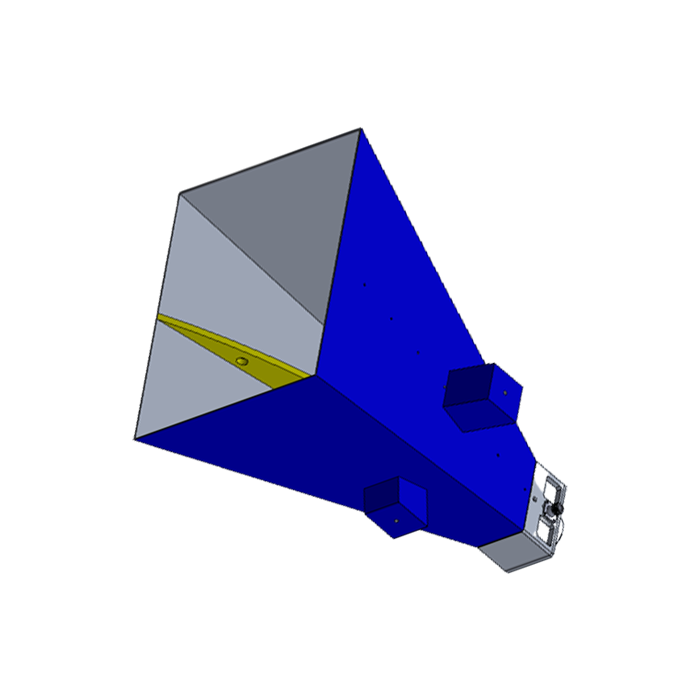

Double Ridged Broadband Horn Antenna
Model: HA-04M07G-NF | 400 MHz to 7 GHz | Broadband Testing
The HA-04M07G-NF is a high-performance Double Ridged Horn Antenna professionally engineered for demanding EMC/EMI testing and Signal Security operations across the 400 MHz to 7 GHz spectrum. Constructed with a high-grade 6061 Aluminum Alloy body and a precision Stainless Steel N-Female connector, this antenna ensures uniform gain and exceptional Signal Integrity for professional laboratory environments and tactical Signal Defense sub-systems.
Technical Specifications
Electrical & RF Performance

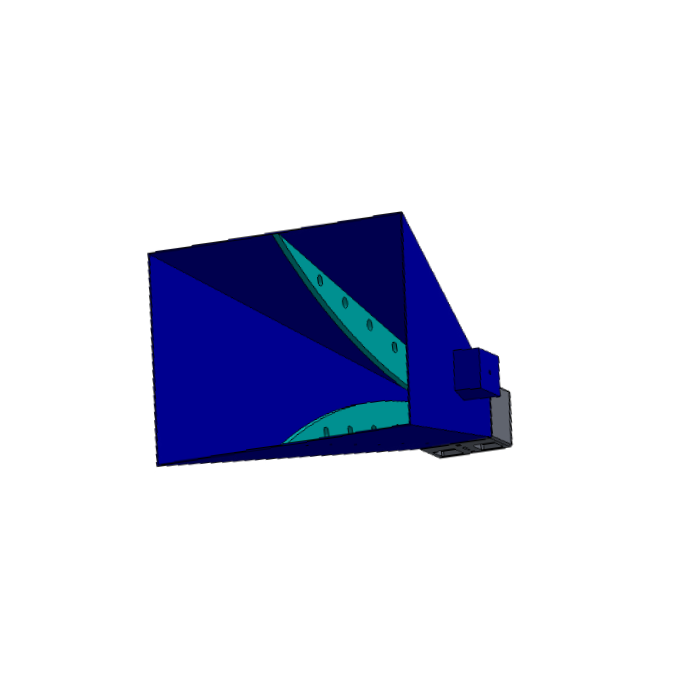

| Frequency Range | 400 MHz - 7 GHz |
| Antenna Type | Double Ridged Broadband Waveguide Horn |
| V.S.W.R | Low VSWR Performance |
| Impedance | 50 Ohms |
| Lightning Protection | DC Short |

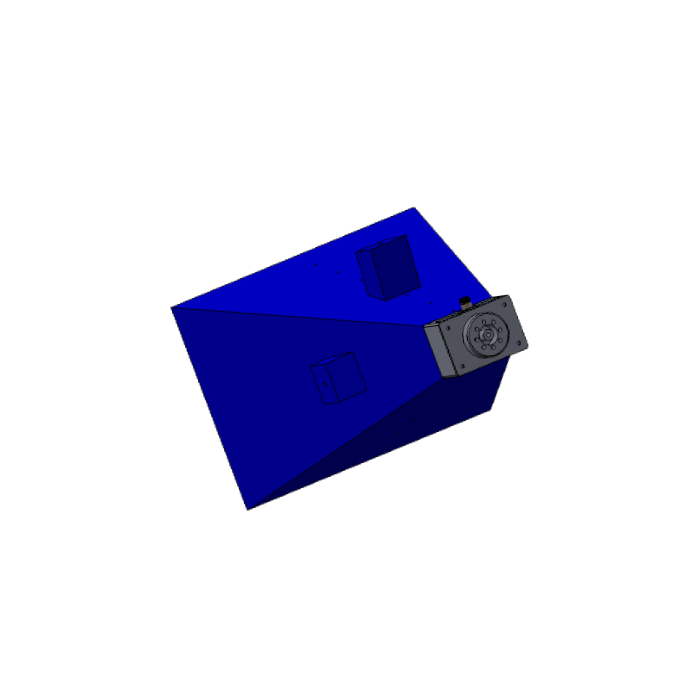

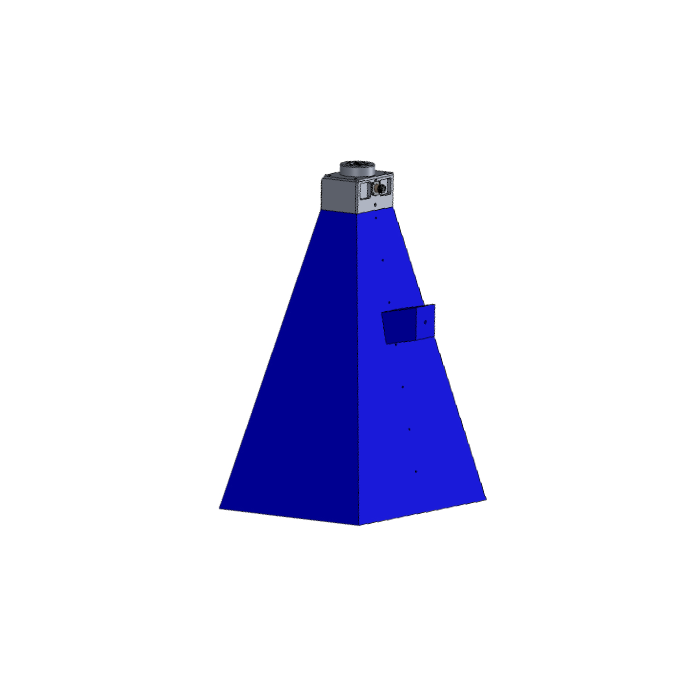

Mechanical & Construction

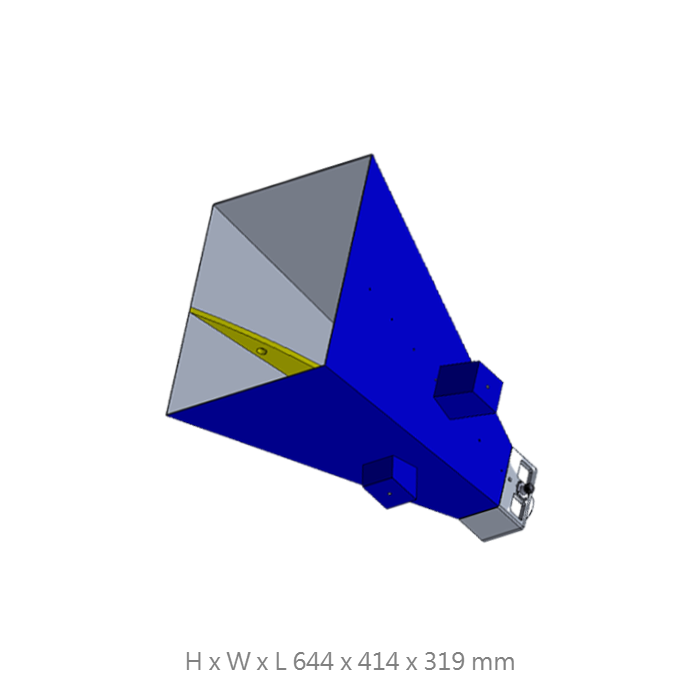

| Dimensions (WxHxL) | 619 x 414 x 644 mm |
| Net Weight | 6390 g |
| Body Material | 6061 Aluminum Alloy |
| Connector Type | N-Female (Stainless Steel) |
| Origin | Made in Taiwan (FT-RF) |
