  • 800MHz to 18GHz Light Double Ridged Broadband Waveguide Horn Antenna N-Female

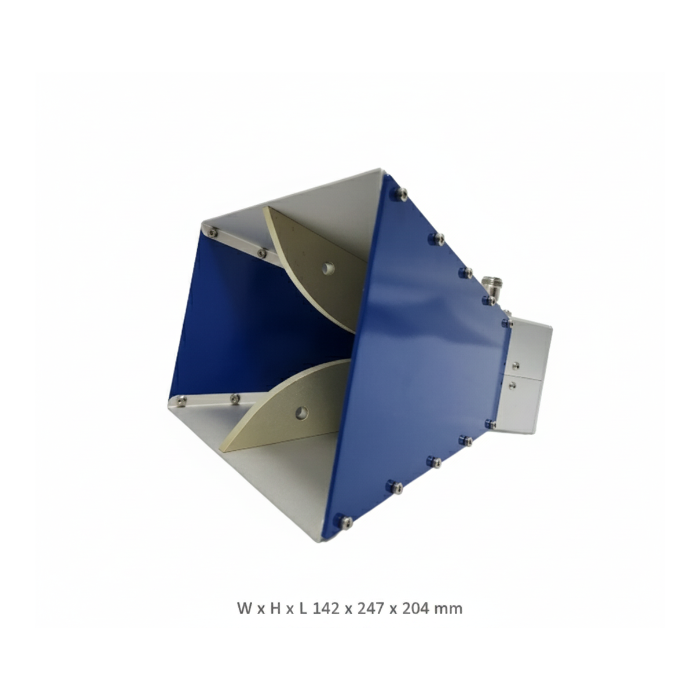

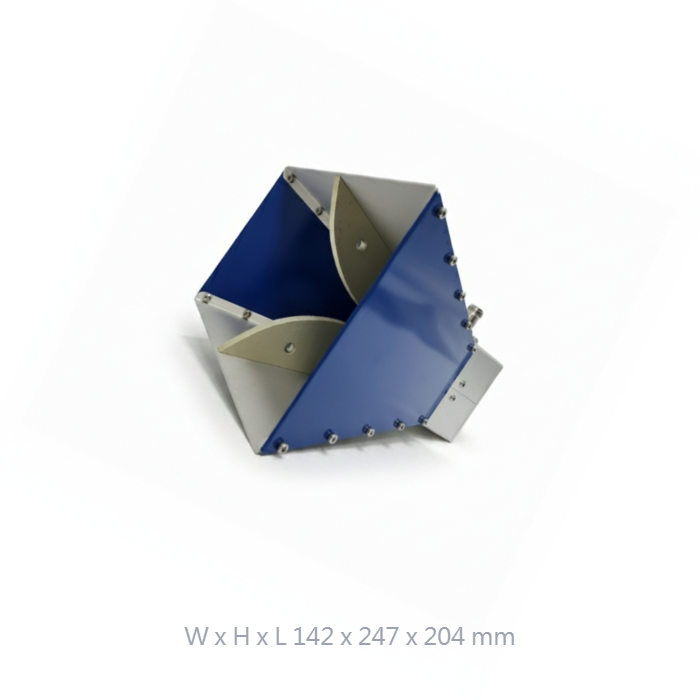

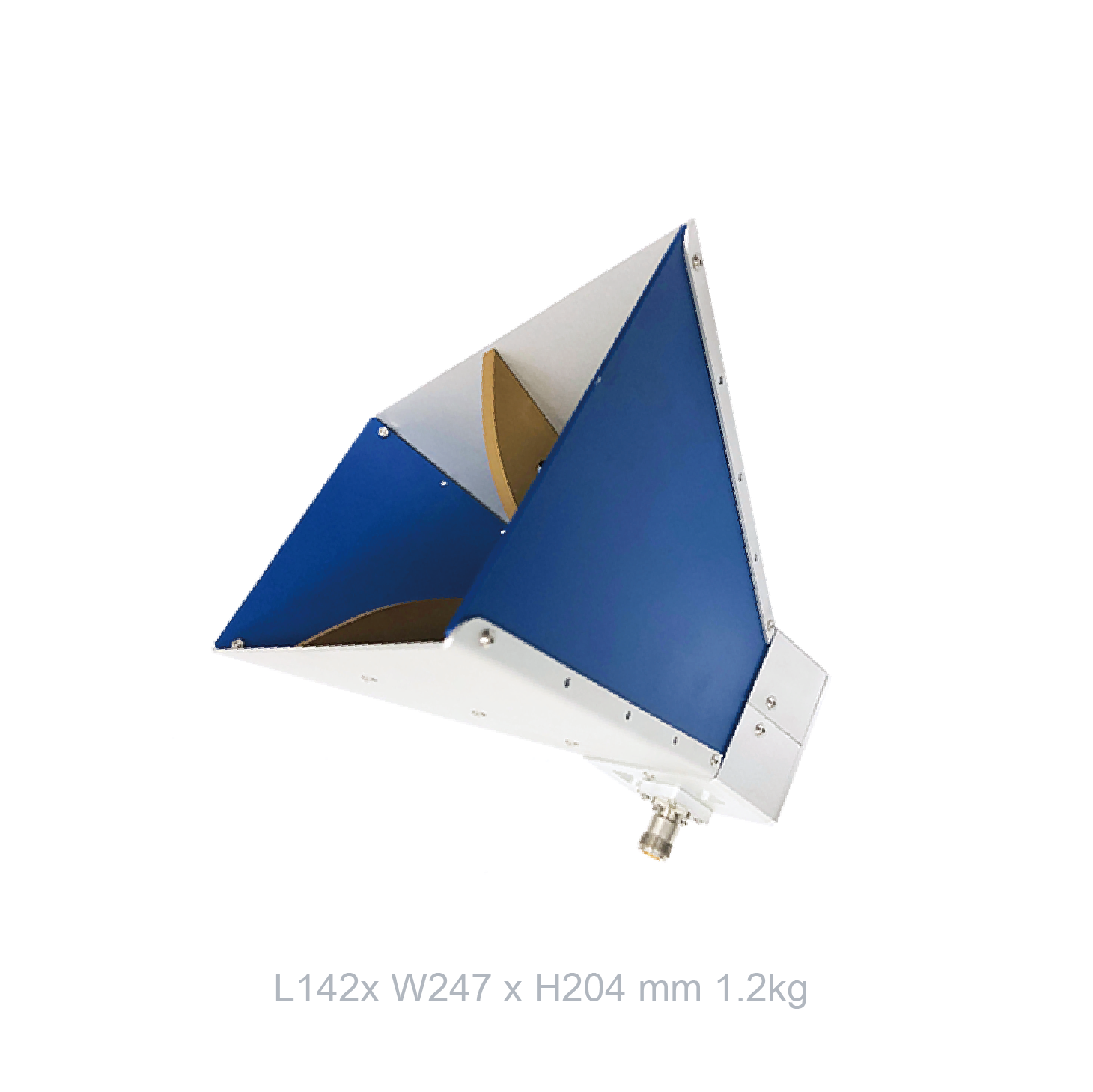

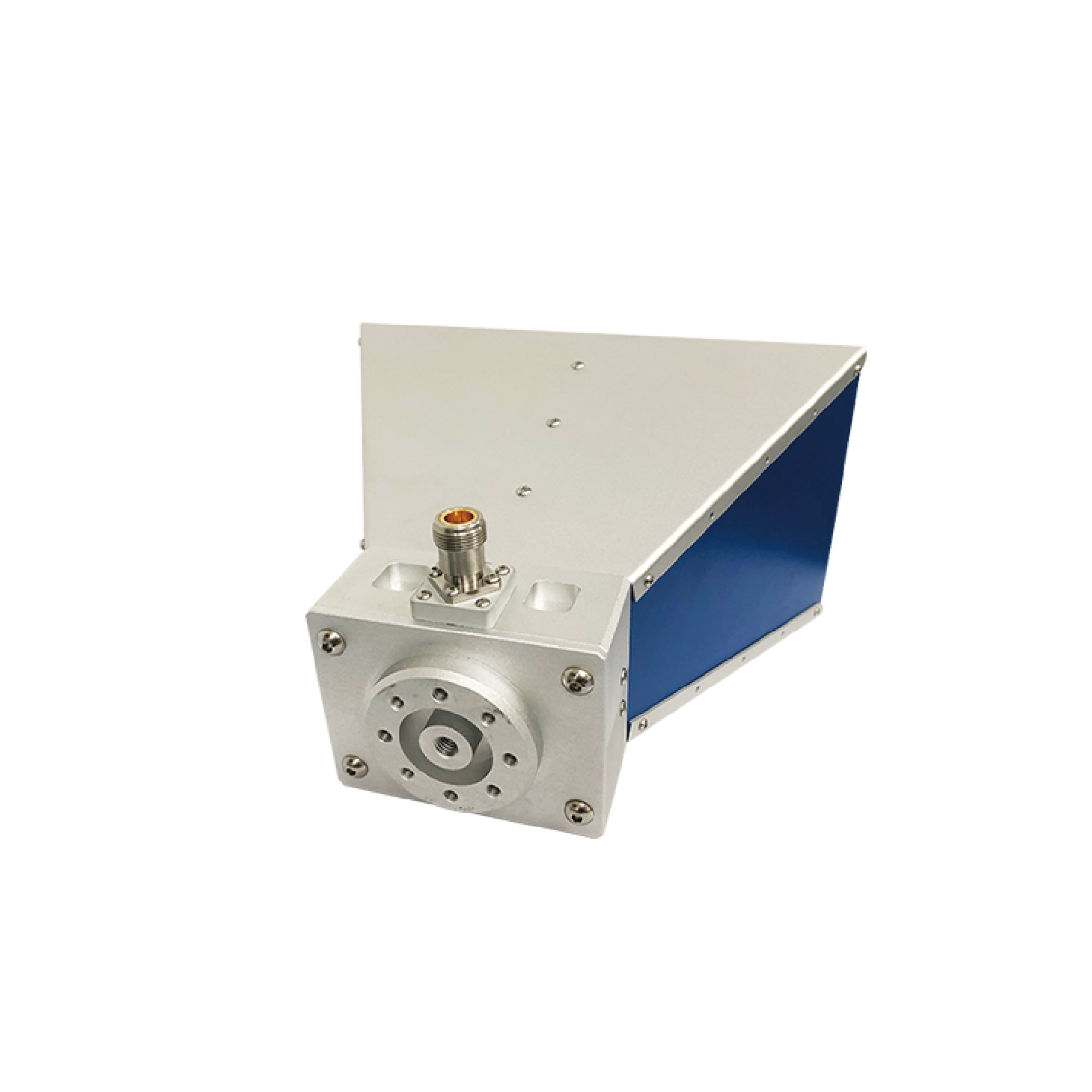

800MHz to 18GHz Light Double Ridged Broadband Waveguide Horn Antenna N-Female

800MHz to 18GHz Light Double Ridged Broadband Waveguide Horn Antenna N-Female

Model No: HA-08M18G-L-NF

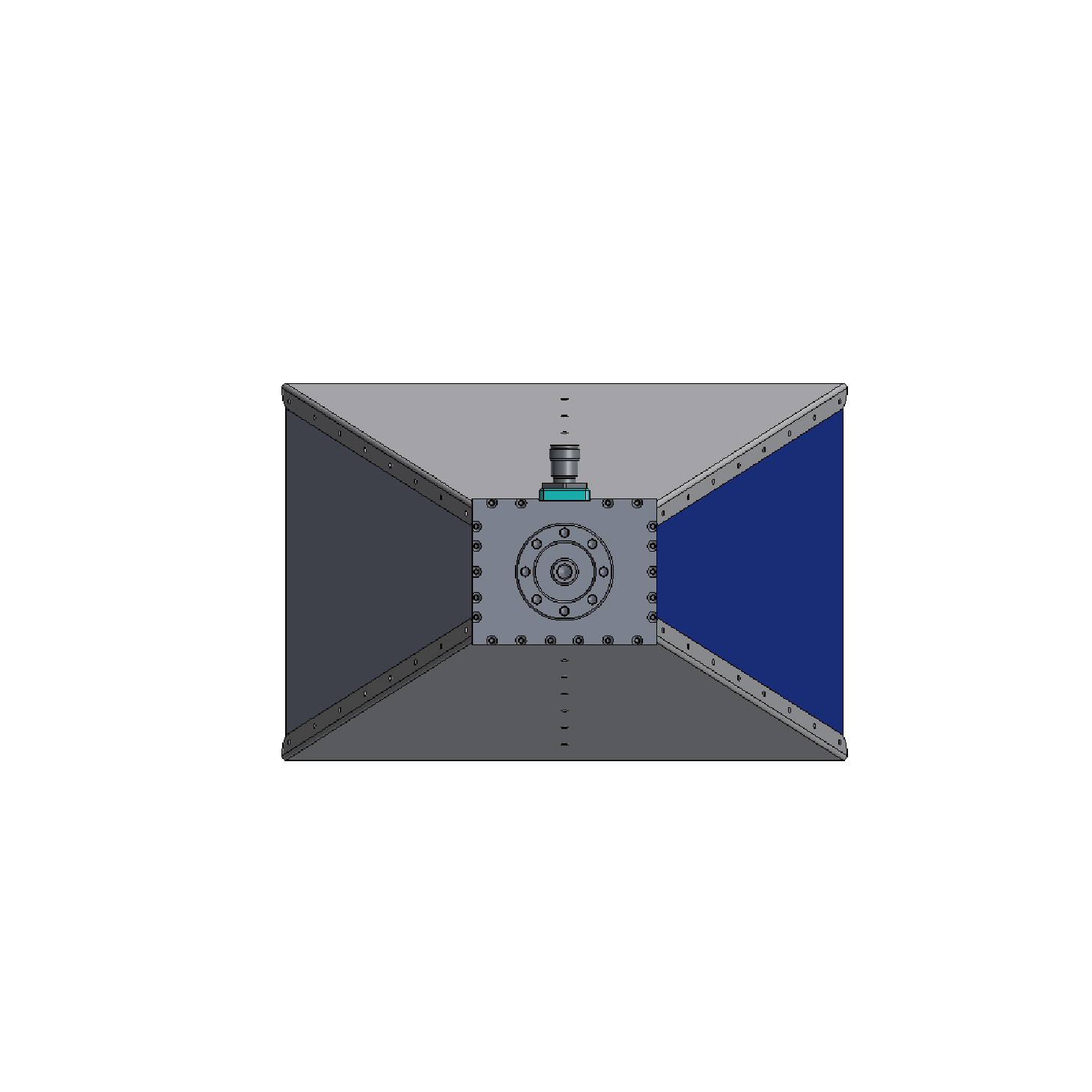

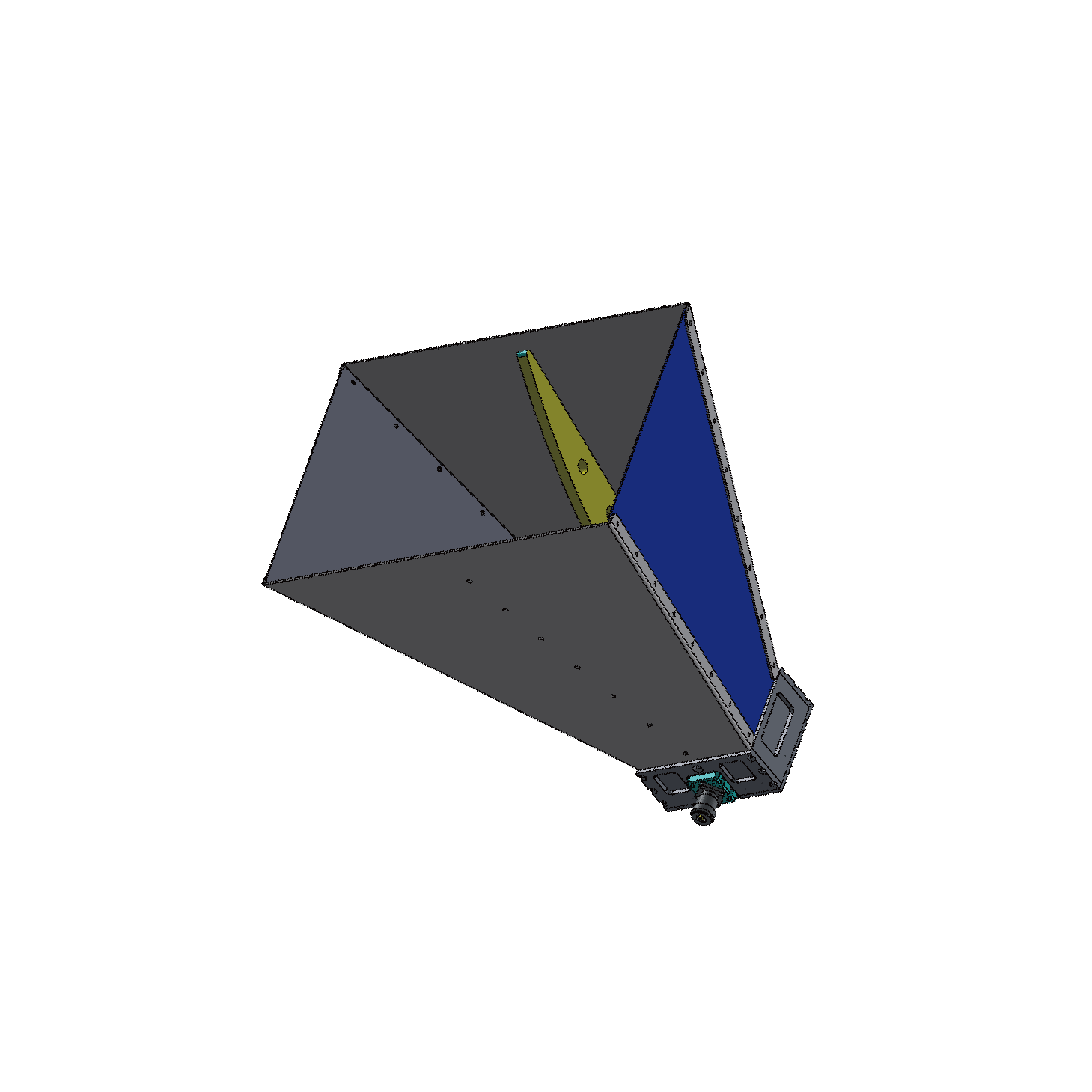

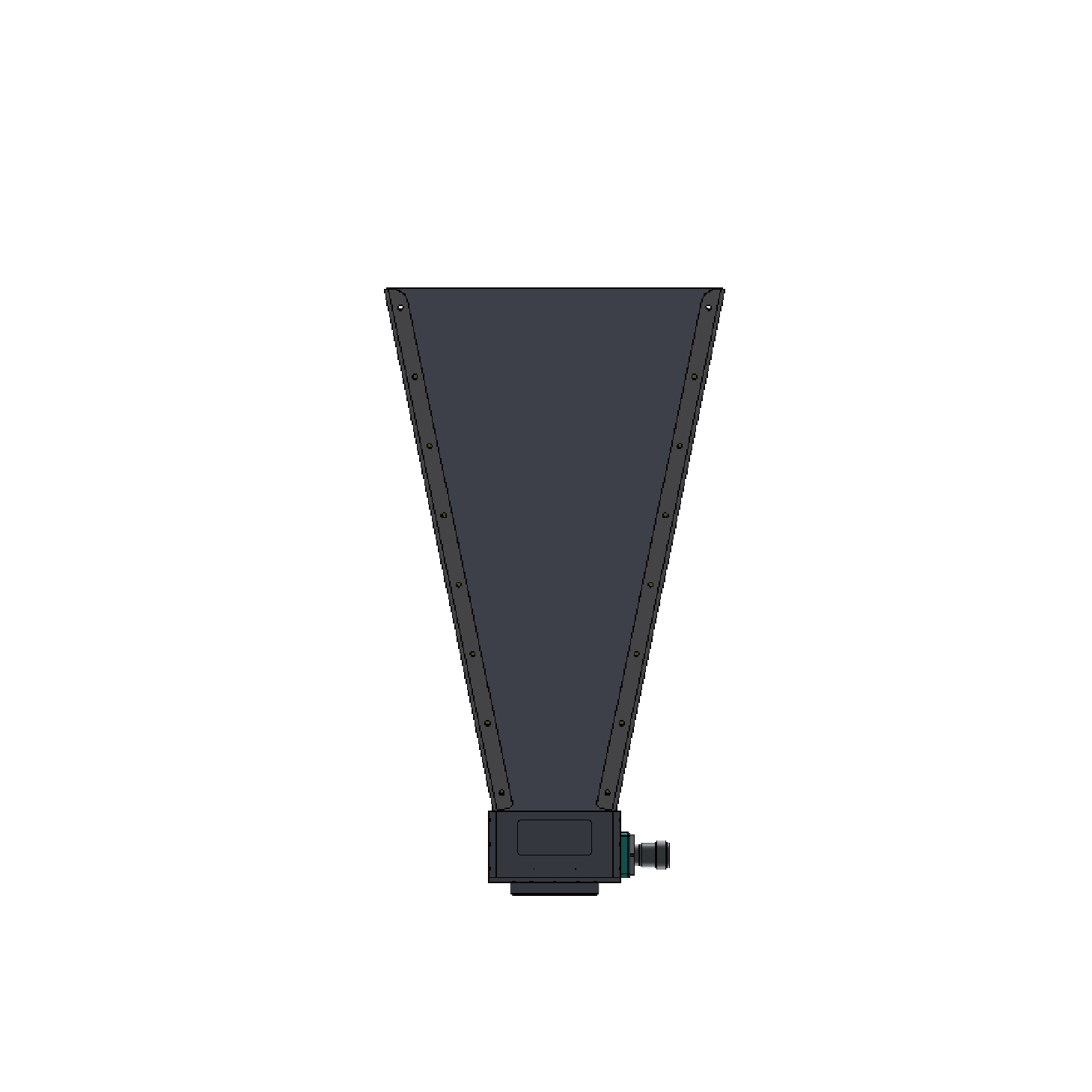

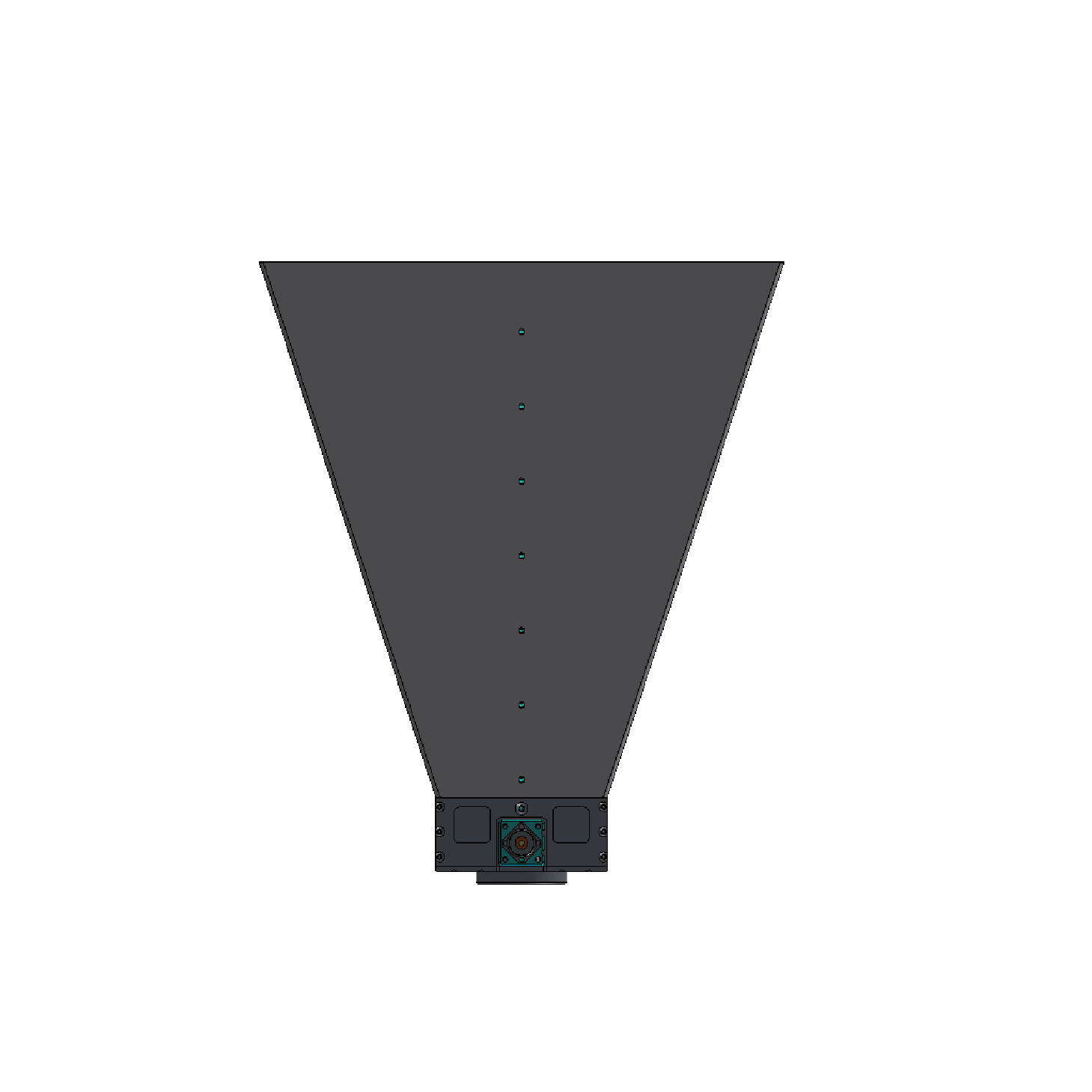

Mechanical Drawing: Download

  • Frequency: 800MHz to 18GHz
  • Gain: 3dbi to 16dBi
  • WxHxL: 142x247x204mm
  • N.W.: 1.2 kg
  • In stock : 1 pcs
Quantity:
INQUIRY

  • Description & Specification

Applications:

  •  800MHz to 18GHz Light Double Ridged Broadband Waveguide Horn Antenna
  •  6061 Aluminum metal alloy
  •  Stainless Steel N-female
  • EMI testing antenna

 Features:

  • High Power 500W (peak) 300W (Cont)
  •  DC Short lightning protection
  •  Low VSWR
  •  Uniform Gain
  •  Consolidated performance database

Electrical Specifications

Frequency Range

800MHz - 18GHz

1GHz - 18GHz V.S.W.R

2.0 :1 (avg)

Antenna Type

Horn

Radiation

Directional

Gain

4-16 dBi

Antenna Factor

24 - 40 dB/m

Polarization

Vertical or Horizontal

Maximum Power

500 Watts

Vertical Beamwidth

 Deg

Horizontal Beamwidth

Deg

Impedance

50 Ohm

FBR

10 - 35 db

Antenna Design

Double-Ridge

Connector

N-Female

Mechanical Specifications

Dimension (WxHxL)

142x247x204mm

Antenna Weight

1.2 kg

Accessories

N//A

Application

Indoor

Parts Material

Aluminum

Storage Temperature

-20 to +80

Operating Temperature

-10 to +60

Operating Humidity

10%~70% non-condensing

Storage Humidity

5%~50% non-condensing

Safety, Emission and other

RoHS
