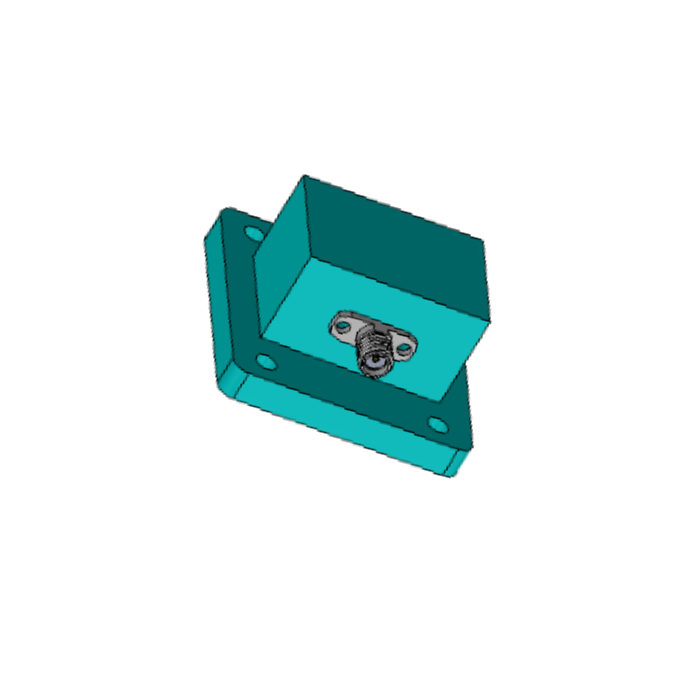

WR-112 Waveguide to Coaxial Adapter
Precision X-Band Transition | Streamlined PBR Flange Layout | 7.05 GHz – 10.0 GHz

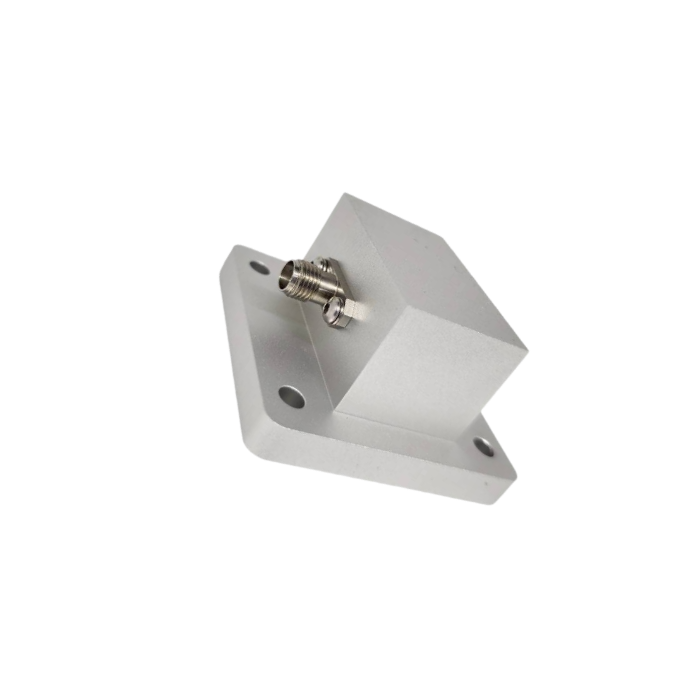

The WC-112-PBR-S1-NF is a high-performance Waveguide to Coaxial Adapter professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for strict compliance with the rectangular WR-112 architectural standard. Operating continuously across the 7.05 GHz to 10.0 GHz frequency spectrum, this premium transition component ensures stable electromechanical coupling and maximum energy transfer with an exceptionally low insertion loss of just 0.15 dB and a maximum V.S.W.R threshold of 1.25 : 1. Manufactured from high-grade aluminum alloy via precision CNC machining in Taiwan, this streamlined 95 g adapter integrates a pressurized PBR Style square flange layout with a built-in gasket groove mated to a high-durability N-Female coaxial interface port. This specialized configuration makes it the definitive choice for satellite communication ground terminals, X-band radar systems, airborne monitoring networks, wireless test chambers, and laboratory-grade calibration setups.
Electrical & RF Performance
| Frequency Range | 7.05 GHz to 10.0 GHz (Continuous X-Band Tuning) |
| Insertion Loss (Max) | 0.15 dB |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Nominal Impedance | 50 Ohms |

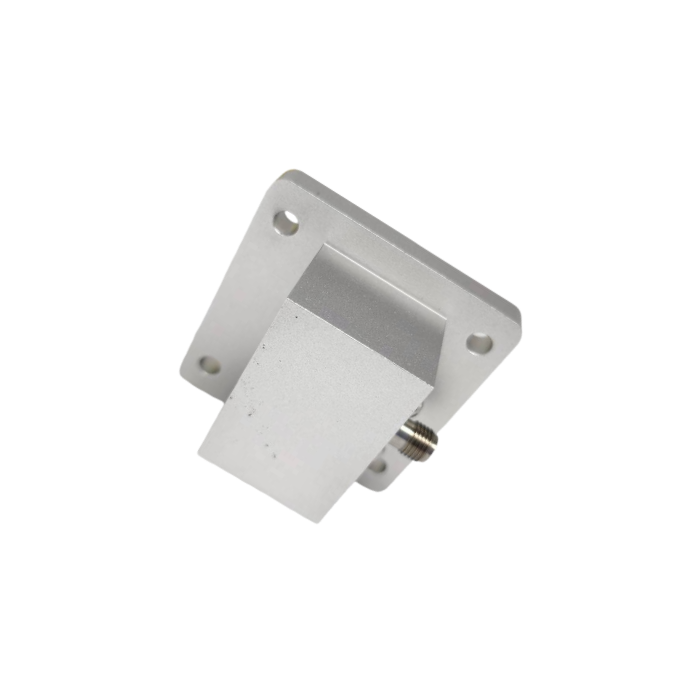

Mechanical & Construction Data
| Waveguide Size Standard | EIA WR-112 (R84 / WG15 Layout) |
| Waveguide Flange Designation | PBR Style Flange Standard Layout (Pressurizable Cover with Gasket Groove) |
| Coaxial Connector Port | N-Female Premium Port Interface Layout |

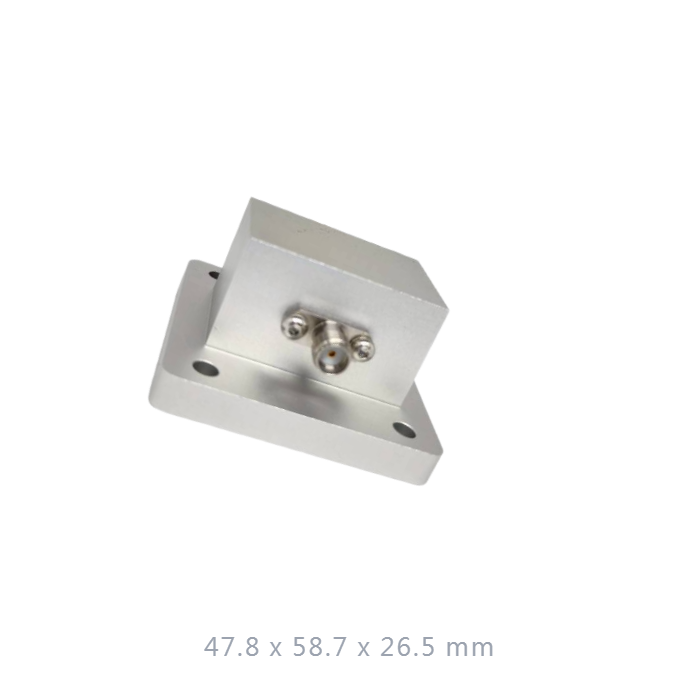

| Physical Dimensions (W x H x L) | 47.8 x 58.7 x 26.5 mm |
| Net Weight | 95 g (Streamlined Lightweight Build) |
| Body Material Profile | High-Grade Structural Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
X-Band Transition Integrity
Precision-optimized internal geometry transitions eliminate mode anomalies throughout the 7.05 to 10.0 GHz spectrum, ensuring minimal path reflections and clean impedance transitions.
Ultra-Low Insertion Loss
Streamlined interior launcher profiles restrict signal insertion attenuation to an outstanding ≤0.15 dB margin, maximizing transmitter efficiency and power transfer capabilities.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control parameters, delivering exceptional dimensional alignment tolerances and traceable calibration metrics.

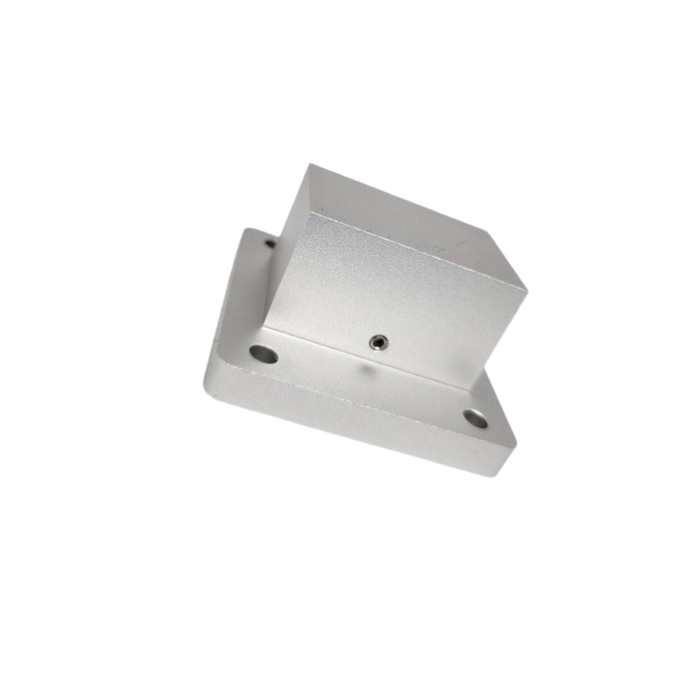

Standardized PBR Flange
Integrates a standard square PBR flange layout equipped with an integrated sealing gasket groove, allowing secure pressurization anchoring into rigid waveguide routing manifolds.
Rugged Lightweight Architecture
Weighing only 95 g, its structural aluminum block body ensures high electromechanical rigidity without burdening multi-axis lab positioning positioners or tactical arrays.
Inquire About Professional RF Solutions
Contact our technical engineering team today to request certified calibration data sheets, specific mechanical layout drawings, custom flange drilling formats, or alternative custom connector ports.
