Description & Specification
5GHz to 63GHz Double Ridged Broadband Waveguide Horn Antenna
Millimeter Wave Precision | 1.85mm (V-Female) | Model: HA-0563GH-VF

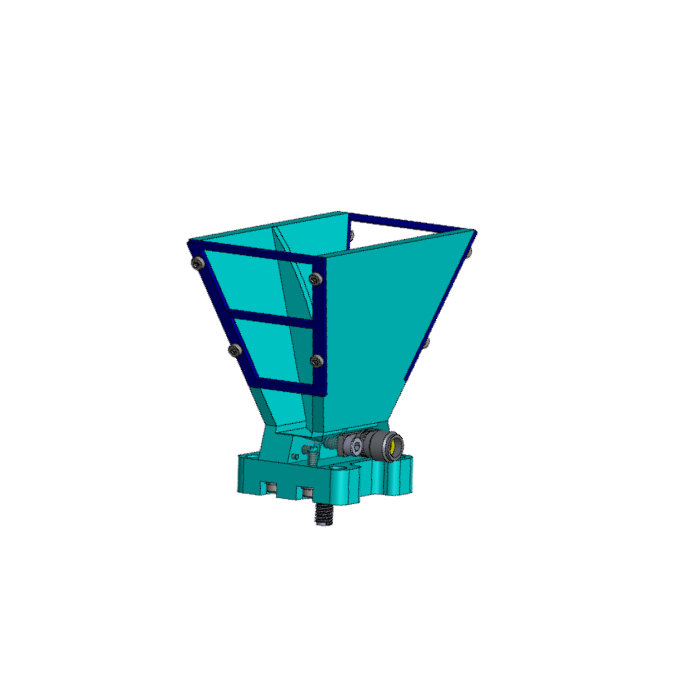

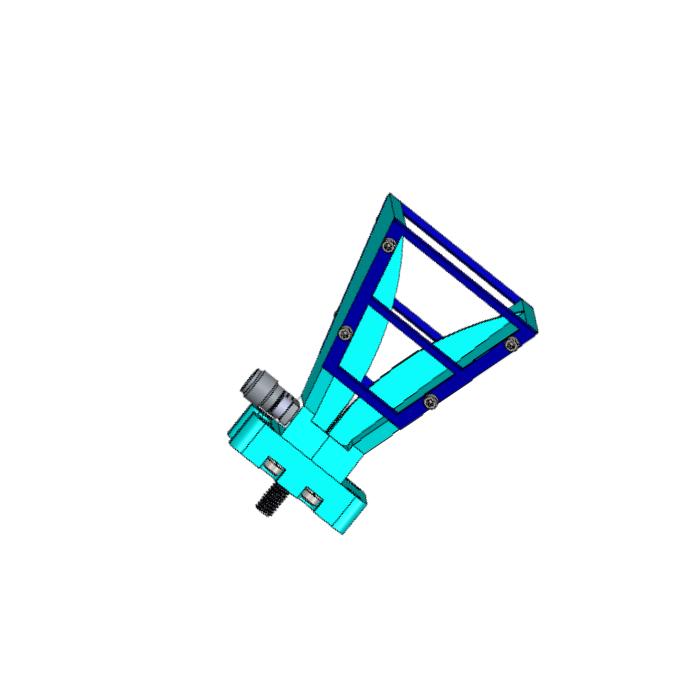

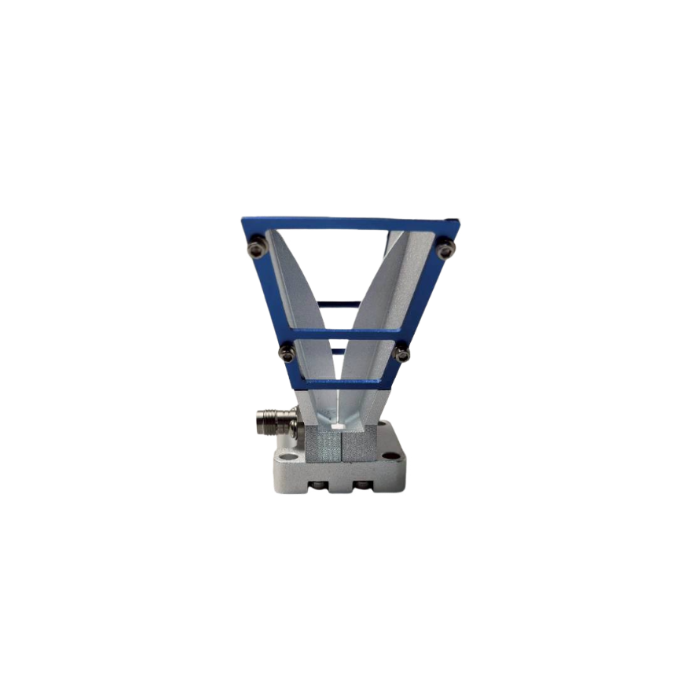

The HA-0563GH-VF is an ultra-wideband Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Covering the millimeter wave spectrum from 5 GHz to 63 GHz, it provides high directional gain ranging from 3 to 16 dBi with a typical VSWR of 2.0 (Max 3.0). Featuring an optimized aperture structure measuring 60.4 x 38 mm with a body length of 58.7 mm (66.2 mm base dimension), it is constructed from precision CNC-machined aluminum weighing only 70 g. Equipped with a high-performance 1.85mm (V-Female) coaxial connector and versatile mounting bracket options, this antenna provides an optimal measurement standard for 5G/6G millimeter-wave applications, broadband EMI/EMC testing, and precision chamber RF characterization.
Technical Specifications
| Frequency Range | 5 - 63 GHz |
| Antenna Type | Double Ridged Horn |
| Nominal Gain | 3 - 16 dBi |
| VSWR | Typical 2.0 (Max 3.0) |
| Polarization | Linear |
| Impedance | 50 Ω |
| Connector | 1.85mm (V-Female) |
Mechanical & Physical Data

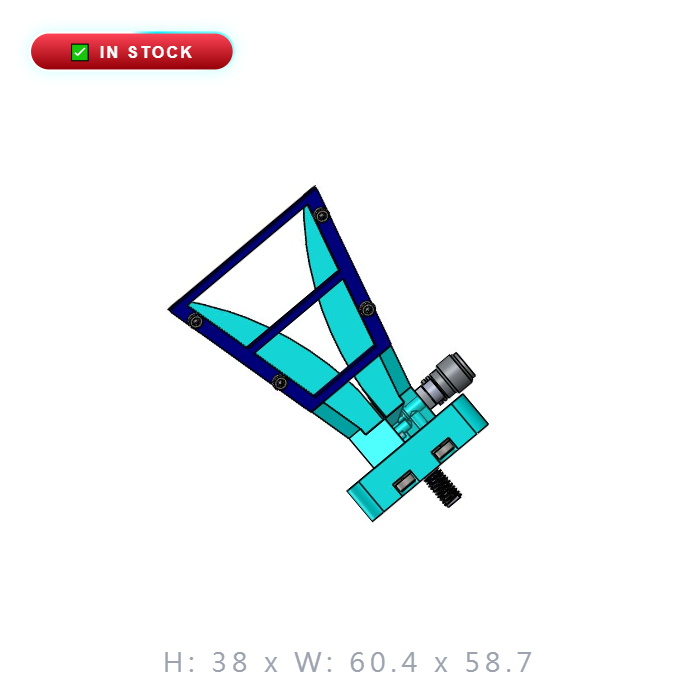

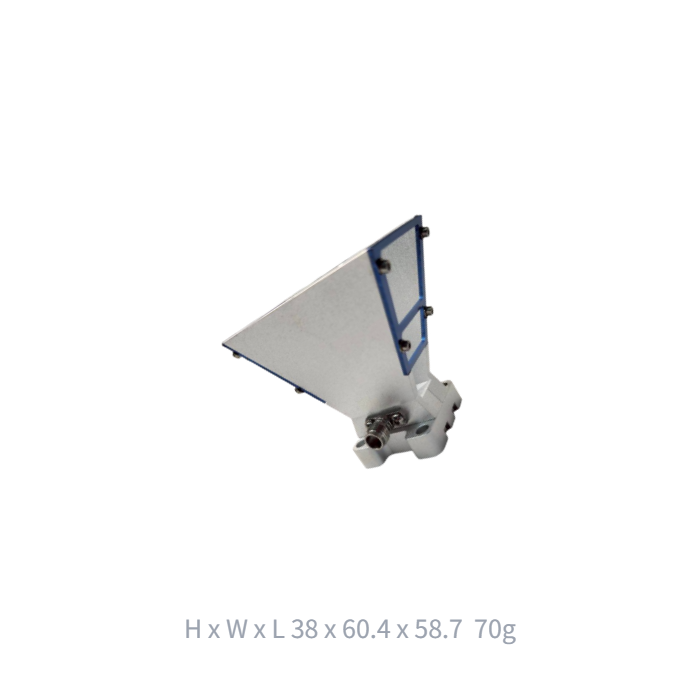

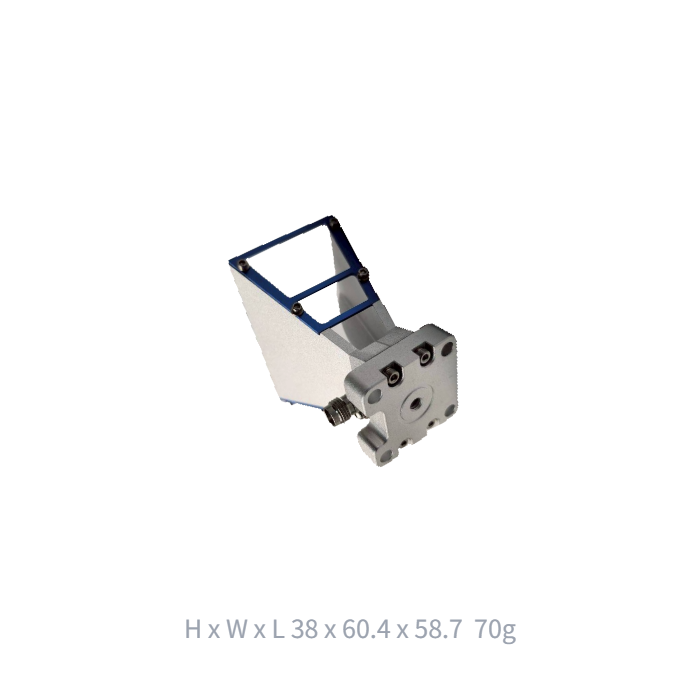

| Dimensions (W x H x L) | 60.4 x 38 x 58.7 mm (66.2 mm with Base) |
| Weight | 70 g (Bare Unit ~63.35 g) |
| Body Material | 6063-T5 Aluminum / Sandblasted Clear Anodized |

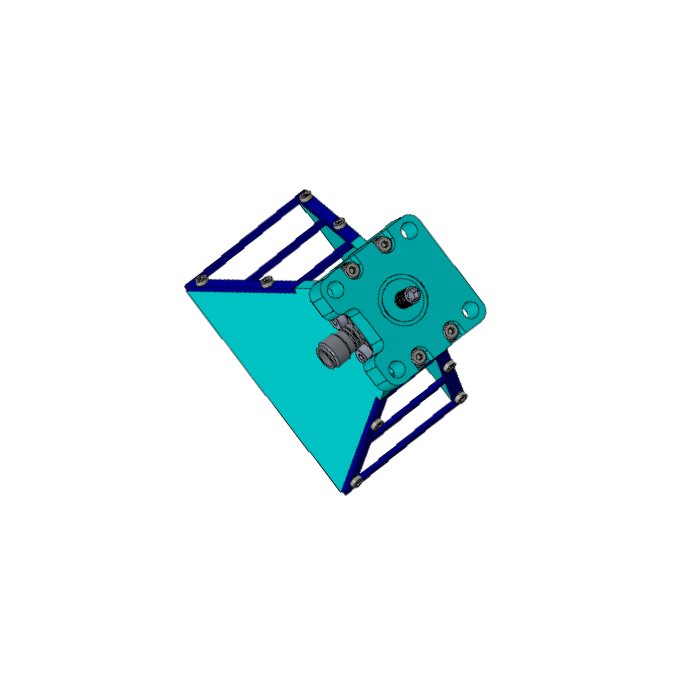

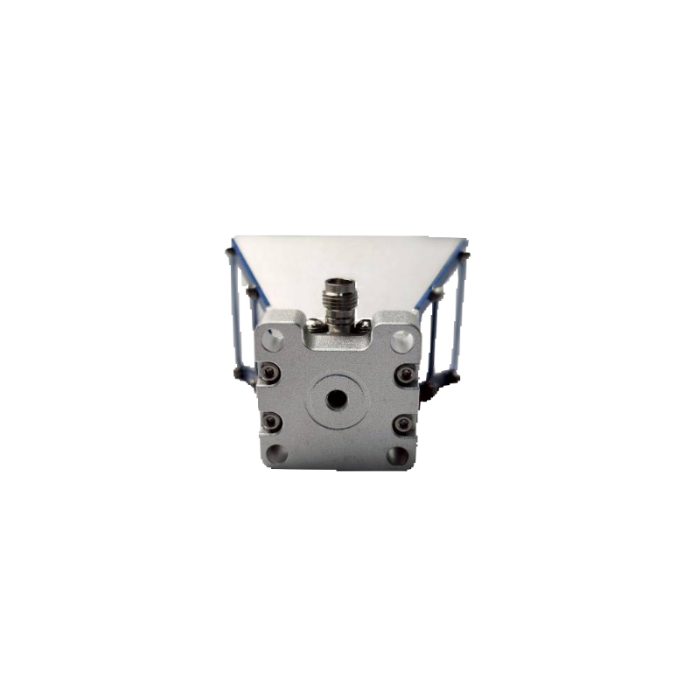

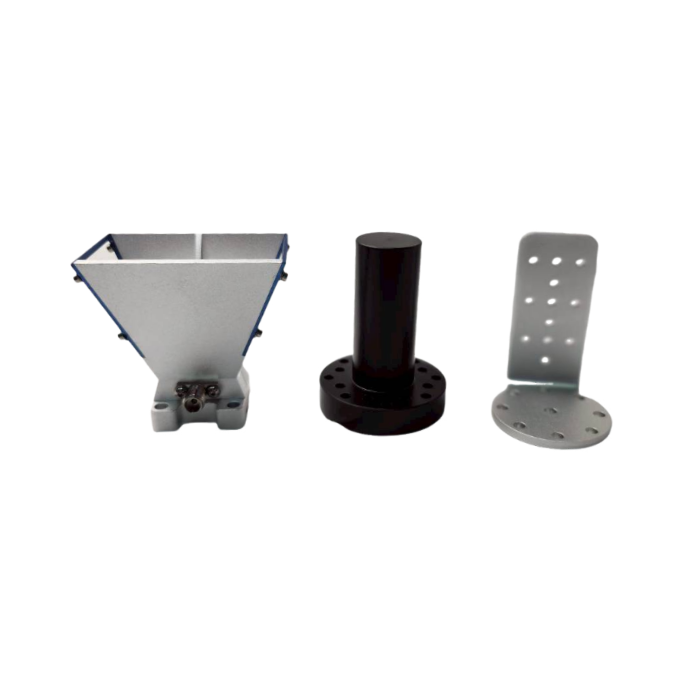

| Mounting Interface | 4 x Ø4.0 mm Holes / M4 Thread / Bracket Mount Options |
| Country of Origin | Taiwan |
Gain Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
Millimeter-Wave Spectrum
Seamless broadband coverage from 5 GHz to 63 GHz for advanced wireless, radar, and satellite testing.
Precision 1.85mm Connector
Equipped with a precision 1.85mm (V-Female) coaxial interface ensuring high return loss stability across mmWave bands.
Ultra-Compact & Lightweight

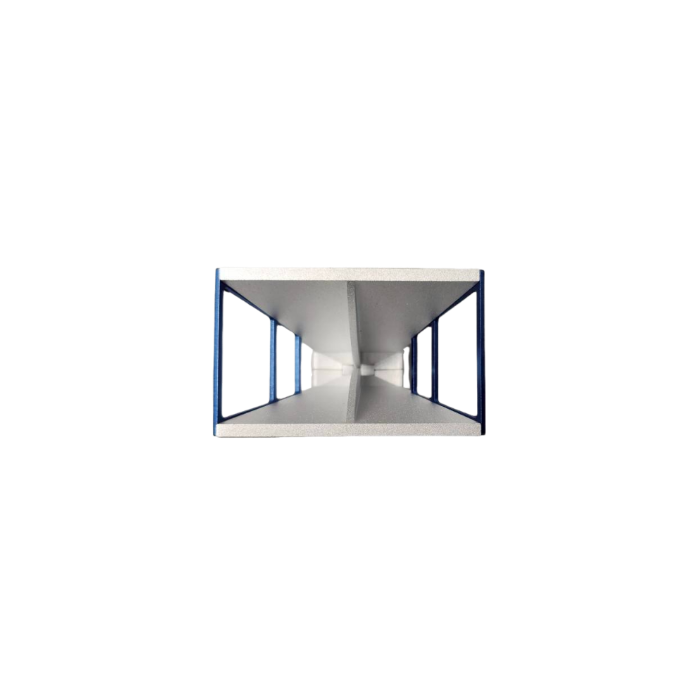

Compact 60.4 x 38 mm aperture profile weighing only 70 g for flexible integration in tight spaces.
Taiwanese Precision
Precision CNC machined from 6063-T5 aluminum, delivering rugged structural integrity and repeatability.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
