Description & Specification

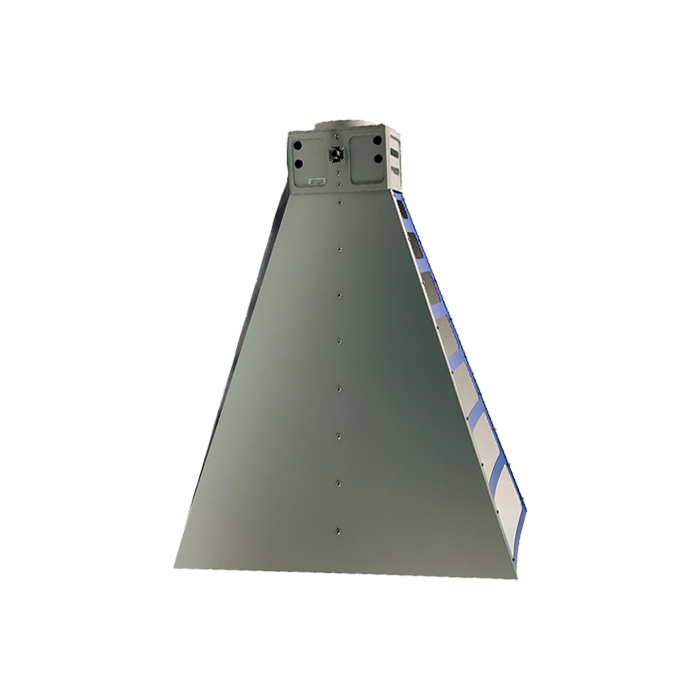

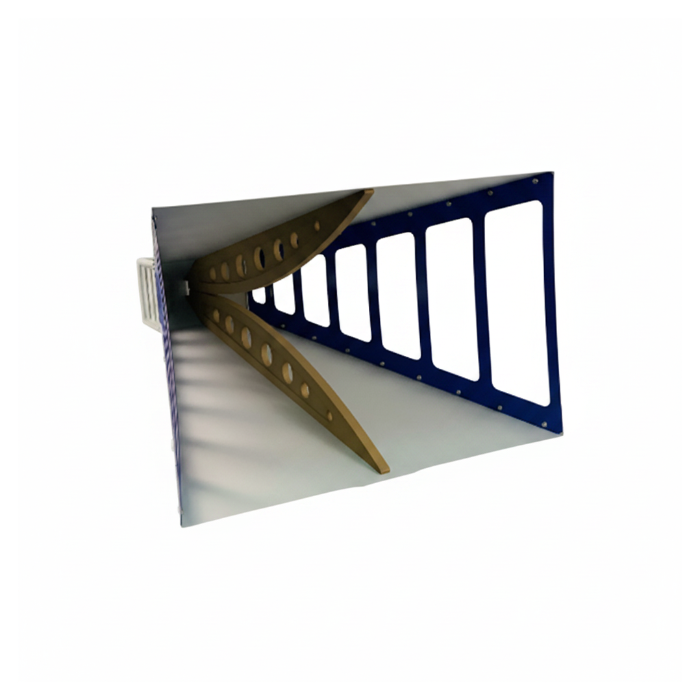

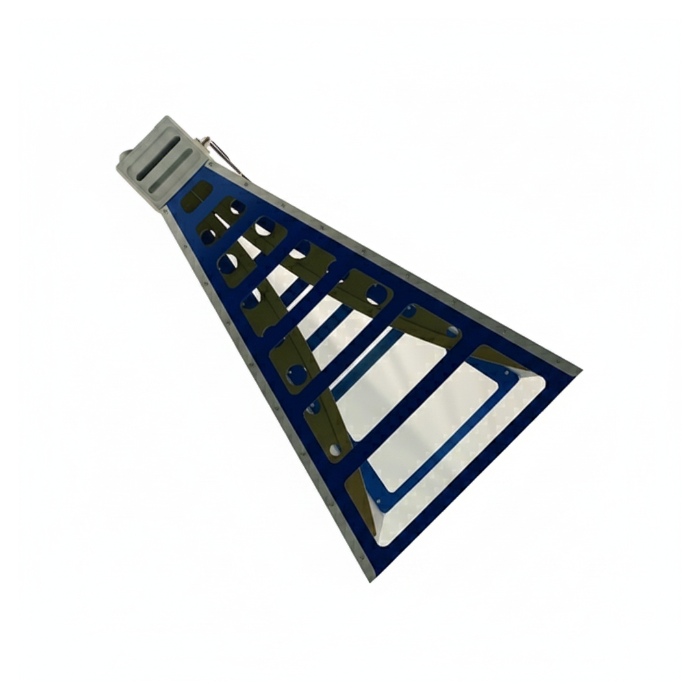

HA-03M06G-NF Horn Antenna
Double-Ridged Broadband Horn Antenna | 300 MHz – 6 GHz
The HA-03M06G-NF is a professional-grade Double-Ridged Broadband Horn Antenna engineered for mission-critical RF measurement and high-power verification cycles. Operating across a wide spectrum from 300 MHz to 6 GHz, this antenna delivers exceptional Signal Integrity with gain characteristics ranging from -6 dBi to 20 dBi. Constructed from aerospace-grade 6061 Aluminum alloy, it is an essential instrument for EMC/EMI testing, antenna calibration, radar detection, and high-fidelity surveillance systems requiring up to 800 Watts of power handling.
Electrical RF Performance
[Image of double ridged waveguide horn antenna radiation pattern]
| Frequency Range | 300 MHz - 6 GHz |
| V.S.W.R (Average) | 2.0 : 1 |
| Gain Profile | -6 dBi to 20 dBi |
| Antenna Factor | 24 - 35 dB/m |
| Max Power Handling | 800 Watts (Peak) / 500 Watts (Cont.) |
| Polarization | Linear (Vertical or Horizontal) |
| Beamwidth (-3dB) | H: 39° | V: 47° |
| Impedance | 50 Ohm |
| Front-to-Back Ratio | 20 dB |
Mechanical & Environmental Data

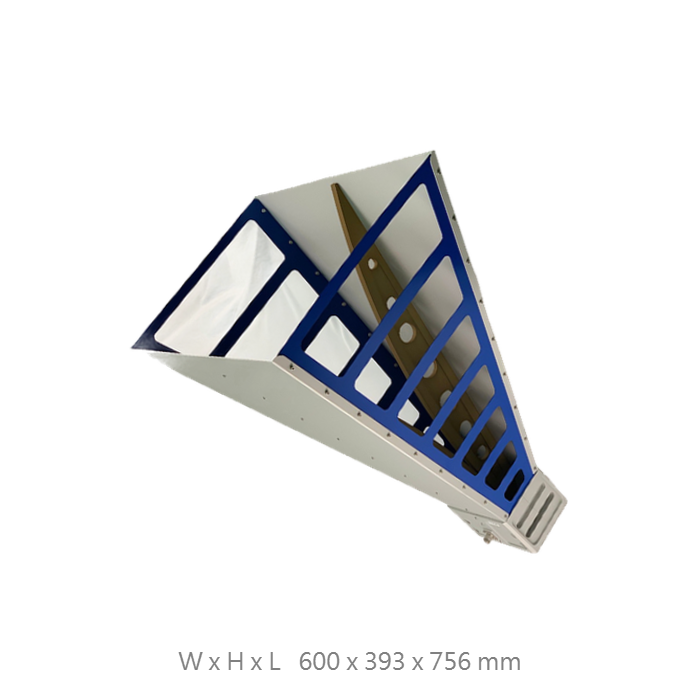

| Dimensions (L x W x H) | 756 x 600 x 393 mm |
| Net Weight | 9.0 kg (Antenna) + 0.3 kg (Accessories) |
| Material | Aerospace 6061 Aluminum Alloy |
| Connector Style | N-Female |
| Operating Temp | -10°C to +60°C |
| Compliance | RoHS, WEEE, CE, FCC |
| Manufacturing | Taiwan Design & Made in Taiwan |
Professional Tactical Features
High-Power Capacity
Engineered to handle up to 800W peak power, making it ideal for intensive Electronic Shielding and high-field strength immunity procedures.
Signal Security & Defense
Features integrated DC short lightning protection to safeguard high-value measurement instrumentation from electrical transients during field operations.
Superior Signal Integrity
Maintains low VSWR and uniform gain profiles across the 300MHz-6GHz range, ensuring traceable and repeatable results for antenna calibration.
Consolidated Performance
Supported by a comprehensive performance database, allowing for precise integration into advanced radar detection and spectrum analysis systems.
Inquire About Professional Measurement Solutions
Contact our engineering team for custom mounting options (Indexing Ring/L-Mount), individual calibration data, or technical support regarding broadband measurement setups.
