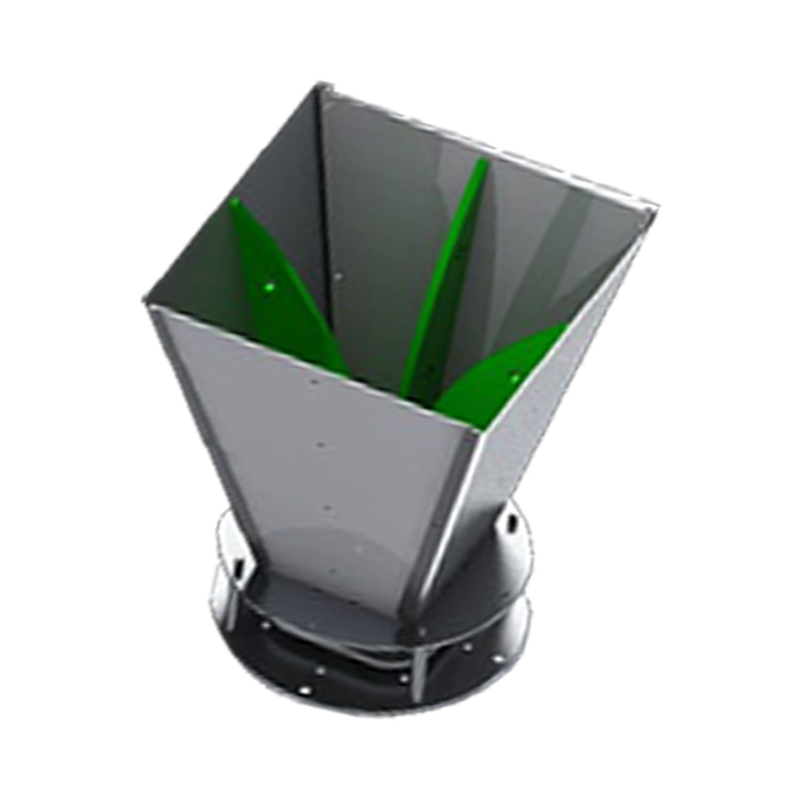

Quad-Ridged Horn Antenna

Quad-ridged Horn Antenna Applications:

  • - Antenna Measurement
  • - Electromagnetic Measurement
  • - Electromagnetic Compatibility Testing (EMC test)
  • - Ultra-wideband Radar Detection

Learn more: Summary table of Quad-Ridged Horn Antenna



300 MHz to 10 GHz Quad-Ridged Broadband Horn Antenna, SMA-Female Connector NEW
  • Model : HQ-300M10G01-SF
  • LxWxH :          368.8x359.5x577mm
  • Connector :      SMA-Femalex2
  • Styling :            Dual Polarization Horn
300 MHz to 8.5 GHz Quad-ridged Horn Antenna, SMA Female Connector NEW
  • Model : HQ-03M08G1-SF
  • LxWxH:          439.57x439x57x425.48mm
  • Connector :      SMA-Female
  • Styling:            Dual Polarization Horn
  • Frequency: 300MHz-6GHz
  • Gain: 3dbi to 14 dBi
  • LxWxH: 439x439x476mm
  • N.W.: 8.4 KG
  • Frequency: 300MHz-6GHz
  • Gain: 3dbi to 14 dBi
  • LxWxH: Contact us
  • N.W.: Contact us
  • Frequency: 300MHz-6GHz
  • Gain: 2dbi to 16 dBi
  • LxWxH: 576x367x367mm
  • N.W.: 8 KG
  • Frequency: 400MHz-8GHz
  • Gain: 3dbi to 18 dBi
  • LxWxH: 588x368x368mm
  • N.W.: 5.5 KG
  • Frequency: 700MHz to 10GHz
  • Gain: 3dbi to 18 dBi
  • LxWxH: 269x267x402mm
  • N.W.: 4.017 KG
HQ-0110G-SF (Original Model. : HQ-01G08G-NF)

1GHz to 10GHz Quad-Ridged Broadband Horn Antenna

View Details
  • Frequency: 1GHz - 10GHz
  • Gain: 3dbi to 18 dBi
  • LxWxH: 247x247x297mm
  • N.W.: 2.8 KG
  • Frequency: 2GHz to 8GHz
  • Gain: 3dbi to 18 dBi
  • LxWxH: 173x143x143mm
  • N.W.: 1.08 KG
