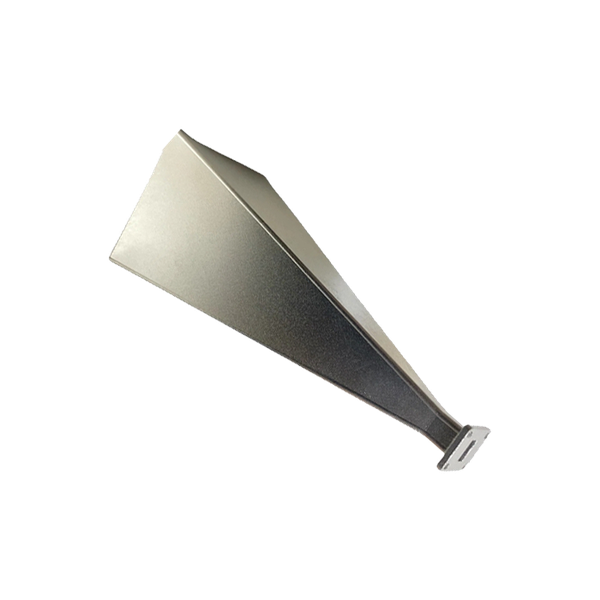

WR62 Waveguide Horn

  • Original Model No.: WI-062-A1-10
  • Waveguide: WR-62
  • Gain:10
  • Max Power (W): 500W
  • H-plane (-3db): 54 deg
  • E-plane (-3db):54 deg
  • Size (mm): 33.3x36x60
  • Weight (g): 28
  • Waveguide: WR-62
  • Frequency: 12.4 to 18GHz
  • Gain: 10 dbi
  • Max Power(W): 500W
  • Original Model No.: WI-062-A1-15
  • Waveguide: WR-62
  • Frequency: 12.4 to 18GHz
  • Gain: 15
  • Max Power(W): 500W
  • H-plane(-3db): 32 deg
  • E-plane(-3db): 31 deg
  • Size(mm): 35x50x60
  • Weight(g): 30
  • Waveguide: WR-62
  • Frequency: 12.4 to 18GHz
  • Gain: 15 dbi
  • Max Power (W): 500W
  • Waveguide: WR-62
  • Frequency: 12.4 to 18GHz
  • Gain: 15 dbi
  • Max Power (W): 500W
  • Original Model No.: WI-062-A1-20
  • Waveguide: WR-62
  • Frequency: 12.4 to 18GHz
  • Gain: 20 dbi
  • Max Power (W): 500W
  • H-plane(-3db): 19 deg
  • E-plane(-3db): 20 deg
  • Size (mm): 72x93x135
  • Weight (g): 105
  • Waveguide Flange: UBR UG-2664/U
  • V.S.W.R: 1.3
  • Material: Aluminum
  • Waveguide: WR-62
  • Frequency: 12.4 to 18GHz
  • Gain: 20 dbi
  • Max Power(W): 500W
  • Original Model No. : WI-062-A1-25
  • Waveguide: WR-62
  • Frequency:12.4 to 18GHz
  • Gain: 25
  • Max Power(W): 500W
  • H-plane(-3db): 10 deg
  • E-plane(-3db): 11 deg
  • Size(mm): 128x155x356
  • Weight(g): 600
  • Waveguide Flange: UBR UG-2664/U
  • V.S.W.R: 1.3
  • Material: Aluminum
