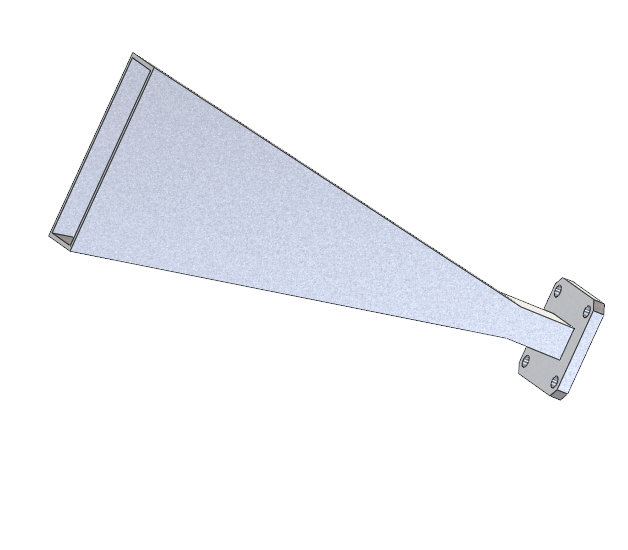

12.4 GHz to 18.0 GHz WR62 Standard Gain Horn Antenna
Model: WI-62-UBR-15 | 15 dBi Gain | Ku-Band Precision
The WI-62-UBR-15 is a high-performance Standard Gain Horn Antenna professionally engineered for Ku-band microwave applications within the 12.4 GHz to 18.0 GHz spectrum. Utilizing a standardized WR62 rectangular waveguide architecture and a precision-machined UBR UG-2664/U flange interface, it provides exceptional gain stability and pattern accuracy. This antenna is an essential radiation source for EMI/EMC testing, antenna range calibration, and mission-critical Signal Integrity verification in professional RF laboratory environments.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 12.4 GHz to 18.0 GHz |
| Waveguide Standard | WR62 / R140 / WG18 |
| Nominal Gain | 15 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H-Plane) | 78° |
| -3dB Beamwidth (E-Plane) | 16° |
| Maximum Power Handling | 500 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

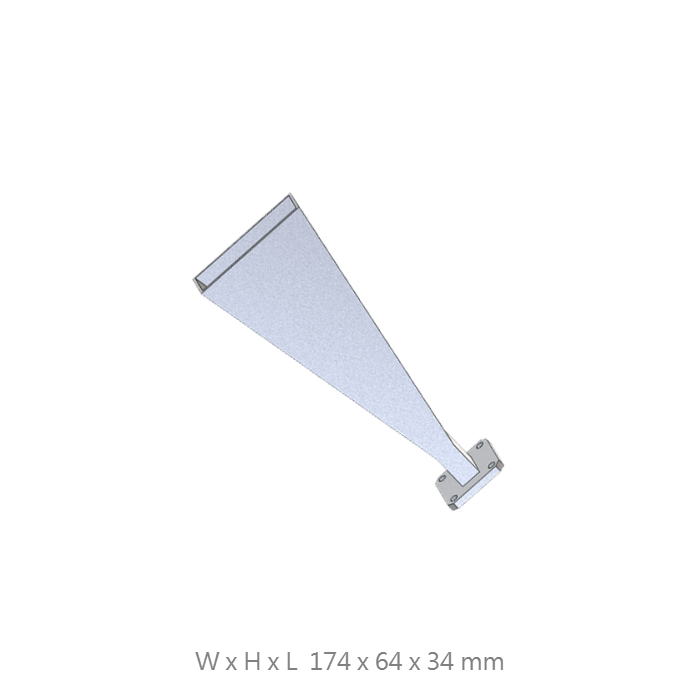

| Dimensions (L x W x H) | 174 x 64 x 34 mm |
| Net Weight | 80 g (Ultra-Lightweight Design) |
| Waveguide Flange | UBR UG-2664/U Style |
| Body Material | High-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical Features
Stable Gain Performance
Consistently maintains a 15 dBi gain across the entire Ku-band operating spectrum, ensuring highly accurate signal calibration and repeatable results for laboratory testing.
High-Power Capacity
Engineered to handle massive 500W CW power loads, making it the definitive choice for intensive electronic shielding procedures and high-field strength immunity verification.
Superior Signal Integrity
Optimized internal flare geometry ensures a low VSWR of 1.3, protecting high-value measurement instrumentation from reflected power in professional communication networks.
Precision Taiwan Build
At only 80g, this high-fidelity aluminum antenna ensures structural rigidity while remaining easy to deploy on laboratory positioners or tactical masts during field operations.
Request a Professional Quote
Contact our engineering team to obtain individual calibration data, radiation patterns, or technical support regarding Ku-band measurement setups.
