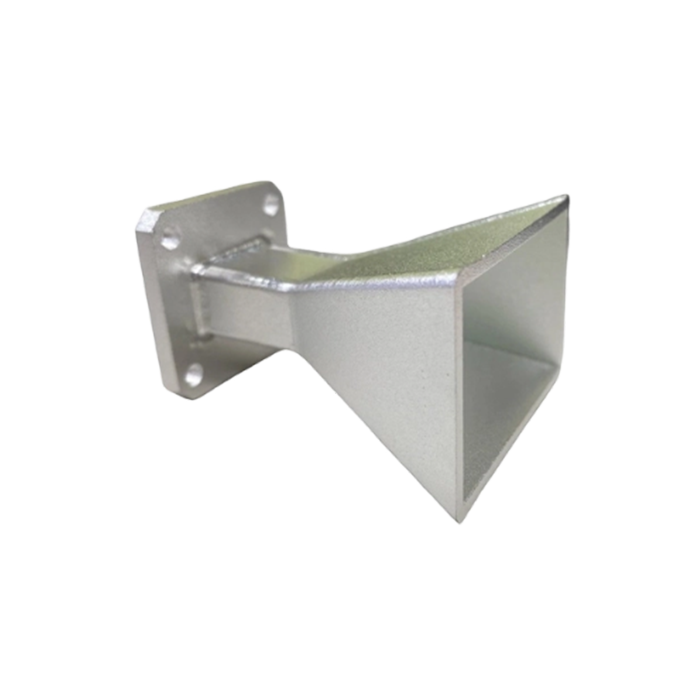

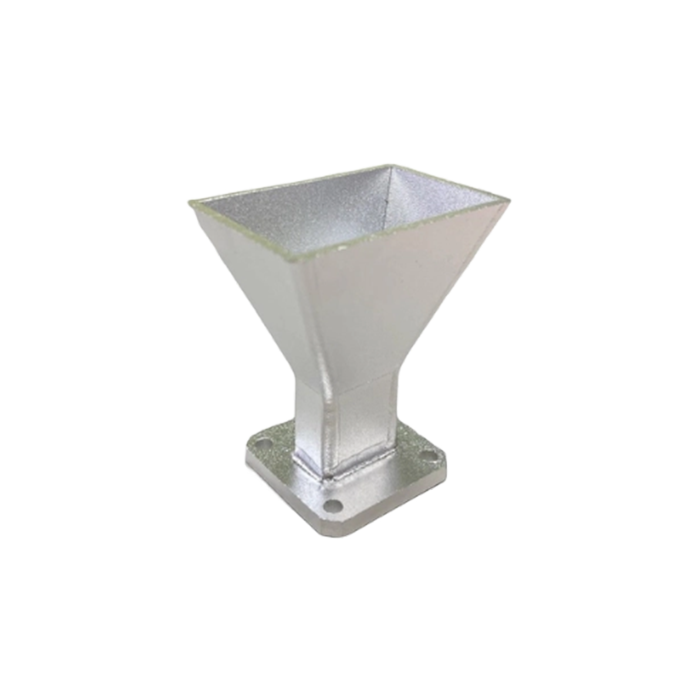

WR62 12.4 GHz to 18GHz 15dbi Waveguide Horn Input Flange: UBR UG-2664/U WR62 12.4 GHz to 18GHz 15dbi Waveguide Horn Input Flange: UBR UG-2664/U WR62 12.4 GHz to 18GHz 15dbi Waveguide Horn Input Flange: UBR UG-2664/U

Model No: WI-062-UBR-15

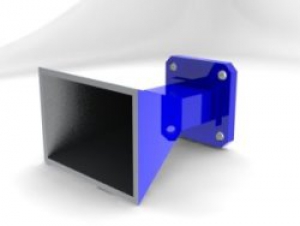

Mechanical Drawing: Download

  • Original Model No.: WI-062-A1-15
  • Waveguide: WR-62
  • Frequency: 12.4 to 18GHz
  • Gain: 15
  • Max Power(W): 500W
  • H-plane(-3db): 32 deg
  • E-plane(-3db): 31 deg

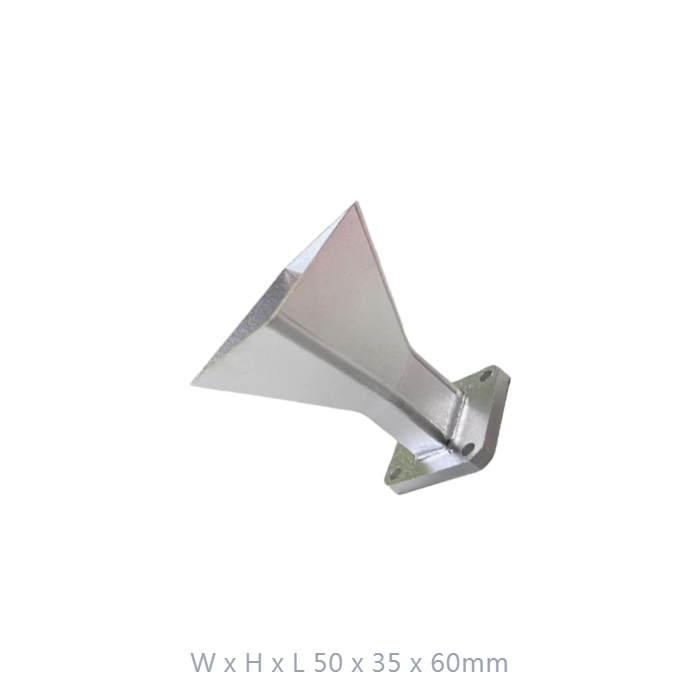

  • Size(mm): 35x50x60
  • Weight(g): 30
Quantity:
INQUIRY

Electrical Specifications

Frequency Range

12GHz to 18GHz

V.S.W.R

1.3 :1 (avg)

Antenna Type

Horn

Radiation

Directional

Polarization

Vertical or Horizontal

Vertical Beam-width

31 Deg

Horizontal Beam-width

32 Deg

Antenna Design

Waveguide input

Waveguide Type

WR62 / WG18 / R140

Flange

UBR UG-2664/U

Mechanical Specifications

Dimension (mm) 35x50x60

Antenna Weight (N/A)

30 g

Application

Indoor

Parts Material

Aluminum

Screw Holes

Diameter M4*4

Storage Temperature

-20 to +120

Operating Temperature

-20 to +80

Operating Humidity

10%~70% non-condensing

Storage Humidity

5%~50% non-condensing

Safety, Emission and other

RoHS
