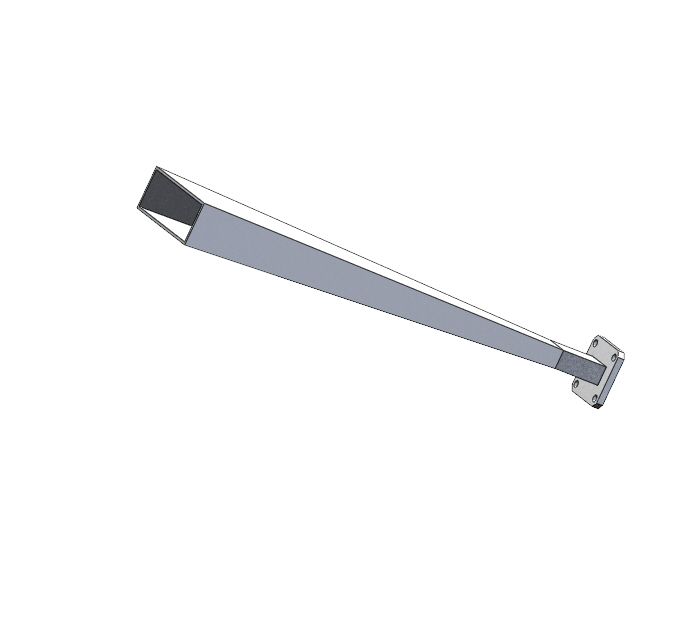

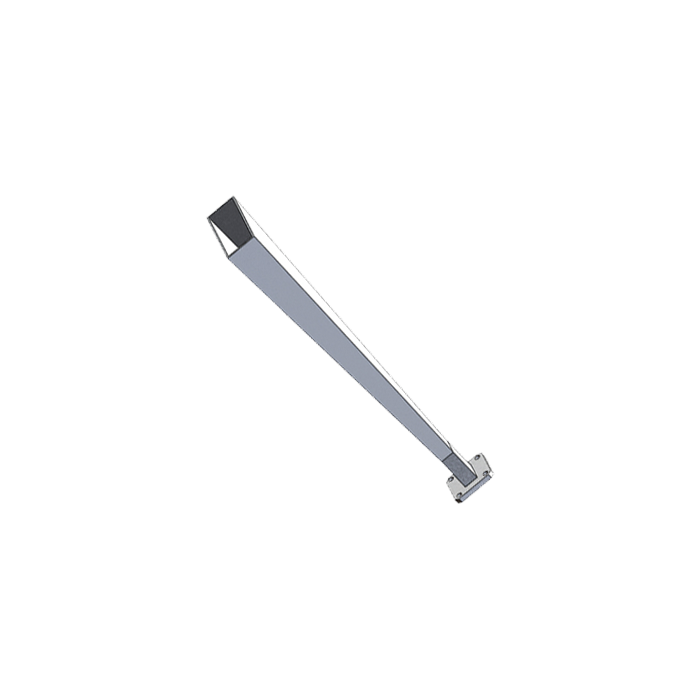

12.4 GHz to 18.0 GHz WR-62 Ku-Band Standard Gain Horn Antenna
Model: HS-062-UBR-15-NA | 15 dBi Gain | Sectoral Pattern Shaping
The HS-062-UBR-15-NA is a high-performance Ku-Band Horn Antenna professionally engineered for the WR-62 waveguide standard. Operating within the 12.4 GHz to 18.0 GHz spectrum, this antenna delivers a specialized radiation pattern with a consistent 15 dBi gain. Featuring a Direct Waveguide Input and standardized UG-2664/U (UBR) flange, it is a critical instrument for EMI/EMC testing, wide-vertical illumination, and precision measurement where transition stability and signal integrity are paramount.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 12.4 GHz to 18.0 GHz |
| Waveguide Standard | WR-62 / R140 / WG18 |
| Nominal Gain | 15 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H-Plane) | 11° (Narrow Focus) |
| -3dB Beamwidth (E-Plane) | 92° (Expansive Coverage) |
| Maximum Power Handling | 500 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

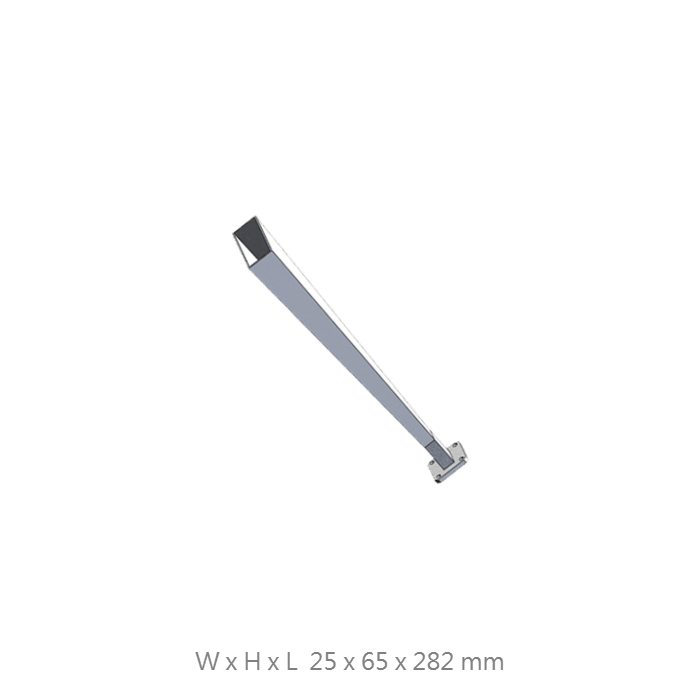

| Dimensions (W x H x L) | 25 x 65 x 282 mm |
| Net Weight | 140 g (Lightweight Design) |
| Waveguide Flange | UG-2664/U Style (UBR) |
| Body Material | High-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical Features
Expansive E-Plane Coverage
Specialized sectoral flare design yields a massive 92° beamwidth in the E-plane, ideal for broad-area illumination in EMC susceptibility testing and multi-point surveillance.
Direct Waveguide Integration
Engineered with a direct WR-62 interface for ultra-low-loss power transfer, eliminating transition losses associated with adapters in high-precision measurement setups.
500W High-Power Handling
Robustly engineered to handle 500W CW power loads while maintaining electrical consistency, suitable for high-intensity lab testing and industrial radiators.
Precision Pattern Stability
Optimized internal geometry ensures gain flatness and electromagnetic pattern stability across the entire 12.4-18.0 GHz operating frequency range.
Request a Professional Quote
Contact our engineering team to obtain individual radiation patterns, customized flange drilling, or specialized waterproof build requirements.
