Description & Specification

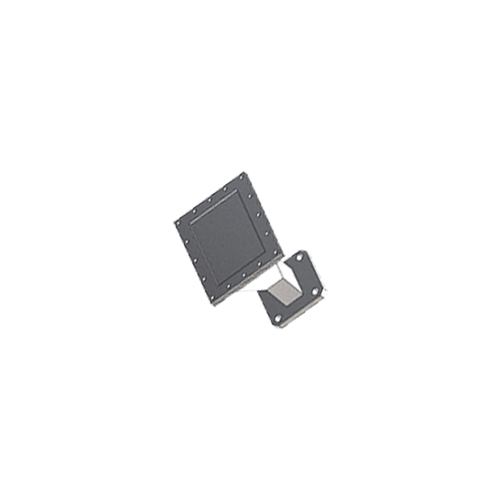

WR-62 Standard Gain Horn Antenna
Model: WI-62-UBR-15 | 12.4 - 18 GHz | 15 dBi | Ku-Band
The WI-62-UBR-15 is a high-precision WR-62 Waveguide Horn Antenna designed for Ku-Band microwave applications within the 12.4 GHz to 18 GHz spectrum. Optimized for professional Signal Security operations and high-fidelity laboratory testing, it delivers a consistent 15 dBi gain. Featuring a ruggedized aluminum body and a precision UBR UG-2664/U flange, this antenna ensures unwavering Signal Integrity and stability for advanced Signal Defense deployments and radar system measurements.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 12.4 - 18 GHz (Ku-Band) |
| Standard Gain | 15 dBi |
| Maximum Power Handling | 500 Watts (CW) |
| V.S.W.R (Max) | 1.3 : 1 |
| 3dB Beamwidth (H/E Plane) | 32° / 31° |
Mechanical & Construction
| Waveguide Standard | WR-62 (R140) |

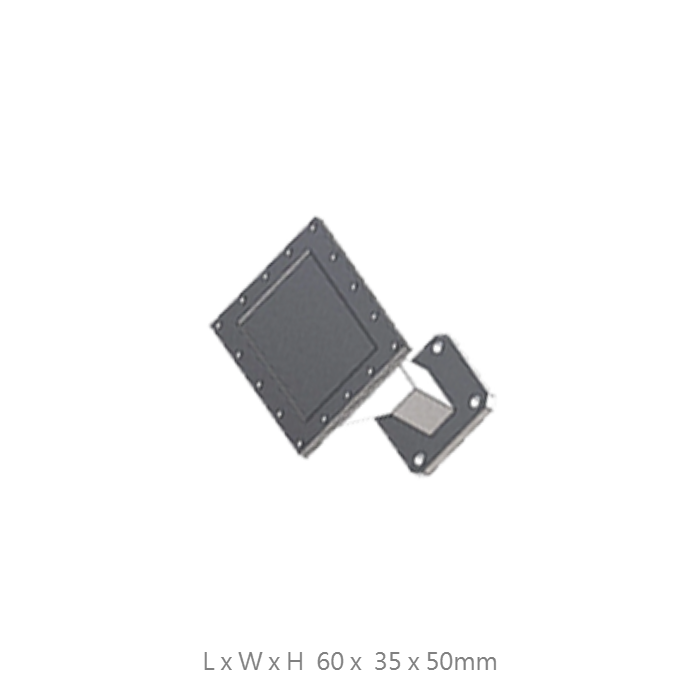

| Dimensions (L x W x H) | 60 x 35 x 50 mm |
| Net Weight | 30 g |
| Waveguide Flange | UBR UG-2664/U |
| Body Material | High-Grade Aluminum |
| Origin | Made in Taiwan (FT-RF) |
Get a Quote / Custom RF Solutions
