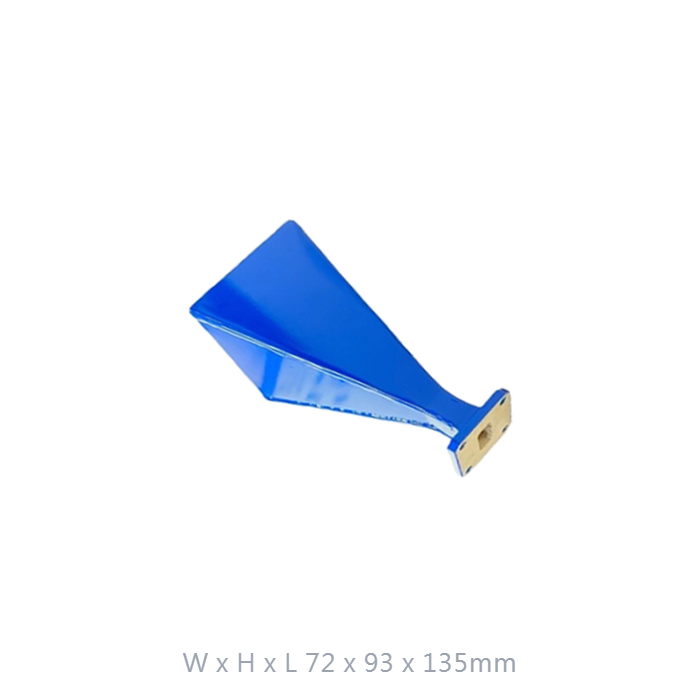

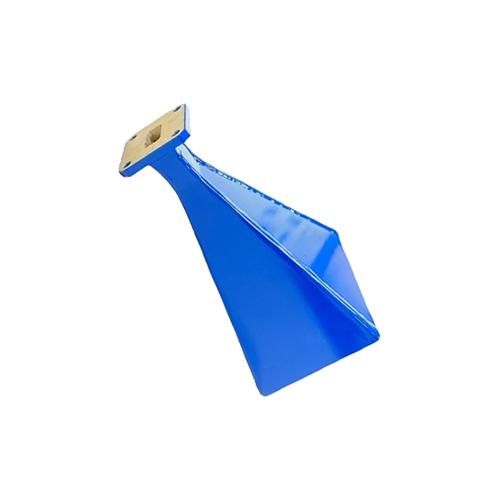

WR62 12.4 GHz to 18GHz 20dbi Waveguide Horn Input Flange: UBR UG-2664/U

WR62 12.4 GHz to 18GHz 20dbi Waveguide Horn Input Flange: UBR UG-2664/U

Model No: WI-062-UBR-20

Mechanical Drawing: Download

  • Waveguide: WR-62
  • Frequency: 12.4 to 18GHz
  • Gain: 20 dbi
  • In stock: 47 pcs
Quantity:
INQUIRY

  • Description & Specification

Electrical Specifications

Frequency Range

12GHz to 18GHz

V.S.W.R

1.3 :1 (avg)

Antenna Type

Horn

Radiation

Directional

Polarization

Vertical or Horizontal

Vertical Beam-width

14 Deg

Horizontal Beam-width

15 Deg

Antenna Design

Waveguide input

Waveguide Type

WR62 / WG18 / R140

Flange

 UBR UG-2664/U

Mechanical Specifications

Dimension (mm)

 72x93x135

Antenna Weight (N.W)

105

Accessories (N.W)

N/A

Application

Indoor

Parts Material

Aluminum

Screw Holes

Diameter M4*4

Storage Temperature

-20 to +120

Operating Temperature

-20 to +80

Operating Humidity

10%~70% non-condensing

Storage Humidity

5%~50% non-condensing

Safety, Emission and other

RoHS
